Marshall Electronics V-SG4K-3G Specifications

  • HDMI Version

    HDMI2.0 / DVI

  • HDCP Version

    HDCP1.4

  • HDCP On / Off Test

    Yes

  • Video Bandwith

    Up to 9.0GHz (3.0GHz per HDMI channel)

  • Color Depth

    Selectable 24, 30, 36, 48-bits

  • HDMI Timing / Formats

    61 presets including special choices for HDMI 2.0 4K 50, 60, 720P, 1080P - 3D and HDMI auto timing / format

  • HDMI User Defined Timing

    10 sets storable

  • SDI Output

    SD-SDI / HD-SDI / 3G - SDI

  • Number of Test Patterns

    44 (39 standard patterns, one 3D pattern and 4 user patterns)

  • Color Space / Sampling - HDMI

    RGB 444, YUV 444, YUV 422, YUV 420

  • Color Space / Sampling - SDI

    YUV 4:2:2

  • Audio Bit Depth

    Selectable 16, 20 or 24-bit

  • Audio Sample Rate

    Selectable 32, 44.1, 48, 88, 96, 176, 192KHz

  • Vertical Frequency Range

    Up to 120 Hz depending on format

  • Power Consumption (max.)

    4 Watts

  • Housing

    Metal

  • Dimension

    4.25 x 3.85 x 0.94" (108 x 98 x 24mm)

  • Weight

    1.10 lb (500g)

  • UPC Code

    801813187755

About Marshall Electronics V-SG4K-3G

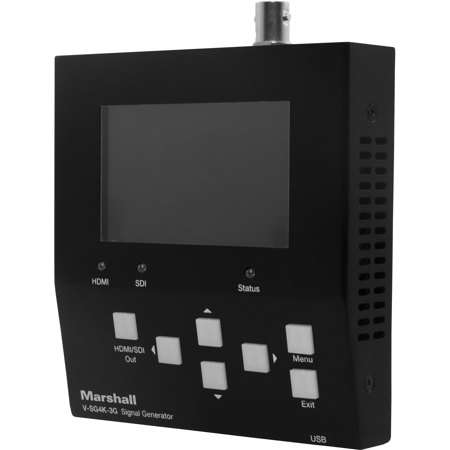

The V-SG4K-3G is a test pattern signal generator that can quickly and easily test HDMI and SDI video and audio equipment from out in the field. Compact, hand-held design makes it easy for testing out many different kinds of equipment while on the go, and it can generate up to 39 different test patterns plus four additional custom patterns. It has a 3-inch LCD screen for clear test pattern viewing, forward-facing buttons, and the ability to control through PC.

The V-SG4K-3G has a fast startup and an optional battery pack for increased portability, and can incorporate custom frame rates and resolutions when controlled through a PC. The V-SG4K-3G also comes equipped with EDID interface software.

Applications:
Production line quality assessment; studio equipment testing for both installers and users; television set testing by TV engineers or technicians; digital signage configuration tests with extenders, switches, splitters or video wall processors; and for discerning home theater users.

Marshall Electronics V-SG4K-3G Features

  • HDMI and SDI signal generator in one compact package
  • Generates 39 standard patterns plus 4 user loadable patterns
  • Large 3" LCD for pattern preview and menu operations
  • HDMI formats HD up to 1080p60 (4:4:4, 4:2:2 sampling) and UHD 60Hz (4:2:0 sampling) SDI formats up to 1080p
  • Generates Cinema frame rates 23.98 and 24.00
  • Quick check patterns for VR / 3D
  • Moving patterns quickly reveal dropped frames, judder, smear
  • Read, store, and offload EDID information from display devices
  • Confirm HDCP compliance
  • Software control app connects via USB or RS-232
  • 5-volt power supply included
  • Battery option available

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDMI and SDI signal generator in one compact package
  • Generates 39 standard patterns plus 4 user loadable patterns
  • Large 3" LCD for pattern preview and menu operations
  • Generates Cinema frame rates 23.98 and 24.00
  • Quick check patterns for VR / 3D
  • Moving patterns quickly reveal dropped frames, judder, smear

What's in the box:

  • V-SG4K-3G UHD 4K & 3G HDSDI Broadcast Test Signal Generator
  • 5-Volt Power Supply
  • Marshall Electronics 1 Year Limited Warranty
