Mackie Studio Bundle with CR3-X Monitors, Big Knob Studio Monitor Controller Specifications

CR3-X Monitors: Studio Monitor

CR3-X Monitors: Studio Monitor

Jump to...
  • Monitor Type

    Active 2-Way

  • Enclosure

    Bass-Reflex

  • Power Rating

    50 W Peak

  • Drivers

    LF Driver: 1x 3" (7.62cm) Polypropylene Cone
    HF Driver: 1x 0.75" (1.91cm) Silk Dome

  • Amplification

    1x Full-Range Amplifier: Class-D50 W Peak

CR3-X Monitors: Performance

Jump to...
  • Frequency Range

    70 Hz to 20 kHz (at -10 dB)
    80 Hz to 20 kHz (at -3 dB)

  • Maximum Sound Pressure Level (SPL)

    97 dB

  • Phase Adjustment

    None

CR3-X Monitors: Signal Processing

Jump to...
  • EQ

    None

  • Filters

    None

  • Parametric EQ

    None

CR3-X Monitors: Crossover

Jump to...
  • Crossover Frequency

    3 kHz

CR3-X Monitors: Connectivity

Jump to...
  • Audio I/O

    2x 1/4" TRS Balanced/Unbalanced Female Analog Input
    1x 2RCA Unbalanced Female Analog Input
    1x 1/8" (3.5mm) TRS Unbalanced Female Analog Input
    2x Push Terminal Unbalanced Female Analog Output
    1x 1/8" (3.5mm) TRS Unbalanced Female Analog Output

CR3-X Monitors: Power

Jump to...
  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • Power Consumption

    60 W

CR3-X Monitors: Environmental

Jump to...
  • Operating Temperature

    32 to 104°F (0 to 40°C)

CR3-X Monitors: General

Jump to...
  • Enclosure Material

    MDF

  • Mounting Points

    None

  • Dimensions (W x H x D)

    5.5 x 8.1 x 7.1" (14 x 20.6 x 18cm) (Each)

  • Weight

    7.8 lbs (3.5kg) (Pair)

Big Knob Monitor Controller/Interface

Jump to...
  • Inputs

    2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Inputs
    2x 1/4" TRS Balanced/Unbalanced Line Inputs
    1x 1/8" (3.5mm) TRS Unbalanced Stereo Input

  • Outputs

    2x 1/4" TRS Balanced/Unbalanced 2-Track Line Outputs
    4x 1/4" TRS Balanced/Unbalanced Monitor Outputs
    2x 1/4" TRS Unbalanced Headphone Outputs

  • USB I/O

    1x USB 2.0 Type-B

  • Resolution

    24-Bit / 192 kHz

  • Frequency Response

    20 Hz to 20 kHz (±0.5 dB, Unity Gain, +4 dBu Input)

  • Noise

    Mic Inputs to Outputs: < -125 dBu RMS, A-Weighted (150 ohms Terminated, 22 kHz Bandwidth)
    Line Inputs to Outputs: < -90 dBu RMS, Unweighted (150 ohms Terminated, 22 kHz Bandwidth)

  • THD + N

    <0.01% Unweighted (Unity Gain, 1 kHz at +4 dBu Input, 80 kHz Bandwidth)

  • Crosstalk

    < -60 dB at 1 kHz (Unity Gain, -1 dBFS Input)

  • Attenuation

    Muted: -60 dB
    Dim: -20 dB

  • Maximum Input Level

    +22 dBu

  • Maximum Output Level

    +22 dBu

  • Power Requirements

    100 to 240 VAC, 50/60 Hz, 0.75 A via Universal Power Supply

  • Dimensions

    6.4 x 9.9 x 3.2" (16.3 x 25.1 x 8.1cm)

  • Weight

    3.5 lbs (1.6kg)

EM-91C Microphone: General

Jump to...
  • Form Factor

    Stand/Boom Mount

  • Sound Field

    Mono

  • Operating Principle

    Pressure Gradient

  • Capsule

    1x Condenser

  • Polar Pattern

    Cardioid

  • Orientation

    Side Address

  • Circuitry

    Solid-State

  • Pad

    None

  • High-Pass Filter

    None

  • Tone Adjustment

    None

  • Indicators

    None

  • On-Board Controls

    None

  • Windscreen

    Built-In

EM-91C Microphone: Performance

Jump to...
  • Frequency Range

    20 Hz to 18 kHz

  • Maximum SPL

    134 dB SPL (1 kHz, 1% THD)

  • Impedance

    150 Ohms ± 30% at 1 kHz

  • Sensitivity

    -30 dBV/Pa at 1 kHz

  • Signal-to-Noise Ratio

    78 dB

  • Equivalent Noise Level

    16 dB A-Weighted

EM-91C Microphone: Connectivity

Jump to...
  • Output Connectors (Analog)

    1x XLR 3-Pin Male (on Mic)

  • Headphone Connector

    None

  • Number of Conductors

    2

EM-91C Microphone: Power

Jump to...
  • Operating Voltage

    48 V

EM-91C Microphone: Physical

Jump to...
  • Color

    Black

  • Mounting

    Shockmount (with Included Hardware)

  • Dimensions (Dia. x L)

    1.9 x 6.1" (4.83 x 15.49cm)

  • Weight

    0.46 lbs (0.21kg)

EM-89D Microphone: General

Jump to...
  • Form Factor

    Handheld / Stand/Boom Mount

  • Sound Field

    Mono

  • Operating Principle

    Pressure Gradient

  • Capsule

    1x Dynamic

  • Polar Pattern

    Cardioid

  • Orientation

    End Address

  • Circuitry

    Solid-State

  • Pad

    None

  • High-Pass Filter

    None

  • Tone Adjustment

    None

  • Indicators

    None

  • On-Board Controls

    None

  • Windscreen

    Built-In

EM-89D Microphone: Performance

Jump to...
  • Frequency Range

    50 Hz to 16 kHz

  • Impedance

    600 Ohms ± 30% at 1 kHz

  • Sensitivity

    -52 dBV/Pa at 1 kHz

EM-89D Microphone: Connectivity

Jump to...
  • Output Connectors (Analog)

    1x XLR 3-Pin Male (on Mic)

  • Headphone Connector

    None

  • Number of Conductors

    2

EM-89D Microphone: Physical

Jump to...
  • Color

    Black

  • Mounting

    Mic Clip/Stand Adapter (Included)

  • Dimensions (Dia. x L)

    2 x 7.3" (5.08 x 18.54cm)

  • Weight

    0.66 lbs (0.3kg)

  • UPC Code

    663961060515

About Mackie Studio Bundle with CR3-X Monitors, Big Knob Studio Monitor Controller

The Mackie Studio Bundle not only includes all the tools you need to create and mix professional recordings, it gives you room to grow. As the central hub of your setup, Big Knob Studio is your audio interface, monitor controller, headphone amp, talkback, and much more. Tons of inputs and outputs makes expanding your gear arsenal easy. The EM-91C Condenser Mic is great for capturing vocals in amazing detail while the EM-89D dynamic mic is versatile enough to capture even the loudest of sources. MC-100 headphones provide the clear sound and noise isolation you need when tracking. For editing or just hanging out, our much-loved CR3-X monitors deliver professional studio-quality sound.


- CR3-X 3" Creative Reference Multimedia Monitors -

Professional studio-quality sound

Plug and Play
• Choose which side of your desk gets the volume knob with the convenient speaker placement switch
• Convenient front panel volume knob with gives you on/off/volume control
• Plug your smartphone or other source into the 1/8" Aux input and listen instantly
• Front-facing headphone jack auto-defeats speaker output
• Flexible inputs - 1/4", 1/8", and RCA

Professional-grade components and design for optimized sonic performance


- Big Knob Studio Monitor Controller | Interface -

Professional source and monitor selection
• Choose between 3 sources and 2 monitor pairs
• Mono, mute and dim functions

Flexible 2x2 USB recording interface
• Two boutique-quality Onyx mic preamps including phantom power for condenser microphones
• High-resolution 192kHz / 24-bit recording and playback

Comprehensive feature set for professional studios
• Flexible source connections including convenient 1/8" input for your smartphone
• Dual headphone outs with independent level control
• Built-in talkback mic for easy communication with artists

Record and Produce Like a Pro
• The DAW Essentials Bundle for Waveform OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter
• Compatible with all major DAWs on Mac or PC


- MC-100 Professional Headphones -

• High-performance drivers ensure clear, accurate sound
• Comfortable ear pads and headband for hours of use


- EM-91C Large Diaphragm Condenser Microphone -

• Professional quality that's affordable
• Rugged construction
• Vocalists to instruments, voice-overs to ambiance, this mic does it all
• Cardioid polar pattern


- EM-89D Dynamic Vocal Microphone -

• Professional sound quality and rugged construction
• Excels both onstage performance and studio recording
• Great for vocals and instruments
• Cardioid polar pattern

Mackie Studio Bundle with CR3-X Monitors, Big Knob Studio Monitor Controller Features

  • CR3-X 3" Creative Reference Multimedia Monitors Features
  • Professional studio-quality sound
  • Plug and Play
  • Plug your smartphone or other source into the 1/8" Aux input and listen instantly
  • Front-facing headphone jack auto-defeats speaker output
  • Flexible inputs - 1/4", 1/8", and RCA
  • Included accessories
  • 1/8" to stereo RCA cable to connect computer output to speakers
  • 1/8" to 1/8" cable to connect a smartphone or media player
  • Speaker-to-speaker cable
  • Big Knob Studio Monitor Controller Features
  • Professional source and monitor selection
  • Choose between 3 sources and 2 monitor pairs
  • Mono, mute and dim functions
  • Flexible 2x2 USB recording interface
  • Two boutique-quality Onyx mic preamps including phantom power for condenser microphones
  • High-resolution 192kHz / 24-bit recording and playback
  • Comprehensive feature set for professional studios
  • Flexible source connections including convenient 1/8" input for your smartphone
  • Dual headphone outs with independent level control
  • Built-in talkback mic for easy communication with artists
  • (2) 1/4" TS cables included
  • MC-100 Professional Headphones Features
  • High-performance drivers ensure clear, accurate sound
  • Comfortable ear pads and headband for hours of use
  • Includes 1/4" adapter
  • EM-91C Large Diaphragm Condenser Microphone Features
  • Professional quality
  • Rugged construction
  • Vocals to instruments, voice-overs to ambiance, this mic does it all
  • Cardioid polar pattern
  • Included accessories
  • Shock mount
  • XLR cable
  • EM-89D Dynamic Vocal Microphone Features
  • Professional sound quality and rugged construction
  • Excels both onstage performance and studio recording
  • Great for vocals and instruments
  • Cardioid polar pattern
  • Included accessories
  • Mic clip
  • XLR cable
  • Zipper pouch

Key Features

  • CR3-X 3" Creative Reference Multimedia Monitors Highlights
  • Professional studio-quality sound
  • Big Knob Studio Monitor Controller Highlights
  • Professional source and monitor selection
  • MC-100 Professional Headphones Highlights
  • High-performance drivers ensure clear, accurate sound

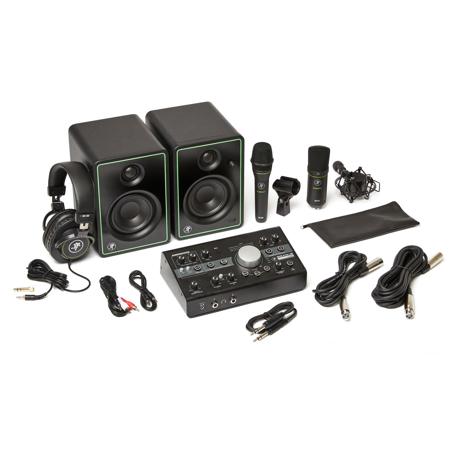

What's in the box:

  • CR3-X 3" Monitors
  • Big Knob Studio Monitor Controller
  • MC-100 Professional Headphones
  • EM-91C Large Diaphragm Condenser Microphone
  • EM-89D Dynamic Vocal Microphone
  • 1/8" to Stereo RCA Cable
  • 1/8" to 1/8" Cable
  • Speaker-to-Speaker Cable
  • 2x 1/4" TS Cables
  • 1/4" Adapter
  • Shock Mount
  • 2x XLR Cable
  • Mic Clip
  • Zipper Pouch
  • Mackie 1 Year Limited Warranty
