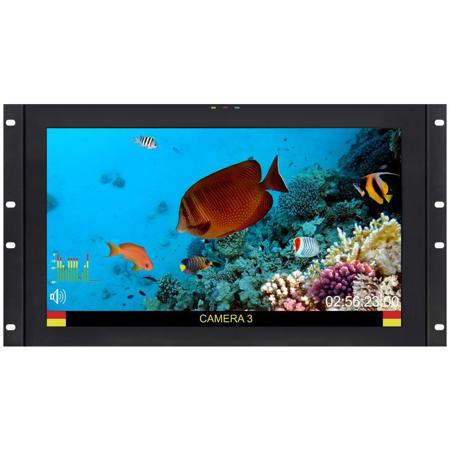

Marshall Electronics V-R173-IMD-3GTE 17.3" Full HD Rackmout Production Monitor
See all Marshall Electronics items

Marshall Electronics V-R173-IMD-3GTE 17.3" High Resolution Full HD Rackmout Production Monitor with Desktop Stand, 1920x1080

SKU: MAVR173IMD3G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Marshall Electronics QVW-1708: Picture 1 regular
Marshall Electronics Desktop Quad View 17" Native Resolution Monitor, 3G-SDI
$4,411.00$2,999.99
Marshall Electronics V-LCD173HR: Picture 1 regular
Marshall Electronics V-LCD173HR 17.3" Full HD LCD Monitor with Rack Mount
$1,137.90
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Marshall Electronics V-R173-IMD-3GTE Specifications

  • Number of Panels

    1

  • Panel Size

    17.3" Diagonal

  • Panel: Resolution

    1920 x 1080

  • Panel: Aspect Ratio

    16:9

  • Panel: Active Area

    381.888 x 214.812mm

  • Panel: Type

    LCD Panel

  • Panel: Brightness

    400 cd/m2

  • Panel: Contrast

    600:1

  • Panel: Color Gamut

    YUV, RGB

  • Panel: Viewing Angles

    H x V: 160 x 140 deg.

  • Panel: Backlight type

    LED

  • Panel: Adjustable Backlight

    No

  • Video Formats

    1080p/1080i/720p/625i/525i

  • Loss of Input Curtain

    Yes

  • Color Temperature

    D65, D55 and D93

  • IMD Functions

    Yes

  • Tally

    Yes

  • False Color

    No

  • Peaking Filter

    No

  • Pixel to Pixel

    Yes

  • Closed Caption

    Yes

  • Pre-set Gamma points

    Yes

  • Self-Sensing

    Yes

  • Audio Bars

    Yes

  • Embedded Audio with SDI

    Yes

  • Video Connectors

    3G-SDI with active loop-through - compatible with HDSDI/SDI

  • Control Inputs: Tally / GPI

    Yes

  • RS-485/422 with Loop Through

    Yes

  • Control Inputs: Ethernet

    No

  • Control Inputs: On Top

    Yes

  • User-Defined Function Buttons

    Yes

  • Control Inputs: RotoMenu

    Yes

  • Control Inputs: Pivot Angle

    Yes

  • Control Inputs: Handles/Rack Ears

    Yes

  • Power Voltage

    12 VDC

  • Power Consumption

    5.0A max at 12VDC (60W)

  • Power Switch

    Yes

  • Power Connecter

    2-Pin Twist Lock Male

  • Compliance

    CE approved

  • Vesa Mount Pattern

    75mm

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 120 deg. F / -20 to 49 deg. C

  • Dimensions (W x H x D)

    Rack Unit: 18.74 x 10.45 x 1.46" / 47.60 x 26.54 x 3.71cm

  • Weight

    Main Body: 8.20lbs / 3.72kg

4 Accessories for Marshall Electronics V-R173-IMD-3GTE 17.3" High Resolution Full HD Rackmout Production Monitor with Desktop Stand, 1920x1080

  • All Accessories (4)
  • Cables & Adapters (3)
  • Headphones (1)
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
$11.99
Recommended
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
$113.00
Comprehensive 25' Cat6 550 MHz Snagless Patch Cable, Black
Comprehensive 25' Cat6 550 MHz Snagless Patch Cable, Black
$13.59
Kramer Electronics DVI-D (M) to DVI-D (M) Dual Link Cable, 6'
Kramer Electronics DVI-D (M) to DVI-D (M) Dual Link Cable, 6'
$17.60

About Marshall Electronics V-R173-IMD-3GTE

The Marshall V-R173-IMD-3GTE Truck Edition 17.3" monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters and mobile units This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within the Marshall flat panel monitor, while saving precious rack space

A variety of features are readily available including on-screen Video Time Code, Closed Captioning, audio level bars Audio de-embedding via headphone or Line Out connectors The Marshall IMD displays also feature their RotoMenu easy menu navigation using a single control which avoids turning on the lights to see menu keys.

Marshall Electronics V-R173-IMD-3GTE Features

  • IMD - In Monitor Display Provides Tally and Text on-screen
  • Eliminates External Under Monitor Displays - Saves Rack Space and Complexity
  • Supports Image Video / TSL / MEI protocols
  • Truck Edition enhancements save rack space and simplify installation
  • Unique RotoMenu for "no fumbling" fast, direct, and easy menu navigation
  • High Resolution 1920 x 1200 display
  • High quality scaling / de-interlacing
  • Supports 167 million colors
  • 400 cd/m2 luminance produces enhanced image quality in varying light and viewing conditions
  • 600:1 contrast ratio
  • Three-color on-screen "soft" tally indicators (Red / Green / Yellow)
  • Three-color LED "hard" tally indicators (Red / Green / Yellow)
  • On-Screen Audio Bars Display up to 16 Channels
  • On-Screen Time Code and Closed Captioning Display
  • RS-422 / 485 port with loop-through for monitor control and IMD functionality
  • Field upgradeable firmware capability
  • Direct controls for brightness, contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode to check image detail
  • Blue-only Mode for color adjustment
  • Adjustment Setting Memory
  • Easy mounting with included rack ears, VESA mount or optional desk stand

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 600:1 contrast ratio
  • RS-422 / 485 port

What's in the box:

  • Marshall Electronics V-R173-IMD-3GTE 17.3" Full HD Rackmout Production Monitor with Desktop Stand
  • Power Supply
  • Rack Ears
  • Marshall Electronics 3 Year Limited Warranty (1 Year + 2 Year with Registration)
