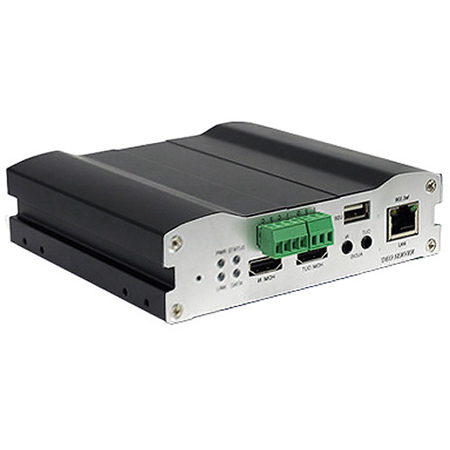

Marshall Electronics VS-102-HDI 2MP Full HD High Resolution Encoder/Decoder with HDMI

SKU: MAVS102HDI

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the primary function of the Marshall VS-102-HDI 2MP Full HD High Resolution Encoder/Decoder with HDMI?

The primary function of the VS-102-HDI is to encode and decode high-definition video and audio signals. It allows for real-time transmission of these signals over standard IP networks and the internet.

What kind of compression technology does the VS-102-HDI use?

The VS-102-HDI uses advanced H.264 and MJPEG compression technology. This allows for 50% more compression capacity over an existing IP network, ensuring optimal video transmission quality even in networks with limited bandwidth.

Can the VS-102-HDI be used for multi-location monitoring?

Yes, the VS-102-HDI supports multi-location monitoring. Other computers or VS-102-HDI decoders on the same network can access the audio and video feeds, making it ideal for use in expansive venues.

Can the VS-102-HDI be monitored over the internet?

Yes, when properly configured, the VS-102-HDI can be simultaneously monitored over the internet, adding an extra layer of flexibility to its usage.

What settings is the VS-102-HDI ideally used in?

The VS-102-HDI is ideally used in professional settings such as television studios or live event productions where high-quality video and audio signals are required.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Marshall Electronics VS-102-HDI Specifications

  • System Mode

    Encoder, decoder

  • Network Interface

    Ethernet 10/100Base-T on RJ-45 connector

  • Network Protocol

    TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP

  • Video: Standards

    Main Stream: H.264
    Secondary Stream: H.264/MJPEG

  • Video: Bitrate

    32 to 10240Kbps

  • Video: Resolution

    1920 x 1080/60i to 352 x 240/30fps, 18 resolution steps

  • Video: Frame Rates

    1 to 30fps

  • Video: Input

    1x HDMI type-A, HDMI RX
    1x BNC: Composite (Default)

  • Video: Output

    1x HDMI type-A, HDMI TX
    1x BNC: Composite (Default)

  • Video: Motion Detection

    Sensitivity adjustment

  • Audio: Standards

    G.711, AAC

  • Audio: Sample Rate

    G.711: 8kHz
    AAC: 32kHz

  • Audio: Data Rate

    G.711: 64Kbps
    AAC: 64Kbps, 128Kbps

  • Audio: Input

    1x Line-In (Mini-Stereo)

  • Audio: Output

    1x Line-Out (Mini-Stereo)

  • Serial: Port

    1x RS-232 (Terminal Block)
    1x RS-422/485 (Terminal Block)

  • Serial: Data Rate

    2400 to 115200bps

  • Sensor Input

    2x No contact (Terminal Block)

  • Alarm Output

    2x No contact on (Terminal Block)

  • Beep

    1x Buzzer 88dB Min

  • Reset Button

    1x Factory reset button

  • User Interface: System Status

    4x LED

  • Storage: Recording and Backup

    1x USB 2.0 port

  • Software: VS Manager/VMS-16 NVR

    Live Monitoring, recording, search and playback, backup

  • Power Consumption

    Max 9.6W

  • Power

    DC 12V/0.8A, PoE(Power over Ethernet): 802.3af

  • Operating Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Dimensions (W x D x H)

    134 x 125 x 35mm / 5.28 x 4.92 x 1.38"

  • Weight

    504g / 17.78oz

  • UPC Code

    801813156782

About Marshall Electronics VS-102-HDI

Make your professional video and audio transmission seamless with the Marshall VS-102-HDI 2MP Full HD High Resolution Encoder/Decoder with HDMI. This high-tech device is engineered to facilitate real-time transmission of HDMI or NTSC/PAL composite video signals, paired with bi-directional AAC encoded high-definition stereo audio across standard IP networks and the internet.

Crafted with a sleek and durable design, the VS-102-HDI is equipped with advanced H.264 and MJPEG compression technology, enhancing your streaming capabilities by allowing up to 50% more compression capacity over an existing IP network. This feature ensures that you receive optimal video transmission quality, even in environments where bandwidth is at a premium.

The compact VS-102-HDI is versatile and can be configured to function as a point-to-point talent monitoring system. It excels as an encoder, compressing and transmitting audiovisual data over a LAN to another VS-102-HDI unit, which may be situated in a green room or alternative location. The receiving unit acts as a decoder, restoring the compressed data back to its original high-definition state, ensuring that your content maintains its clarity and detail.

Furthermore, the VS-102-HDI supports multi-location monitoring, allowing other computers or VS-102-HDI decoders on the same network to access the audio and video feeds. This capability is ideal for expansive venues, enabling simultaneous monitoring in various areas such as dressing rooms, stage manager offices, or the box office.

For professionals in television studios, live event production, or any setting where high-quality video and audio are paramount, the Marshall VS-102-HDI stands out as an advanced solution. Its ability to be monitored concurrently over the internet adds an extra layer of flexibility, making it a superior choice for those seeking a robust and reliable encoder/decoder system.

Marshall Electronics VS-102-HDI Features

  • High Quality AV Encoder / Decoder (Selectable)
  • Full HD resolution 1080p Encoding / Decoding
  • Up to 30fps at 1920 x 1080 streaming
  • H.264/H.264 & H.264/MJPEG Dual Streaming
  • Two-Way Audio Communication
  • Mono Codec G.711 for Security applications
  • Stereo Codec AAC for Broadcast applications
  • HDMI Video Input / Output
  • Composite Video Input / Output
  • Audio Input / Output
  • Instant Recording to an optional USB drive (USB 2.0)
  • Supports DDNS (Dynamic Domain Name Server)
  • Built-in PoE (Power Over Ethernet: 802af)
  • RS-232 control built-in
  • RS-422/485 control built-in
  • 2 Sensor inputs
  • 2 Alarm outputs
  • Watchdog for system recovery
  • Integrated Video Motion Detection
  • Transmission of Video Data through FTP server
  • Wide Range of Video Bit Rate Control (32kbps to 10Mbps)
  • PSIA and ONVIF compliant

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture clear surveillance footage with the VS-102-HDI's high-resolution 2MP encoder/decoder.
  • Enjoy versatile video input options with HDMI and composite connections for your security system.
  • Remotely monitor your property using the VS Manager/VMS-16 NVR software for live surveillance.
  • Ensure reliable performance in diverse conditions with a wide operating temperature range.
  • Easily integrate audio with line-in/out ports, enhancing your security system's capabilities.
  • Utilize Power over Ethernet (PoE) for simplified installation and efficient power management.

What's in the box:

  • Marshall Electronics VS-102-HDI 2MP Full HD High Resolution Encoder/Decoder with HDMI
  • Power Supply (for Non-PoE Use)
  • Marshall Electronics 2 Year Warranty (1 Year Limited + 1 Year Extendable with Registration)
