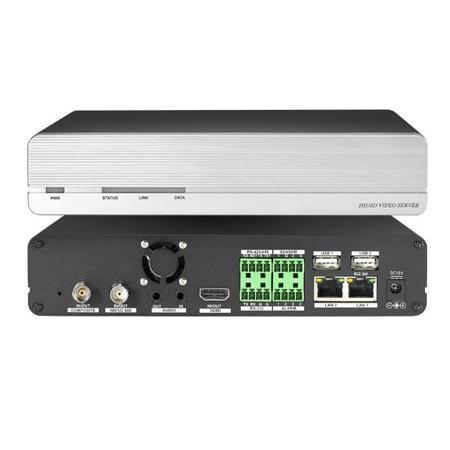

Marshall Electronics VS-104-3GSDI Full HD Video Encoder/Decoder
See all Marshall Electronics items

Marshall Electronics VS-104-3GSDI Full HD Video Encoder/Decoder with Stereo Embedded or Analog Audio, 60fps, H.264, MJPEG, PoE

SKU: MAVS1043GSDI
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Marshall Electronics VS-104-3GSDI Specifications

  • System Mode

    Encoder / Decoder

  • Video: Compression

    H.264, MJPEG

  • Video: Frame rate

    Max 60fps at 1920x1080

  • Video: Bitrate

    Primary: 32Kbps to 16Mbps
    Secondary: 32Kbps to 4Mbps

  • Video: Resolution

    352x240 to 1920x1080

  • Video: Streaming

    Primary: H.264
    Secondary x3: H.264 / MJPEG

  • Video: Burn-in OSD

    Multi-lingual

  • Video: Input/Output

    1x HDMI (Type A), Input/Output configurable
    1x Composite (BNC), Input/Output configurable
    1x 3G-SDI (BNC), Input/Output configurable

  • Audio: Compression

    G.711 / AAC

  • Audio: Sample rate

    G.711: 8KHz
    AAC: 32/44.1/48KHz

  • Audio: Bitrate

    G.711: 64Kbps
    AAC: 64 / 128Kbps

  • Audio: Streaming

    Full duplex

  • Audio: Input

    1x Line-In (stereo, mini-stereo type)

  • Audio: Output

    1x Line-Out (stereo, mini-stereo type)

  • Network: Interface

    2x Ethernet 10/100/1000Base-T (RJ-45)

  • Network: Protocol

    IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS

  • Network: Security

    Password protection, IP address filtering, HTTPS encryption

  • Network: Application Program Interface

    MEI Protocol/SDK, ONVIF, PSIA

  • Event sources

    Motion, Sensor input, Video loss, Client disconnection

  • Event actions

    Notification (E-mail), FTP, PTZ preset, Alarm control, Recording

  • Housing

    Aluminum

  • Certifications

    CE, FCC, KC, ROHS

  • External devices

    2x Sensor-In (dry contact, NO/NC)
    2x Alarm-Out (dry contact, NO)
    1x RS-232 port
    1x RS-422/485 port
    1x Buzzer (88dB min)

  • Edge storage

    2x USB 2.0 port

  • Power supply

    Min DC12V TBD
    PoE+ (Power over Ethernet): 802.3at

  • Power Consumption

    DC12V/PoE+ / Max: TBD

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F / 20 to 80% RH

  • Dimensions (W x L x H)

    8.46 x 7.25 x 1.73" / 215 x 184.2 x 44mm

  • Weight

    33.16oz / 940g

About Marshall Electronics VS-104-3GSDI

• Max. 60fps at 1920 x 1080
• Quad Streaming (H.264/H.264, H.264/MJPEG)
• MPEG2-TS Supported
• Two Way Audio Communication (G.711, AAC)
• 3GSDI, HDSDI, SDI, HDMI and CVBS I/O Supported
• Embedded Audio is supported in 3GSDI, HDSDI, SDI and HDMI, Stereo Analog is also provided
• Over 30 Types of PTZ Protocol Supported
• The VS-104-3GSDI can be used as either a Encoder or Decoder (User Selectable)
• PoE+ (Power Over Ethernet 802.3af)
• USB Recording
• Watchdog for System Recovery
• RS-232, RS-422/485 Communication
• Motion Detection
• 2CH Sensor Input / 2CH Alarm Output
• Adjustable Video Bitrate: 32Kbps to 16Mbps for Primary Stream, 32Kbps to 4Mbps for Secondary Stream (3 available)
• Adjustable Video Data Bandwidth: 2,400bps to 115,200bps
• Adjustable Serial Data I/O, 2,400bpsto115,200bps supplied
• Various Protocols: TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP
• SDK & API available on request

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Marshall Electronics VS-104-3GSDI Full HD Video Encoder/Decoder with Stereo Embedded or Analog Audio
  • Power Supply
  • Marshall Electronics Warranty
