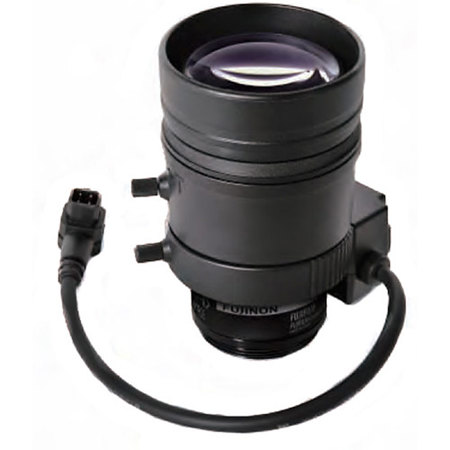

Marshall Electronics 15-50mm f/1.5 Varifocal Auto-Iris Lens for Fujinon Camera
See all Marshall Electronics items

Marshall Electronics 15-50mm f/1.5 Varifocal Auto-Iris Lens for Fujinon Camera

SKU: MAVSM1550A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Marshall Electronics 50mm f/1.5 Specifications

  • Applications

    1/2.7" format color camera

  • Focal Length

    15 to 50mm

  • Maximum Relative Aperture

    1:1.5

  • Iris Range

    f/1.5 to T360 (equivalent to f/360)

  • Image Size

    Diameter: 6.6mm (5.3 x 4.3mm)

  • Back Focal Length

    7.68mm (W) to 7.89mm (T) (in air)

  • Flange Focal Length

    12.5mm (in air)

  • Focus Range

    Infinity to 1m (from Front of Lens)

  • Field Angle

    Horizontal: 20 deg. 1' (wide), 6 deg. 9' (tele)
    Vertical: 15 deg. 5' (wide), 4 deg. 39' (tele)
    Diagonal: 24 deg. 47' (wide), 7 deg. 38' (tele)

  • Field of View at M.O.D

    Horizontal: 372mm (wide), 114mm (tele)
    Vertical: 279mm (wide), 86mm (tele)

  • Clear Aperture

    Front: Dia. 30.5mm
    Rear: Dia. 8.2mm

  • Exit Pupil Position

    -38 (W) to -37 mm (T) from image plane

  • Control

    Zoom: Manual (Op. angle 58.4 deg. )
    Focus: Manual (Op. angle 43.7 deg. )

  • Mount

    CS

  • Iris

    Auto (not incorporating amplifier)

  • Coil Resistance

    Drive Coil: 190Ohms +/-10%
    Damping Coil: 500Ohms +/-10%

  • Operating Current

    Maximum: 23 mA at 4 VDC

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Relative Humidity

    35 to 90%

  • Dimensions (Dia. x L)

    1.6 x 2.5" / 40.64 x 63.50mm

  • Weight

    2.8oz / 79.38g (Approximately)

About Marshall Electronics 50mm f/1.5

High image-quality monitoring with optical performance supporting 3 megapixels. Advanced design engineering and special optic glass adopted, best suited for color, Black & White and Day and Night cameras. WIDE 2.2mm, achieving a horizontal field angle of 121 degrees (when used on 1/3 cameras). Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Marshall Electronics 15-50mm f/1.5 Varifocal Auto-Iris Lens
  • Marshall Electronics 1 Year Limited Warranty
