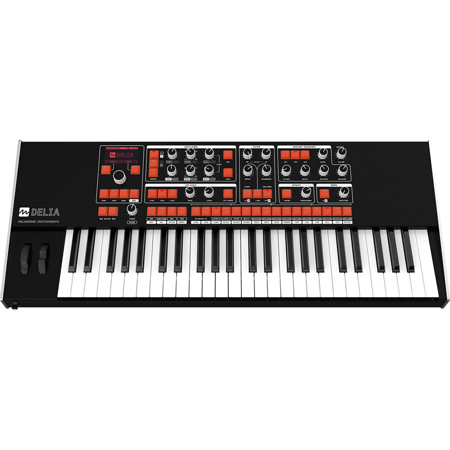

Melbourne Instruments DELIA 49-Key Motorized Morphing Polyphonic Synthesizer

SKU: MBIMIDEL4901 MFR: MIDEL4901
Earn VIP Reward Points

Key Features

  • Unleash your creativity with DELIA's 49-key synth-action keyboard, perfect for expressive performances.
  • Explore hybrid soundscapes with DELIA's versatile analog/digital sound generation capabilities today.
  • Craft intricate sequences using the built-in sequencer and arpeggiator for dynamic musical creations.
  • Enjoy rich, evolving textures with 12-voice polyphony and extensive modulation matrix options.
  • Connect to your studio with comprehensive MIDI and USB I/O, integrating DELIA seamlessly.
  • Shape your sound with dual filters per voice, offering both analog and digital ladder characteristics.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Melbourne Instruments DELIA Specifications

General

General

Jump to...
  • Type

    Desktop Synth Module

  • Sound Generation

    Analog/Digital Hybrid

  • Keyboard

    49 Full-Size Keys with Synth Action

  • Touch Sensitivity

    Yes

  • Aftertouch

    Channel/Mono Aftertouch

  • Expression Controls

    1x Pitch Bend
    1x Modulation

  • Transport Controls

    Yes: Record, Stop, Play

  • Display

    Monochrome LCD

  • Maximum Polyphony

    12 Voice

  • Multitimbrality

    2-Part

  • Built-In Effects

    Reverb
    Delay
    Modulation:Chorus

  • Performance Functions

    Arpeggiator, Layer, Sequencer, Split/Layer, Transpose

  • Built-In Speaker

    No

Synthesis

Jump to...
  • Oscillators

    4x Variable (Noise, Sawtooth, Sine, Square, Triangle, Wavetable, Virtual Analog)
    1x Variable Sub

  • Amplifiers

    2x VCA per Voice

  • Envelopes

    3x VCA/VCF/Assignable Envelope Generator per Voice: Attack, Decay, Sustain, Release

  • Filters

    Number of Filters:2 per Voice
    Characteristic:Analog Ladder, Digital Ladder
    Type:Low-Pass, High-Pass
    Slope:2-Pole/12 dB, 4-Pole/24 dB (LPF)
    Controls:Cutoff, Resonance, Drive

  • LFOs

    Number of LFOs:3x Global
    Waveforms:Sine, Sawtooth, Reverse Sawtooth, Triangle, Random

  • Modulation Matrix

    999-Slot per Patch (20 Sources / 40 Destinations)

  • Glide/Portamento

    Yes

Sequencing & Recording

Jump to...
  • Sequencer

    Yes

  • Arpeggiator

    Yes

Connectivity

Jump to...
  • Audio I/O

    2x 1/4" TRS Balanced Stereo Line Output (1 Stereo Pair)
    2x 1/4" TRS Balanced Line/Aux Output
    2x 1/4" TRS Balanced or Unbalanced Mono Line/Modular/Eurorack Input (Shared with CV Input)
    1x 1/4" TRS Unbalanced Stereo Headphone Output

  • Pedal Support

    No

  • MIDI I/O

    1x DIN 5-Pin Input
    1x DIN 5-Pin Output
    1x DIN 5-Pin Thru

  • CV/Gate I/O

    2x 1/4" TRS CV Input (Shared with Audio Input)

  • Control Voltage Level

    +/-10 V

  • Patch Points

    No

  • Sync I/O

    No

  • Network I/O

    No

  • USB I/O

    2x USB-A (Class-Compliant , Device/Controller Connection)
    1x USB-C (Host Connection)

  • Media/Memory Card Slot

    No

  • Bluetooth

    No

Compatibility

Jump to...
  • Included Software

    No

  • Mobile App Compatible

    No

  • Power Requirements

    AC/DC Power Adapter (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • AC/DC Power Adapter

    12 VDC at 8 A (Included)

Physical

Jump to...
  • Color

    Black / Orange

  • Included Accessories

    No

  • Dimensions

    31.9 x 12.6 x 5.5" (81 x 32 x 14cm)

  • Weight

    19.1lbs (8.7kg)

  • UPC Code

    725272730706

About Melbourne Instruments DELIA

When you seek a synthesizer that combines the warmth of analog with the precision of digital, the DELIA 49-Key Motorized Morphing Polyphonic Synthesizer stands out as a remarkable choice. Inspired by the innovative design of Melbourne Instruments' NINA, DELIA features a 49-key velocity and aftertouch-sensitive keyboard, offering musicians a dynamic and expressive playing experience. This bi-timbral polysynth introduces new multi-mode analog filters, high-pass and low-pass resonance control, a 3-stage overdrive, and endless modulation possibilities, making it a versatile tool for sound designers and performers alike.

DELIA's unique architecture blends true analog filters with virtual analog modeling, preserving the rich, overdriveable sound of analog ladder filters while leveraging a digital front end to manage modelled VCOs, wavetables, and high-pass filters. This powerful hybrid setup is further enhanced by DELIA's 12-note mode, which utilizes 12 complete oscillator banks into six filters, minimizing note stealing and maximizing its bi-timbral capabilities.

At the heart of DELIA's sound engine are its discrete multi-mode filters. The true analog low-pass filter delivers a sound that is both warm and aggressive, while the high-pass modeled ladder filter can be linked for bandpass and notch operations. With 12 and 24dB slopes and separate high/low pass resonance controls, DELIA offers extensive sound-shaping potential. The innovative 'LINK' function maintains a constant width bandpass, allowing for seamless manual control and modulation sweeps.

DELIA's filters are a blend of analog and digital components per voice. The analog section features a classic discrete transistor ladder filter with selectable 24dB or 12dB per octave operation, complemented by an analog variable overdrive circuit that can drive the filter from subtle warmth to intense distortion. The digital high-pass filter is a precise mathematical model of a 24dB ladder filter, ensuring a close match to the analog response, including overdrive and resonance characteristics.

The synthesizer's motorized control panel offers a seamless workflow with its 'MOD MODE,' automating the Modulation Matrix setup. As you navigate through the 20 MOD sources, each knob adjusts to reflect the active modulation amount, eliminating the need for constant manual adjustments. DELIA's A/B Morph function allows for real-time exploration and transformation of timbres, creating new sounds by morphing between A and B patches, with the entire modulation matrix included.

DELIA's built-in sequencer provides two modes: Step Sequencer and Phrase Looper. The Step Sequencer supports bi-timbral operation up to 16 steps, while the Phrase Looper can handle up to 2000 notes with no time or overdub limits. This flexibility allows for intricate layering and evolving soundscapes, enhanced by DELIA's A/B Morph capabilities.

Building on the legacy of NINA, DELIA incorporates features like 4-Quadrant Analog VCAs, Patch Morphing, Digital Effects, and a Digital Wavetable Oscillator. It expands on these with Sequencer Phrase Looping, Overdubbing, and an Effects Macro control for favorite effects parameters. Under the hood, DELIA boasts virtual analog oscillators with cross-modulation, 20 MOD sources, and over 40 MOD destinations, offering an expansive palette for sound creation. Two digital effects processors with classic presets can run in series or parallel, providing creative freedom.

The high-definition LCD screen offers waveform, wavetable, and envelope visualizers, delivering instant feedback and control over nearly every function. With the capacity to save over 16,000 presets, DELIA ensures that your creative potential is never limited by memory constraints.

Melbourne Instruments DELIA Features

  • True Analog Filters and stereo VCAs
  • 4 Oscillators per voice: VA Modelled VCOs, Wavetable, Noise/XOR/Aux
  • 6 Analog voice circuits with 12-note mode that retains 4 oscillators/voice
  • Unlimited Modulation Matrix - 20 sources x 40 destinations
  • 3 x LFOs with variable shapes: Sine, Triangle, Square, Ramp up, Ramp down, Random)
  • 3x Envelopes: VCA, VCF, AUX
  • Instant Preset Recall - every knob moves to position
  • Interactive Morphing with parameter isolation
  • Interactive Mod Matrix setup
  • Instant Layer Recall - panel changes to active patch
  • Multi LFO, Envelope and Filter Settings Recall
  • Effects Level and Macro Parameter Recall
  • Instant 'INIT' control panel reset
  • Analog Low Pass Ladder Filter
  • 3-stage Analog Overdrive
  • Virtual Analog High Pass Ladder Filter
  • Separate High Pass and Low Pass Resonance control
  • HP/LP filter 'LINK' mode for Band Pass/Notch control
  • Selectable 12dB and 24dB slope for LP Filter
  • 2x Effects Processors with parallel or series configuration
  • Stereo Digital Effects: Delay, Chorus, Reverb with classic Preset Algorithms
  • Extensive modulation matrix. 20 sources to 40 destinations. No bus count limitation
  • Morphable modulation settings
  • Quick to edit MOD mode. Select a source and dial in amounts instantly on control panel
  • All MOD amounts are through zero (bipolar)
  • MORPH is a available as a Modulation destination
  • Morph between A and B patches to create new timbres
  • Morph the entire patch including Modulation Matrix
  • 2 layers for 4 Timbres when combined with A/B Morph
  • Controllable via MIDI channel and note ranges
  • User selectable number of assigned voices per layer
  • Optional linked note ranges across layers for quick keyboard splits & layering
  • 16-step Programmable Polyphonic Sequencer
  • Phrase Looper with overdub/layering
  • Sequences and loops are saved with presets and recallable
  • 2 assignable line level outputs
  • Stereo main outputs with effects
  • Headphone output
  • 2 TRS Balanced Line or CV Inputs
  • CV +/-10V max. Analog gain and offset trim
  • 2x USB-A host ports
  • 1x USB-C device for DAW connection
  • In / Out / Through MIDI
  • Hackable Open Source software built on a powerful Raspberry Pi 4 running Elk Audio OS

Product Documents

User Manual

Key Features

  • Unleash your creativity with DELIA's 49-key synth-action keyboard, perfect for expressive performances.
  • Explore hybrid soundscapes with DELIA's versatile analog/digital sound generation capabilities today.
  • Craft intricate sequences using the built-in sequencer and arpeggiator for dynamic musical creations.
  • Enjoy rich, evolving textures with 12-voice polyphony and extensive modulation matrix options.
  • Connect to your studio with comprehensive MIDI and USB I/O, integrating DELIA seamlessly.
  • Shape your sound with dual filters per voice, offering both analog and digital ladder characteristics.

What's in the box:

  • Melbourne Instruments DELIA 49-Key Motorized Morphing Polyphonic Synthesizer
  • Power Supply
  • Melbourne Instruments 2 Year Limited Warranty
