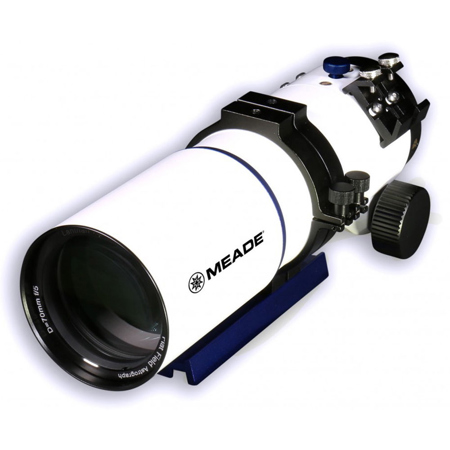

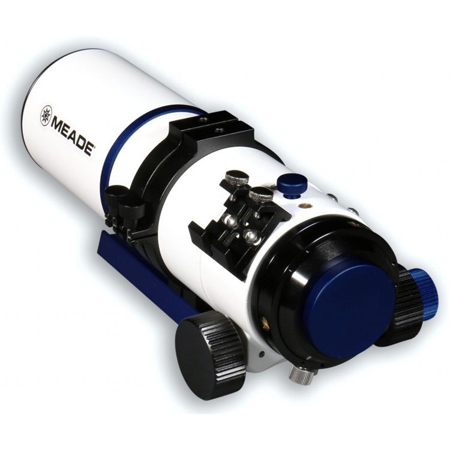

Meade Series 6000 70mm f/5 ED Astrograph Quadruplet APO Refractor Telescope

SKU: MD70QUADASTR

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ANUVRAT T : This is a quadruplet(Petzval design) refractor. The FOV is flat and there is no need to buy a field flattener. Also the image quality is one of the best for this price, better than WO Cat series.TIM H : Built specifically for astrophotography, all inclusive no flatner, needed zero chromatic aberration across the whole field, largest unit that will work with my star tracker

Reviews about this item

Review Summary

2021-02-15T11:51:49

Rated 5 out of 5

6000

Please help on focusing but the best product I ever had.

WILLIAM G.

Meade Refractor Telescope Specifications

  • Focus System

    Machined 2.5" Dual Speed Rack and Pinion. 10:1 Fine Focus Ratio

  • Number of Elements

    4

  • Clear Aperture

    70mm

  • Optical Design

    Apochromatic Refractor

  • Optical Coatings

    Fully Multi-Coated

  • Focal Length

    350mm

  • Focal Ratio

    f/5

  • Dovetail

    Vixen-Style

  • Dew Shield

    Yes

  • Dimensions

    12.25 x 4.5 x 5.5" (31.12 x 11.43 x 13.97cm)

  • Weight

    4.5 lbs (2.04kg)

  • UPC Code

    709942999068

About Meade Refractor Telescope

FEATURED REVIEWS

6000

By WILLIAM G.

Please help on focusing but the best product I ever had.

Meade Series 6000 70mm Astrograph Quadruplet APO Refractor. For crisp wide field observing and imaging, nothing can beat a true quadruplet-element Apochromatic Refractor (APO). Meade Series 6000 ED APO Triplets are among the finest available optically at any price. This impressive 70mm, f/5 refractor has a focal length of 350mm, making it ideal for observing and advanced astrophotography. Features a fully multi-coated quadruplet objective lens made from the highest quality ED (extremely low dispersion) glass for outstanding contrast and sharpness as well as near zero detectable chromatic aberration or "color fringing".

The fully illuminated image circle is 42mm and will cover a 35mm full frame sensor. Features a super precise dual speed 2.5" Rack and Pinion focuser with 10:1 gear reduction for ultra fine focus control. Standard equipment also includes a fully extendable dew shield and an aluminum hard carry case to protect your investment when not in use. Also includes aluminum front dust cover for objective lens. Product carries full one year Meade limited factory warranty.

Meade Refractor Telescope Features

  • D= 70mm. F= 350mm. f/5 Astrograph Refracting Telescope
  • ED Optical Glass (Extremely Low Dispersion)
  • Fully Illuminated Image Circle: 42mm
  • Aluminum Hard Carry Case Included

What's in the box:

  • Meade Series 6000 70mm f/5 ED Astrograph Quadruplet APO Refractor Telescope
  • 2.5" Dual-Speed 10:1 Rack & Pinion Focuser
  • Mounting Rings with Vixen-Style Dovetail
  • Dew Shield
  • Aluminum Hard Carry Case
  • Dust Cover
  • Meade 1 Year Limited Warranty
