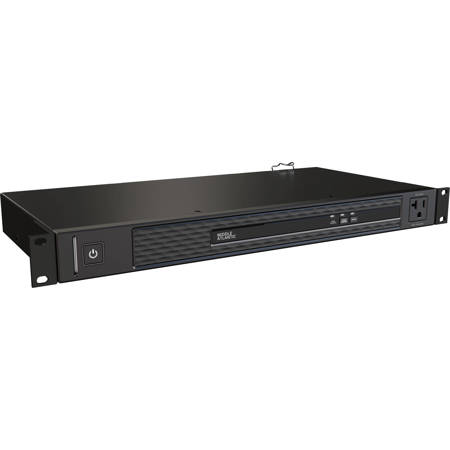

Middle Atlantic NEXSYS 20A 9-Outlet Rackmount PDU with Series Surge Protection

SKU: MDAPDX920R MFR: PDX-920R
Earn VIP Reward Points

Key Features

  • Safeguard your valuable equipment with multi-stage MOV surge protection.
  • Get reliable power distribution with this Middle Atlantic 9-outlet PDU.
  • Optimize rack space using this space-saving 1U rackmount power supply.
  • Enjoy a generous 9-foot cord for flexible placement with this power cord.
  • Ensure seamless operation with a robust 20A power capacity for your devices.
  • Benefit from UL Listed certifications, ensuring safety and reliability always.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$47.99

2 Year

$84.99

3 Year

$129.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Middle Atlantic NEXSYS 20A Specifications

  • AC Voltage Input

    120 VAC

  • AC Voltage Output

    120 VAC

  • Amps

    20 Amp

  • Rack Units

    1 RU

  • Control Type

    Contact Closure

  • Isolated Ground

    No

  • Outlet Count

    9

  • Plug Type

    NEMA 5-20P

  • Receptacle Type

    NEMA 5-20R

  • Special Features

    NEXSYS PDU

  • Surge Protection Type

    Multi-Stage MOV

  • Certifications

    UL Listed

  • Cord Length

    9' (2.7m)

  • Dimensions (W x D x H)

    19 x 8.75 x 1.75" (48.3 x 22.2 x 4.4cm)

  • UPC Code

    656747396250

About Middle Atlantic NEXSYS 20A

The NEXSYS PDUs are built on a promise that we've kept for over two decades - more than half the life of the company - that our products are designed, engineered, and built for AV. Every NEXSYS rackmount PDU is available in 15A and 20A and always have surge and voltage protection making it easy to select the right PDU for the job. Still need more? Each NEXSYS rackmount PDUs can be controlled remotely via contact closure. Just choose NEXSYS.

NEXSYS Features & Benefits
• Multi-stage MOV surge protection
• 3 stages of surge protection
• Visual Indicators of surge status on front panel
• Be in the know. Remote notification of surge status via remote contact closure

Worried about the under/over voltage?
Don't. With the selectable on/off voltage protection from the front of the unit, it gives the option to protect sensitive equipment from over/under voltage scenarios.

If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.

IEC Inlet:
Allows for cleaner cable management by selecting your desired length of power cord. A standard 9' cord is included with all models.

Tired of blocked outlets?
You pay for 8 outlets and we think you should be able to use all 8 outlets! The rear outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets.

Middle Atlantic NEXSYS 20A Features

  • Multi-stage surge protection with front panel and remote status indicators
  • Selectable over/under voltage protection with auto shutoff and recovery
  • Rear outlets spaced for bulky plugs-no more blocked outlets
  • Includes 9' power cord with IEC inlet for cleaner cable management

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Safeguard your valuable equipment with multi-stage MOV surge protection.
  • Get reliable power distribution with this Middle Atlantic 9-outlet PDU.
  • Optimize rack space using this space-saving 1U rackmount power supply.
  • Enjoy a generous 9-foot cord for flexible placement with this power cord.
  • Ensure seamless operation with a robust 20A power capacity for your devices.
  • Benefit from UL Listed certifications, ensuring safety and reliability always.

What's in the box:

  • Middle Atlantic NEXSYS 20A 9-Outlet Rackmount PDU with Series Surge Protection
  • 9' IEC-320 C14 to NEMA 5-15P Power Cord
  • Middle Atlantic 3 Year Limited Warranty
