Review Summary
Advanced Coma-Free
406.4mm (16")
4064mm; f/10
950X (16")
heavy-duty fork type; double-tine
included (progressive tension) in All models
included (4-speed) All models
included (16-channel GPS receiver) All models
1-arc min. All models
included (147,541 object database) All models
None
n/a
RA and Dec: 0.01x to1.0x sidereal, variable in0.01x increments; 2x, 8x, 16x, 64x, 128x sidereal; 1°/sec. to 8°/sec., variable in 0.1° increments All models
sidereal, lunar, or custom-selected from 2000 incremental rates All models
Pyrex Glass Grade A
water white glass
xxx lbs.
xxx lbs.
Tripod NOT included in this model version
Yes (this version)
709942500684

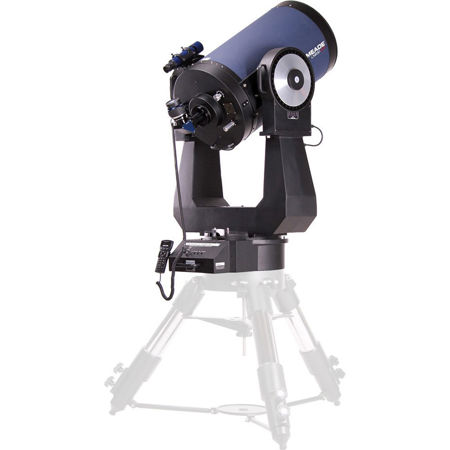

The most widely used research telescope on earth now comes with the most advanced optical system in space. Meade's all new LX200-ACF brings Advanced Coma-Free optics within reach of aspiring astronomers everywhere. The LX200-ACF includes all the field-proven features of the LX200 including GPS, Primary Mirror Lock, Zero Image-Shift Microfocuser, Oversized Primary Mirror, SmartDrive, Smart Mount, AutoStar II & more.
The LX200-ACF comes with observatory-class optics, & a Series 5000 26mm 5-Element Plossl eyepiece.
f/10 Advanced Coma-Free Optics; Building upon the classic AC design Meade has created a design with the same coma free pinpoint star images and flatter field that discerning astrophotographers and most professional observatories have come to expect from classic Coma-Free optics. Meades Advanced Coma-Free system also reduces the astigmatism and eliminates diffractions spikes found in classical RCs. The LX200-ACF is the perfect platform for the demanding researcher and imaging enthusiast with telescopes available in apertures of 8 inches, 10 inches, 12 inches, 14 inches, and 16 inches.
Primary Mirror Lock locks the mirror in place during long-exposure astrophotography. Oversize Primary Mirror diameters are greater than their listed aperture (e.g.,the diameter of the 8" LX200-ACF is actually 8.25").
This additional 1/4" yields a wide, fully illuminated field-of-view. Smart Mount constantly refines pointing accu racy each time an object is centered & updated. Compatible with both equatorial & altazimuth mounts.
Smart Drive provides permanent periodic error correction (PPEC) on both axes by learning & averaging error over the course of one or more training periods, thereby minimizing guiding corrections during long-exposure photographs. PPEC is available on both axes & functions in both polar & altazimuth modes.
Sony GPS Receiver Sensor automatically inputs precise time, date, & geographical location to help quickly & precisely align the telescope.
AutoAlign Telescopes with Meade's new AutoAlign come pre-aligned. They are smart scopes that know the night sky right out of the box.
AutoStar II controller features Hot Keys for quick access to a 145,000 celestial object database. AutoStar II can be updated with the latest software upgrades, guided tours & timely objects like comets free at meade.com.
