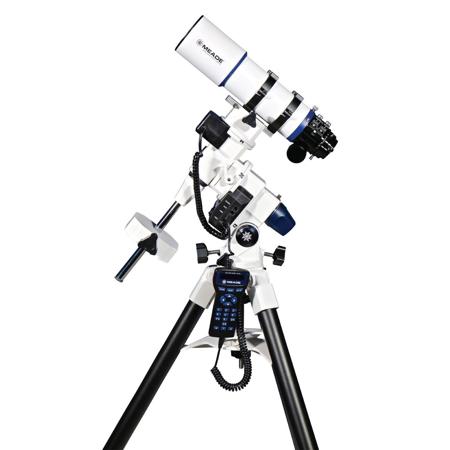

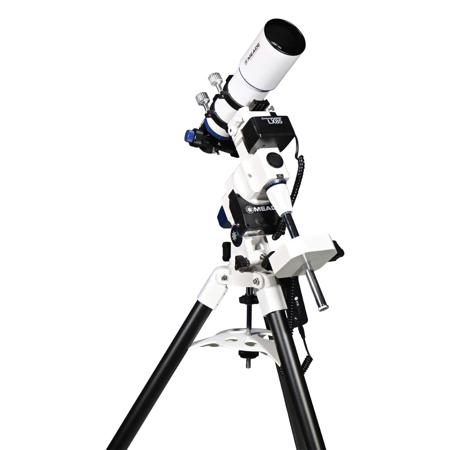

Meade LX85 Series 80mm Apochromatic Triplet Refractor Telescope with GoTo German Equatorial Mount and Tripod, 480mm f/6, Fully Multi-Coated

SKU: MDLX8580MM

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Brett L : What is needed to hook a DSLR camera to this?
Shopper : Why Did You Choose This?Saul S : Good refractor option for the price.

Reviews about this item

Review Summary

Meade LX85 Telescope Specifications

Optical Tube Assembly

Optical Tube Assembly

Jump to...
  • Focus System

    2.5" Dual Rack & Pinion, 10:1 Fine Focuser

  • Clear Aperture

    80mm (3.15")

  • Optical Design

    Apochromatic Triplet Refractor

  • Optical Coatings

    Fully Multi-Coated

  • Focal Length

    480mm

  • Focal Ratio

    f/6

  • Viewfinder

    No

  • Eyepieces

    No

  • Focuser Mechanism

    2.5" Dual Rack & Pinion, 10:1 Fine Focuser

  • Dovetail

    Vixen-Style

Mount and Tripod

Jump to...
  • Mount Type

    Motorized; German Equatorial

  • GPS

    No

  • Counterweight

    1x 9.0 lbs (4.08kg)

  • Tripod Section

    2 Section

  • Load Capacity

    33.0 lbs (14.97kg)

  • Motor

    2x 12 VDC low-cog stepper

  • GoTo Capability

    Yes, AudioStar hand controller

  • Object Database

    30,000 objects

  • Polar Axis Scope

    No

  • Includes Tripod/Pier

    31.5 to 43.5" (80.01 to 110.49cm) adjustable height
    Cast aluminum mount base
    1.75" (4.45cm) stainless steel legs

General

Jump to...
  • Dew Shield

    Yes

  • Dimensions

    Optical Tube: 15.5 x 4.5 x 6" (39.37 x 11.43 x 15.24cm)
    Mount Head: 13.2 x 12.4 x 4.8" (33.53 x 31.50 x 12.19cm)
    Tripod, Collapsed: 39.5 x 6.25 x 5.75" (100.33 x 15.88 x 14.61cm)
    Mount Fully Assembled: 47.2 x 47.2 x 5.8" (119.89 x 119.89 x 14.73cm)

  • Weight

    Assembled: 41.1 lbs (18.64kg)
    Mount Head: 10.9 lbs (4.94kg)
    Tripod: 12.4 lbs (5.62kg)
    Mount Fully Assembled: 34.1 lbs (15.47kg)
    Optical Tube Assembly: 7 lbs (3.18kg)

  • UPC Code

    709942998825

About Meade LX85 Telescope

The LX85 Series 80mm APO has a 3-element apochromatic refractor optical design and highest grade FPL 53 ED (extremely low dispersion) optical glass to virtually eliminate falso color, yielding astonishing color correction, contrast and sharpness. Features an 80mm aperture, 480mm focal length and f/6 focal ratio. Equipped with a 2.5" dual rack & pinion focuser (10:1 fine focuser) and fully multi-coated optical coatings. Includes a fully extendable dew shield and vixen-style dovetail. Standard equipment also includes an aluminum hard carry case to protect your 80mm APO. The OTA alone weighs 7 lbs and has dimensions of 15.5" x 4.5" x 6".

Meade's new LX85 Series features a high-quality, portable, GoTo, German Equatorial Mount. The LX85 Series is the perfect choice for the cultivated observer and astro-imager looking to chase deep-sky objects! Use as a stand-alone mount or maximize your viewing potential with an array of different optical tubes to choose from. Meade's LX85 Series will keep you looking up for many years to come and sets a standard for mid-sized telescopes at a great price.

Sturdy GoTo Mount
The LX85 mount features a vixen-style dovetail, for mounting optical tubes up to 33lbs, coupled with a sturdy build, that ensure smooth tracking performance. With it's included integer gearing in the motor drive, you'll be able to track through long exposures using permanent periodic error correction (PPEC), another benefit for astrophotography. Seamlessly image the best parts of night sky with not having to worry about performing a meridian flip. This stable mount can impressively handle slight load imbalances with ease. This mount includes an integrated autoguider port to readily connect to your autoguider camera, making your astro-imaging experience easy and straightforward.

AudioStar Hand Box
With the included AudioStar hand controller, you have easy access to 30,000-objects, that you can view with a simple press of a button! AudioStar features a built-in speaker that plays educational content about the celestial objects you view!

Meade LX85 Telescope Features

  • 80mm Apochromatic Refractor
  • 480mm Focal Length
  • f/6 Focal Ratio
  • Vixen-Style Dovetail included
  • Fully extendable Dew Shield
  • Vixen-Style Dovetail receiver
  • GoTo German Equatorial Mount with 33 lb. payload capacity

What's in the box:

  • Meade LX85 Series 80mm Apochromatic Triplet Refractor Telescope
  • LX85 GoTo German Equatorial Mount with Tripod
  • 1.25 " Eyepiece Reducer Adapter
  • AudioStar GoTo Hand Controller
  • Counterweight Shaft
  • 9 Lbs Counterweight
  • Autostar Suite Astronomer Edition DVD
  • Aluminum Hard Carry Case
  • Meade 1 Year Limited Warranty
