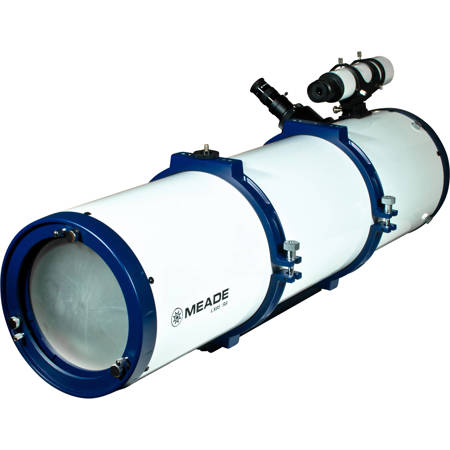

Meade LX85 8" f/5 Newtonian Reflector Telescope with 8x50 Crosshair Optical Viewfinder (Optical Tube Assembly Only)

SKU: MDLX85OTA8NF

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Ronald F : Would this telescope fit  on atripod  used with apolaris 80?ROMAN W S : Not sure as I used it on an older celestron 114 eq tripod whlipich I think is a Cg2. I did add a little counterweightWILLIAM S : The LX85 six inch reflector comes with mounting rings and a Vixen style dovetail bar, which slides into the matching section on a Vixen style mount. A scope of this size will normally be mounted on at least an E4 or CG4 sized mount and tripod. The biggest issue with your mount and tripod, assuming it is set up for a Vixen dovetail, is the weight and strength of your mount and tripod. I am not familiar with your mount and tripod, but normally what would be used for an 80mm scope would not be strong enough for a 6 inch f/5 reflector and would be really wiggly. With manual equatorial mounts, a Celestron CG4 or the Meade LX70 will handle the scope well.
Shopper : Why Did You Choose This?GABRIEL D : I can’t wait to image with this ota.

Reviews about this item

Review Summary

2021-05-27T11:09:20

Rated 4 out of 5

Confused

Let's start with good: looks good, feels good, sturdy enough for 6" Meade telescope and Canon R camera (I could probably put much heavier telescope). Now bad things: polar alignment-I watched several videos how to do this. I set up location, altitude, set tripod on flat surface-leveled, time zone, time... From my backyard I can see Polaris. After placing tripod and moving to right direction I'm almost spot on Polaris. OK, according to some people that's good enough for watching Moon. When I pick Moon from list of objects press GO TO it takes me far away from Moon (20-30 degree) Even after I did different polar alignment (easy or 1 star) effect are always the same...far away from chosen object. After I move telescope to right location tracking works very good and I can take long exposure photos. I don't know if I have problems because I don't know how to use it or there is something wrong with software on mine AudioStar unit. I don't know how to check this.

RYSZARD K.

2021-02-10T08:07:25

Rated 5 out of 5

A great buy

Adorama was a pleasure to deal with and processed the order quickly . A well built ota with quality lenses and shipped without the need to collimate. So far this scope has excellent resolution providing a detail view of the sky including the moon .clusters and nebulae.

ROMAN S.

2021-01-11T07:19:15

Rated 5 out of 5

Great scope!

Great scope! Highly recommended

CALEB B.

2020-09-29T08:27:11

Rated 3 out of 5

Review grade = "C."

The mechanical parts of the scope are very good, i.e. well built, sturdy, and more than adequate for a casual observer like myself. But I'm disappointed with the optics. Smudgy & smeared images of the planets, the Galilean moons of Jupiter, and stars.

J C.

2020-08-20T12:41:14

Rated 5 out of 5

Great telescope if you have the equipment beforehand.

I recently bought this telescope from a different website. But I'm sure this review is viable and the less, especially since I don't see any posted yet. This telescope is one big MF so make sure your not over doing the payload of your mount. However because of its 8 inch primary mirror(thats where most of the weight is located) you get a wide view of the sky. Stars are crisp and pinpoint but as with most reflectors it does suffer slight coma aberration near the edge of the field of view. I would take the tradeoff for the amount of light you get for an 8 inch. Any bigger of a primary would almost certainly require a dobsonian mount. Speaking of which, on a negative I found. Would I'd recommend using an Equatorial mount instead of an Altazimuth because of the size of this scope, the slightest vibrations can cause a seizure at the eyepiece and takes well over 3 seconds to settle down and by that time you may have to adjust it again. Another negative would be that the finder scope is practically useless, not that it's not good, but that it is so close to the frame of the telescope you have to be a contortionist to look through it. All and all this would be a great telescope to add to your collection if you already have the necessary tools and equipment to use such a telescope. If you're just starting out I would not recommend buying something of this scale because it would be too hard to set up and not worth the hassle of dealing with if you're a beginner. So that being said I stand by my rating of 5/5 on this telescope.

Matthew C.

2020-07-14T08:24:46

Rated 4 out of 5

Good quality

Looks like it will work well. The power switch beast broken so Im currently waiting for a replacement mount

Justin H.

Meade LX85 Specifications

  • Clear Aperture

    8" (200mm)

  • Optical Design

    Newtonian Reflector

  • Focal Length

    39.37" (1000mm)

  • Focal Ratio

    f/5

  • Viewfinder

    8x50 Optical with Crosshair

  • Eyepiece

    0.38" (9.7mm) & 1.02" (26mm) Super Plossl, 1.25" (3.17cm)

  • Focuser Mechanism

    2" (5.08cm) Rack and Pinion

  • Dimensions

    9.4 x 39.8" (24 x 93.5cm)

  • Weight

    18.4 lb (8.4kg)

  • UPC Code

    709942999211

About Meade LX85

FEATURED REVIEWS

Great telescope if you have the equipment beforehand.

By Matthew C.

I recently bought this telescope from a different website. But I'm sure this review is viable and the less, especially since I don't see any posted yet. This telescope is one big MF so make sure your not over doing the payload of your mount. However because of its 8 inch primary mirror(thats where most of the weight is located) you get a wide view of the sky. Stars are crisp and pinpoint but as with most reflectors it does suffer slight coma aberration near the edge of the field of view. I w...

View full Review

Great scope!

By CALEB B.

Great scope! Highly recommended

The LX85 Series 8" Reflector has a Newtonian Reflector with parabolic primary optical design and features a 8" (200mm) aperture, 1000mm focal length, and f/5 focal ratio. This fast f/5 optical system provides spectacular wide-field images for the discriminating deep-sky observer and astrophotographer. Equipped with a 2" rack & pinion focuser and aluminum with SiO2 optical coatings. Includes (2) 1.25" Plossl eyepieces (9.7mm & 26mm) and a Viewfinder (8x50 optical with crosshair) along with a vixen-style dovetail. With included accessories, the OTA weighs 18.4 lbs (8.4kg) and has dimensions of 9.4" x 39.8" (24 cm x 93.5 cm).

Meade LX85 Features

  • 200mm (8") Reflector
  • 1000mm Focal Length
  • f/5 Focal Ratio
  • 9.7mm & 26mm Plossl (1.25") Eyepieces Included
  • 8x50 Optical Viewfinder with Crosshair I

Key Features

  • 200mm (8") Reflector
  • 1000mm Focal Length
  • f/5 Focal Ratio
  • 9.7mm & 26mm Plossl (1.25") Eyepieces Included
  • 8x50 Optical Viewfinder with Crosshair I

What's in the box:

  • LX85 8 " f/5 Newtonian Reflector Telescope (Optical Tube Assembly Only)
  • 9mm Eyepiece
  • 26mm Eyepiece
  • 1.25 " Eyepiece Reducer Adapter
  • 8x50 Crosshair Optical Viewfinder
  • Meade 1 Year Limited Warranty
