Meade SolarMax III 70mm f/5.7 Single-Stacked H-Alpha Solar Telescope with 15mm Blocking Filter and Case, OTA Only

SKU: MDSM370BF15

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?David H : Quality

Reviews about this item

Review Summary

2018-09-27T10:22:16

Rated 5 out of 5

Solar telescope.

I saw the flares with my new solar telescope, and it was great.

MICHAEL H.

Meade Solar Telescope Specifications

  • Clear Aperture

    70mm

  • Optical Design

    Achromatic Refractor

  • Optical Coatings

    Fully Multi-Coated

  • Focal Length

    400mm

  • Focal Ratio

    f/5.7

  • Viewfinder

    Sol Ranger

  • Eyepiece(s)

    CEMAX 18mm, 1.25"

  • Focuser Mechanism

    2" Rack and Pinion with 10:1 fine adjustment

  • Diagonal

    90 Degree Diagonal with Solar Filters

  • Blocking

    15mm, external

  • Mount

    Vixen-Style dovetail plate

  • Dimensions (LxWxH)

    16.3 x 5.9 x 5.5" (41.40 x 14.99 x 13.97cm) without Hard Case

  • Weight

    7.6 lbs (3.45kg)

  • UPC Code

    709942998344

About Meade Solar Telescope

FEATURED REVIEWS

Solar telescope.

By MICHAEL H.

I saw the flares with my new solar telescope, and it was great.

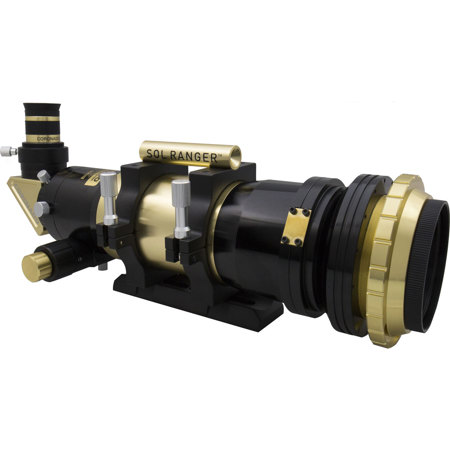

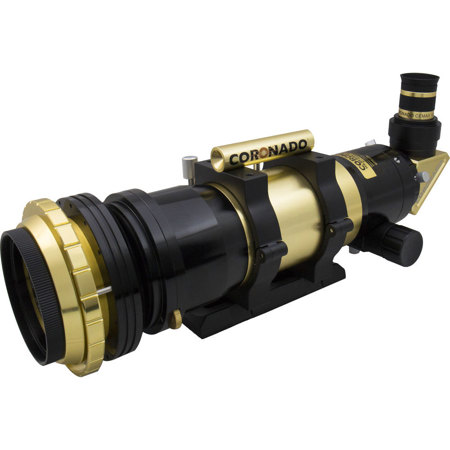

The SolarMax III is a 70mm F/5.7 refractor equipped with 60mm external hydrogen - alpha (H-a) filters. Available in both single-stacked (<0.7A) and double-stacked (<0.5A) bandpasses and either 10mm or 15mm blocking filters. What makes the SM3 standout? The SM3 70mm has a new two-speed rack & pinion focuser which creates a more user-friendly interaction with the telescope. The two-speed, 2" focuser has both coarse and fine focus controls allowing the user to get a more precise focus, critical for both solar imaging and visual observing. Additionally, the SM3 70mm includes only external "True" H-a etalon filters giving higher contrast views and sharper features compared with models using smaller internal H-a etalon designs. Experience darker backgrounds, sharper features and higher contrast with the new SolarMax III series telescope.

The SM3 70mm also includes Coronado's patented RichView tuning allowing direct tuning of the primary etalon filter. The patented RichView tuning technology provides additional tuning range and an overall better way of adjusting the filters bandpass. No other commercially available H-a telescope can provide the tuning range and accuracy of the new SolarMax III telescope. Now you can tune for the highest contrast views of your favorite solar features without sacrificing image quality.

The new Coronado 70mm SolarMax III series telescope with enhanced rack & pinion focuser and large external etalon(s) are now the perfect way to view the Sun! The SM3 70mm comes with an included 18mm CEMAX eyepiece, Sol Ranger Solar Finder, Vixen-style dovetail mounting rail and an all-new black and gold Aluminum Hard Carry Case. This very high quality 70mm solar telescope features an 400mm focal length, f/5.7 focal ratio and 15mm blocking filter. Includes mounting rings, Cemax 18mm eyepiece, Sol Ranger solar finder and black & gold aluminum hard carry case.

Meade Solar Telescope Features

  • Fully Integrated 70mm f/5.7 H-alpha Telescope - 400mm Focal Length
  • Includes Coronado's patented RichView tuning system
  • Sol Ranger Viewfinder
  • Black and Gold Hard Carry Case
  • 15mm Blocking Filter
  • Less than 0.7A Bandpass

What's in the box:

  • Meade SolarMax III 70mm f/5.7 Single-Stacked H-Alpha Solar Telescope
  • CEMAX 18mm H-Alpha Solar Eyepiece (1.25 ")
  • Sol Ranger Solar Viewfinder
  • 90deg. 15mm H-Alpha Blocking Filter (1.25 ")
  • 1.25 " Eyepiece Reducer Adapter
  • Cradle Ring Assembly with Dovetail
  • Gold Aluminum Hard Carrying Case
  • Meade 5 Year Limited Warranty
