Review Summary
4.0-16.0x
Second plane, McWhorter HV
4.9 - 1.4deg.
26 - 7' (8 - 2.1 m) at 100 yd
10 yd (9 m) to infinity
+/- 3
94%
1/4 MOA
42 MOA
44mm / 1.73"
30mm / 1.18"
3.9-3.1" / 99.06-78.74mm
11-2.8mm / 0.43-0.11"
15.2" / 386.08mm
24.2oz / 686.05g

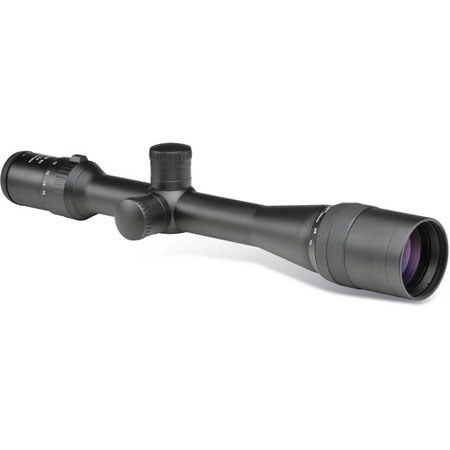

The Meopta MeoStar R1 4-16x44 Second Plane McWhorter HV Riflescope features a MW HV reticle, combining a fully multicoated 30mm optical path with a nitrogen-filled aluminum housing to create a intermediate to long-range zoom optic that is built for dependable low light and weatherproof performance. This scope's one-piece housing is machined from aerospace aluminum and anodized for increased corrosion resistance. Each lens is multicoated with Meopta's proprietary MB5501 anti-reflective coating to maximize light transmission and enhance image contrast throughout the zoom range.
The Meopta MeoStar R1 4-16x44 Riflescope is equipped with a McWhorter HV (MW HV) reticle etched into the second focal plane. The reticle pattern has a fine crosshair with four medium-weight posts as well as ranging subtensions and bullet drop compensation lines optimized at the 16x magnification setting for a .264 round with .612 ballistic coefficients at 3225 ft/sec. Another feature assisting the shooter's long-range accuracy is a parallax correction ring on the objective bell that can set from 10 yds to infinity.
Complementing the durable housing and high-transmission optics, the MeoStar R1 4-16x44 scope features MeoTrack II posi-click windage and elevation turrets that provide tactile and audible feedback that confirms the 1/4 MOA impact point corrections without requiring the observer to take their eye off the field of view. These turrets also employ an improved erector that uses positive resistance to ensure precise adjustments and maintain zero even when subjected to recoil from heavy caliber rifles.
Further equipping this MeoStar riflescope for years of quality service, the exposed surface of objective and ocular lenses are multicoated with a MeoShield abrasion resistant coating that protects against light scratches and helps moisture roll off the lens surface. The final elements in the MeoStar optical path belong to the MeoQuick fast-focus eyepiece, which enables rapid focus adjustment in addition to rendering edge-to-edge sharpness and a comfortable 3.9" eye relief.
