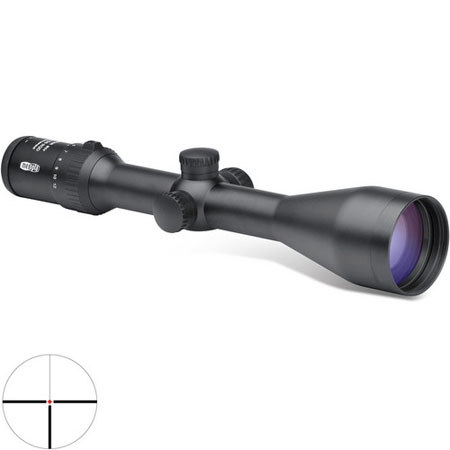

Meopta 3-12x56 MeoStar R1 Riflescope, Matte Black Finish with Illuminated First Focal Plane 4C Reticle, Hunting Turrets, 30mm Tube

SKU: ME560930

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Meopta 3-12x56 Rifle Scope Specifications

  • Magnification

    3.0-12.0x

  • Reticle

    First Plane, Illuminated 4C

  • Angle of View

    6.3-2.1deg.

  • Field of View

    33 - 11' (10 - 3.3 m) at 100 yd

  • Parallax Correction

    No

  • Diopter Correction

    +/- 3

  • Daylight Transmission

    93%

  • Maximum Windage/Elevation Adjustment

    43 MOA

  • Power Supply

    (1) CR2354 Battery

  • Objective Lens Diameter

    56mm / 2.20"

  • Main-Tube Diameter

    30mm / 1.18"

  • Eye Relief

    3.5-3.1" / 88.9-78.7mm

  • Exit Pupil Diameter

    14.8-4.6mm / 0.58-0.18"

  • Length

    14.4" / 365.7mm

  • Dimensions

    5.94x1.93x2.95" / 15.08x4.90x7.49cm

  • Weight

    22.9 oz / 649.2 g

About Meopta 3-12x56 Rifle Scope

The Meopta MeoStar R1 3-12x56 First Plane 4C Reticle Riflescope combines a fully multicoated 30mm optical path with a nitrogen-filled aerospace aluminum housing to create a close to mid-range zoom optic that is built for reliable low light and weatherproof performance. This scope's one-piece housing is machined from aerospace aluminum and anodized for increased corrosion resistance. Each lens is multicoated with Meopta's proprietary MB5501 anti-reflective coating to maximize light transmission and enhance image contrast throughout the zoom range.

The Meopta MeoStar R1 3-12x56 Riflescope is equipped with a first plane etched 4C reticle that has an illuminated red dot and three heavy posts at three, six, nine o'clock. Meopta's RD reticle illumination system includes a dedicated side turret to control the seven brightness levels and intermediate reticle off setting between each level. The RD illuminated reticle is designed to provide a high-contrast aiming point in any lighting condition from daylight to twilight.

Complementing the durable housing and high-transmission optics, the MeoStar 3-12x56 scope features MeoTrack II posi-click windage and elevation turrets that provide tactile and audible feedback that confirms the 1/4 MOA impact point corrections without requiring the observer to take their eye off the field of view. These turrets also employ an improved erector that uses positive resistance to ensure precise adjustments and maintain zero even when subjected to the recoil of heavy caliber rifles.

Further equipping this MeoStar riflescope to withstand regular use for years to come, the exposed surface of the objective and ocular lenses are multicoated with a MeoShield abrasion resistant coating that protects against light scratches and helps moisture roll off the lens surface. The final elements in the MeoStar optical path belong to the MeoQuick fast-focus eyepiece, which enables rapid focus adjustment in addition to rendering edge-to-edge sharpness and a comfortable 3.5" eye relief.

Meopta 3-12x56 Rifle Scope Features

  • Fully multicoated optics, MeoBright 5501 anti-reflective coatings
  • First plane 4C reticle with illuminated red dot
  • 1/4 MOA impact point correction
  • 43 MOA impact point correction range
  • MeoTrack II windage/elevation turrets with tactile feedback
  • MeoQuick fast focus eyepiece with +/-3 diopter correction
  • RD reticle illumination turret with 7 brightness settings
  • Construction: Nitrogen-filled fogproof/waterproof housing
  • Construction: Aerospace aluminum chassis with ELOX anodized hard coat
  • Construction: MeoShield abrasion resistant multicoating on exposed lens surfaces
  • Construction: MeoTrack II erector provides positive resistance for maintaining zero
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Fully multicoated optics, MeoBright 5501 anti-reflective coatings
  • First plane 4C reticle with illuminated red dot
  • 1/4 MOA impact point correction
  • 43 MOA impact point correction range
  • MeoTrack II windage/elevation turrets
  • MeoQuick fast focus eyepiece

What's in the box:

  • Meopta MeoStar R1 3-12x56 First Plane 4C Reticle Riflescope
  • Turret Caps
  • Lens Covers
  • Meopta Lifetime Limited Warranty
