Musical Fidelity M6x Vinyl MM/MC Phono Stage Pre-Amplifier, Black

SKU: MFIM6XVNYLBK MFR: MUFIM6XVINYLBK
Earn VIP Reward Points

Key Features

  • Experience pristine audio with the M6x Vinyl phono preamp's exceptional RIAA equalization.
  • Achieve low noise and high gain, enhancing your listening with this phono pre-amplifier.
  • Customize your sound with selectable input impedance on this versatile phono stage.
  • Enjoy balanced XLR outputs for superior connectivity options and signal clarity.
  • Fine-tune your vinyl setup with adjustable input capacitance for optimal sound quality.
  • Upgrade your turntable setup with Musical Fidelity's premium build quality and performance.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Musical Fidelity M6x Vinyl Specifications

MM Input

MM Input

Jump to...
  • Frequency Response

    RIAA or RIAA/IEC +/-0 .2dB

  • Input sensitivity

    5mV in for 500mV out (at 1 kHz)

  • Input impedance

    47K Ohm

  • Input capacitance

    50-400pF selectable

  • THD at 1 kHz

    <0.005%

  • Overload margin

    26dB

  • Signal to Noise Ratio

    >80dB "A"-wtd (40dB,5mV)

MC Input

Jump to...
  • Frequency Response

    RIAA or RIAA/IEC +/-0.25dB

  • Input sensitivity

    500micro V in for 500mV out (at 1 kHz)

  • Input impedance

    25 Ohm to 1,2K Ohm selectable

  • Input capacitance

    470pF fixed

  • THD at 1 kHz

    <0 .02%

  • Overload margin

    26dB

  • Signal to Noise Ratio

    >60dB "A"-wtd (60dB, 1mV)

Outputs (RCA/XLR)

Jump to...
  • RCA

    left and right 500mV nom 10V max (1 pair)

  • XLR (balanced)

    left and right 1V nom 20V max (1 pair)

Power requirement

Jump to...
  • Mains voltages

    230V/115V Internally set or 100V optional. AC 50/60Hz

  • Consumption

    20 Watts maximum. <0 .5W in standby (orange LED on)

Standard accessories

Jump to...
  • Mains lead

    10 Amp IEC

General

Jump to...
  • Color

    Black

  • Dimensions (W x H x D)

    17.3 x 3.9 x 15.1" (440 x 100 x 385mm)

  • Weight

    12.1 lbs (5.5kg)

  • UPC Code

    9120097824646

1 Accessories for Musical Fidelity M6x Vinyl MM/MC Phono Stage Pre-Amplifier, Black

  • All Accessories (1)
  • Laptop Stand (1)

About Musical Fidelity M6x Vinyl

Make your vinyl listening experience exceptional with the M6x Vinyl MM/MC Phono Stage Pre-Amplifier, a sophisticated product from the reputable brand, Musical Fidelity. This sleek, black pre-amplifier is not just a stylish addition to your home audio setup, but also a high-quality, professional-grade device that enhances the sound quality of your vinyl records.

The M6x Vinyl is an upgraded version of the M6 Vinyl, now boasting a balanced input and a fully discrete circuit board design. This phono MM/MC cartridge amplifier is designed to deliver high performance and accuracy, without any practical limitations. It's engineered to prevent overloading the input stage and to ensure optimal output driving capacity during regular use, whether running single-ended or balanced.

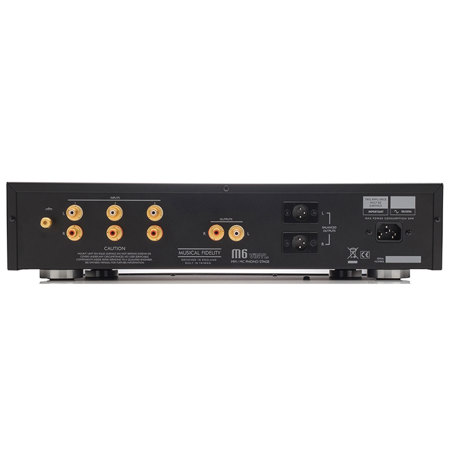

This pre-amplifier features three inputs, each of which can be individually set for either MM/MC and loading. Each input retains its own settings, offering you a personalized listening experience. The M6x Vinyl is designed to fit seamlessly into any vinyl hi-fi system, with one balanced input and output, two single-ended inputs, and one single-ended output.

The M6x Vinyl stands out with its discrete circuitry, which results in superior technical measurements and sound quality. Discrete circuits are composed of individual electronic components, such as resistors, capacitors, inductors, and transistors. This design choice, although more complex and time-consuming, results in a more neutral, natural, dynamic, and vivid sound, embodying the true spirit of high-end audio that Musical Fidelity is known for.

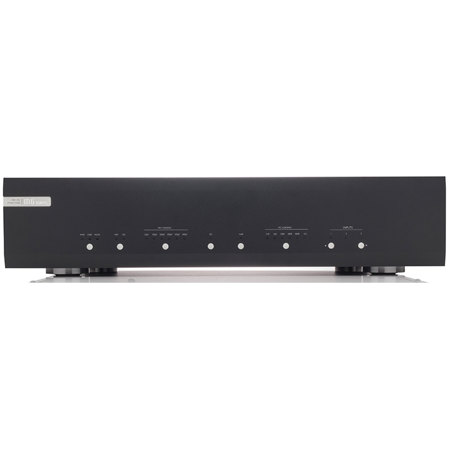

The unit also features three separate, independently selectable cartridge inputs, allowing for the use of three different turntables or multiple tone arm configurations. Selectable gain is provided to accommodate different cartridge sensitivities and to suit any equipment. Cartridge type and loading can be selected via front selector buttons for optimal cartridge performance.

The M6x Vinyl MM/MC Phono Stage Pre-Amplifier is designed to serve the music, to bring the artist's intent, emotions, and passion to your ears and heart. With its practically inaudible noise and minimal distortion, it allows for a pure, immersive vinyl listening experience. This pre-amplifier doesn't just exist, it thrives to enhance your audio journey.

Musical Fidelity M6x Vinyl Features

  • Exact and precise loading for MM and MC cartridges
  • Balanced input & output
  • Fully discrete circuit board design

Key Features

  • Experience pristine audio with the M6x Vinyl phono preamp's exceptional RIAA equalization.
  • Achieve low noise and high gain, enhancing your listening with this phono pre-amplifier.
  • Customize your sound with selectable input impedance on this versatile phono stage.
  • Enjoy balanced XLR outputs for superior connectivity options and signal clarity.
  • Fine-tune your vinyl setup with adjustable input capacitance for optimal sound quality.
  • Upgrade your turntable setup with Musical Fidelity's premium build quality and performance.

What's in the box:

  • M6x Vinyl MM/MC Phono Stage Pre-Amplifier (Black)
  • Power Supply
  • Musical Fidelity 5 Year Limited Warranty
