Musical Fidelity M8xi 550W Integrated Amplifier, Silver

SKU: MFIM8XISI

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the M8xi 550W Integrated Amplifier stand out in terms of sound quality?

The M8xi stands out due to its advanced Class A driver stage circuitry, ensuring superior sound quality and power efficiency. It also has low distortion across the full audible frequency range, guaranteeing crystal-clear audio.

What is the purpose of the built-in DAC in the M8xi 550W Integrated Amplifier?

The built-in 5 input DAC in the M8xi 550W Integrated Amplifier allows for high-quality digital-to-analog conversion. It supports hi-res audio streams up to 24-bit / 192kHz, and has its own power supply for added integrity.

What are the benefits of the dual mono integrated design in the M8xi 550W Integrated Amplifier?

The dual mono integrated design in the M8xi 550W Integrated Amplifier ensures ultra-low impedance signals the moment they enter the amplifier. This design, along with separate transformers, contributes to high-fidelity audio.

Does the M8xi 550W Integrated Amplifier have a volume control feature?

Yes, the M8xi 550W Integrated Amplifier features precision volume control with laser-trimmed resistors. This ensures perfect tracking right down to very low levels.

What is the power output of the M8xi 550W Integrated Amplifier?

The M8xi 550W Integrated Amplifier delivers a robust 550W per channel output into 8 ohms. This makes it suitable for driving a wide range of speakers in a home or professional audio setup.

Shopper : Why Did You Choose This?Krishna N : Good Reviews and I want the best under 7K

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Musical Fidelity M8xi Specifications

Amplifier

Amplifier

Jump to...
  • Power Output (20Hz - 20kHz)

    550Watts per channel into 8 Ohms (870W into 4 Ohms); Peak 1.6kW into 2 Ohms

  • Maximum output voltage

    67 Volts RMS, 20Hz to 20 kHz; onset of clipping (190 Volts peak-to-peak)

  • THD+N

    <0.004% typical, 20Hz to 20 kHz (XLR)

  • Signal / Noise Ratio

    > 86dB feA'-weighted (XLR)

  • Input impedance

    25K Ohm (RCA), 50K Ohm (XLR)

  • Frequency Response

    +0, -1dB, 10Hz to 100 kHz

  • Maximum peak output current

    105 Amps

  • Damping factor

    150

  • Output devices

    3+3 pairs (bridged arrangement) per channel

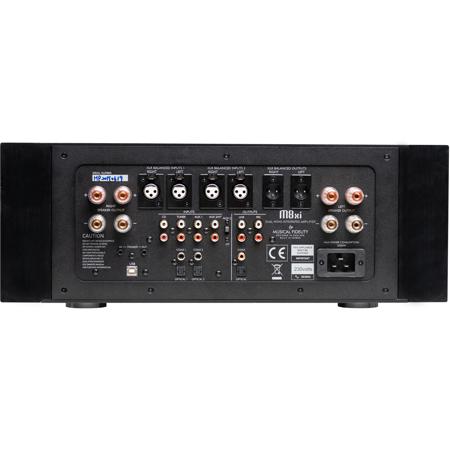

  • Inputs

    Inputs (analogue):
    4 pairs line level RCA connectors
    2 pairs line level XLR (balanced) connectors

    Inputs (digital):
    2x Coax S/PDIF up to 24 bit 192kHz
    2x Optical S/PDIF up to 24 bit 96kHz
    USB B Asynchronous USB up to 24 bit 192kHz

Outputs

Jump to...
  • Outputs

    Outputs (analogue):
    1 pair line level RCA fixed
    1 pair pre-out RCA variable
    1 pair line level XLR variable

    Outputs (digital):
    1x Coax S/PDIF up to 24 bit 192kHz
    1x Optical S/PDIF up to 24 bit 96kHz

General

Jump to...
  • Color

    Silver

  • Max. Consumption

    2000Watts

  • Dimensions (W x H x D)

    19 x 7.3 x 20" (485 x 185 x 510mm)

About Musical Fidelity M8xi

If you're seeking a high-end, sophisticated audio experience, look no further than the M8xi 550W Integrated Amplifier in sleek silver. This modern and stylish product from the reputable brand, Musical Fidelity, is the latest in a long line of Super Integrated Amplifiers, following the success of the A1000, NuVista M3, Tri Vista 300, kW500, M6/500i, NuVista 800, and NuVista 600.

The M8xi is a dual mono integrated amplifier, featuring a separate preamp with two monobloc power amps sharing a common chassis. Each component has its own heat sink and separate transformer, ensuring ultra-low impedance signals the moment they enter the amplifier. This design detail, coupled with twelve big bipolar transistors per channel, allows for an impressive 200 amps peak to peak.

The M8xi is not just about power; it's also about precision. The amplifier's new circuitry, developed over five years, delivers higher power, lower distortion, and better sound quality. The output stage efficiency has been increased, yielding about 10% more power for similar power supply voltage. The whole driver stage is pure Class A, contributing to a wider sound stage and more impactful micro and macro dynamics.

The M8xi also features a 5 input DAC, with its own power supply for added integrity. The DAC is based around the Texas Instruments PCM5242 TI low-distortion and low-noise DAC chip, supporting hi-res audio streams up-to 24-bit / 192kHz. All data streams are up-sampled and re-clocked by an internal converter to reduce jitter and remove unwanted artifacts in the sound.

The M8xi delivers 550 + 550wpc into 8 ohms, with distortion lower than 0.005% in the audible frequency range of 20 Hz to 20 kHz. It is unconditionally stable and will drive any loudspeaker with ease and ample power reserve. The precision volume control ensures perfect tracking right down to very low levels, achieved by laser-trimmed substrate resistors.

In terms of sound quality, the M8xi is effortless, fluid, and dynamic. It doesn't just sound loud, it sounds right. The dynamics are handled with no drama or fuss, and there is no distortion; just pure, undiluted music. It sounds like a superb small Class A amplifier but with limitless headroom. The M8xi 550W Integrated Amplifier is the perfect addition to any home or professional audio setup, offering a high-quality, sophisticated audio experience.

Musical Fidelity M8xi Features

  • New Circuitry
  • Linearity
  • Distortion
  • Precision Volume Control
  • Sound Quality

Product Documents

User Manual

Key Features

  • Experience powerful audio with the M8xi amplifier, delivering 550W into 8 Ohms for robust sound.
  • Enjoy pristine sound quality; this power amplifier boasts a THD+N of <0.004% for clear audio.
  • Connect all your devices! Multiple input options include RCA, XLR, and digital S/PDIF.
  • Achieve peak performance with a high signal-to-noise ratio, greater than 86dB for pure sound.
  • This integrated amplifier's frequency response of 10Hz to 100kHz ensures detailed audio.
  • Rely on thermal protection for lasting performance, safeguarding your power amplifier investment.

What's in the box:

  • M8xi 550W Integrated Amplifier (Silver)
  • M8xi Remote Control
  • 2x Batteries
  • Power Supply
  • Musical Fidelity 5 Year Limited Warranty on Amplifier and 1 Year Limited Warranty on Remote Control
