Musical Fidelity MX-HPA 1.8W Headphone Amplifier, Black

SKU: MFIMXHPABK

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Musical Fidelity MX-HPA Specifications

Output
  • Power

    1.8Watts per channel into 8 Ohms (27dBW)

  • Maximum output voltage

    19 Volts RMS, 20Hz to 20kHz
    Onset of clipping (54 Volts peak-to-peak) balanced

Line input

Jump to...
  • THD+N

    >0.005% typical, 20Hz to 20 kHz

  • Signal / Noise Ratio

    >120dB 'A'-weighted

  • Input impedance

    50k Ohms

  • Frequency Response

    +0, -0.1dB, 10Hz to 20 kHz

  • Gain, LO position (volume max)

    18db (8x)

  • Gain, HI position (volume max)

    24dB (15x)

Connections

Jump to...

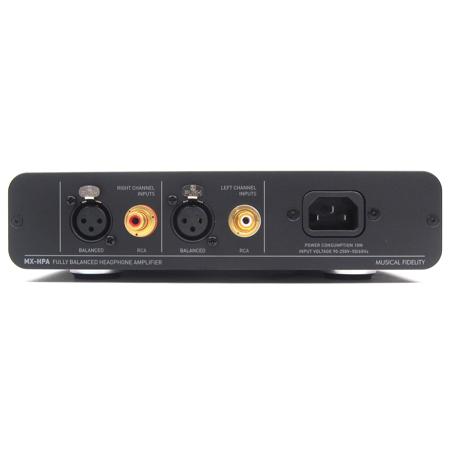

  • Line level inputs

    1 pair line level XLR (balanced) connectors
    1 pairs line level RCA connectors

  • Headphone outputs

    1 pair 3-Pin XLR/1/4" stereo Jack combined sockets

Power requirement

Jump to...
  • Mains voltages

    90-250VAC 50-60Hz universal worldwide supply

  • Consumption

    >0.25 Watts standby (Orange LED lit)
    15 Watts maximum (Blue LED lit, full power output)

General

Jump to...
  • Color

    Black

  • Dimensions (W x H x D)

    8.6 x 2 x 9.4" (220 x 53 x 240mm)

  • Weight

    4.8 lbs (2.2kg)

About Musical Fidelity MX-HPA

The MX-HPA is a fully balanced ultra performance headphone amp.

Years of experience in making high quality headphone amps have been distilled into the design of the MX-HPA. As a result, this fully-balanced headphone amp offers an awe-inspiring listening experience.

The MX-HPA's technical performance is stunning. Typically, distortion from 20 Hz to 40 kHz is less than 0.005%. Signal-to-noise ratio is better than 120dB ('A' weighted). Frequency response is ruler flat from 10 Hz to 20 kHz (-0.1dB).

The MX-HPA is capable of a short-term peak of 10 watts (for one cycle) and has two gain positions: 18dB (8X) and 24dB (15X). Inputs are either balanced or single-ended. The MX-HPA will automatically convert single-ended inputs to balanced. The MX-HPA is genuinely fully balanced from beginning to end.

Note: Not available in all countries

Musical Fidelity MX-HPA Features

  • Fully balanced, studio design, purist headphone amplifier
  • Incredible technical performance
  • Will drive any headphone with ease
  • Wide bandwidth: 10Hz-40kHz at +0, -3dB
  • Very low noise
  • Very low distortion: < 0.003%, 20Hz to 20kHz
  • Outstanding channel separation
  • Powerful, muscular, output into 32 ohms
  • Beautiful aesthetics and build quality

Key Features

  • Experience pristine audio with the Musical Fidelity headphone amplifier's ultra-low distortion.
  • Drive your headphones to their full potential with a robust 1.8 Watts of pure amplifier power.
  • Enjoy versatile connectivity with balanced XLR and RCA inputs on this headphone amplifier.
  • The MX-HPA's wide frequency response ensures accurate sound reproduction across all audio levels.
  • Optimize your listening with selectable gain settings for various headphone impedance levels.
  • Built to last, this durable headphone amplifier offers premium sound quality for years to come.

What's in the box:

  • MX-HPA 1.8W Headphone Amplifier (Black)
  • Power Supply
  • Musical Fidelity 5 Year Limited Warranty
