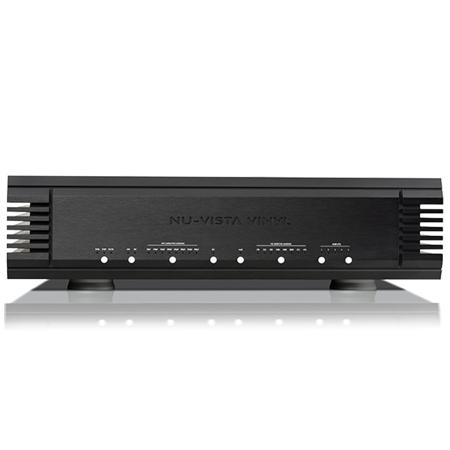

Musical Fidelity Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier, Black

SKU: MFINVSTVNLBK

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Musical Fidelity Nu-Vista Vinyl Specifications

MM Input

MM Input

Jump to...
  • Frequency response

    RIAA or RIAA/IEC (selectable) +/-0.2dB

  • Input sensitivity

    2.5mV in for 300mV out (at 1 kHz)

  • Input impedance

    47K Ohm

  • Input capacitance

    50-400pF selectable

  • THD

    at 1 kHz - <:0.01%

  • Overload margin

    31dB

  • Signal to Noise Ratio

    >90dB "A"-wtd

MC Input

Jump to...
  • Frequency response

    RIAA or RIAA/IEC (selectable) +/-0.2dB

  • Input sensitivity

    250micro V in for 300mV out (at 1 kHz)

  • Input impedance

    10 Ohm to 47K Ohm selectable

  • Input capacitance

    470pF fixed

  • THD

    at 1 kHz - <:0.01%

  • Overload margin

    31dB

  • Signal to Noise Ratio

    >88dB "A"-wtd

Outputs (RCA/XLR)

Jump to...
  • Outputs (RCA/XLR)

    1 pair RCA (phono) - left and right 300mV nom 10V max
    1 pair XLR (balanced) - left and right 600mV nom 20V max

Power requirement

Jump to...
  • Mains voltages

    230V/115V Internally set or 100V optional. AC 50/60Hz

  • Consumption

    30 Watts maximum

General

Jump to...
  • Color

    Black

  • Dimensions (W x H x D)

    19 x 5.11 x 15" (482 x 130 x 385mm)

  • Weight

    32 lbs (14.5kg)

  • UPC Code

    9120082385244

1 Accessories for Musical Fidelity Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier, Black

  • All Accessories (1)
  • Laptop Stand (1)

About Musical Fidelity Nu-Vista Vinyl

Find your ultimate audio experience with the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier in sleek black. Crafted with passion by Musical Fidelity, a brand renowned for its high-quality audio equipment, this pre-amplifier is a testament to their commitment to superior sound.

Designed specifically for turntables, this stylish and rugged pre-amplifier is optimized to enhance the unique characteristics of vinyl records. It employs Nuvistor tubes, a technology known for its exceptional audio performance, making it a reference-level phono stage that stands out in the market.

The Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier is not just a device, but a labor of love. Its visually appealing design is a reflection of the meticulous attention to detail that went into its creation. This pre-amplifier is built to surpass practical limits, with an input stage that cannot be overloaded and an output driving capacity that knows no bounds.

Featuring five inputs, each can be set for either MM or MC and exact loading. The device will remember these settings, providing a seamless user experience. Whether you're using it in a single-ended or balanced setup, this pre-amplifier is designed to deliver.

When it comes to sound quality, the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier is virtually perfect. It operates with no practical audible noise and minimal distortion, allowing you to forget its existence and immerse yourself in the music. From deep, resonating bass and holographic imaging to high-frequency clarity without sibilance, this pre-amplifier covers all bases.

But more than just delivering excellent sound, the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier is about connecting you to the heart of the music. It serves to bring the artist's intent, emotions, and passion straight to your ears and heart, providing an audio experience that truly eases your soul.

Musical Fidelity Nu-Vista Vinyl Features

  • Separate PSUs for each channel and each stage
  • Fully balanced PSUs with perfect star grounding
  • All the nuvistor PSUs are passively filtered and regulated
  • Extremely low distortion: less than 0.008% across the band
  • Maximum output is 10V RMS, 20V RMS Balanced

Key Features

  • Experience superior sound quality with this Musical Fidelity phono preamp for vinyl.
  • Enjoy low noise and exceptional clarity thanks to the Nu-Vista's advanced circuitry.
  • Achieve optimal gain control with selectable impedance for both MM and MC cartridges.
  • Customize your listening experience with selectable RIAA equalization curves.
  • Connect effortlessly with RCA/XLR outputs, ensuring wide compatibility with amplifiers.
  • Invest in lasting build quality, backed by Musical Fidelity's 5-year limited warranty.

What's in the box:

  • Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier (Black)
  • Power Supply
  • User Manual
  • Musical Fidelity 5 Year Limited Warranty
