Musical Fidelity Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier, Silver

SKU: MFINVSTVNLSI

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the significance of the Nuvistor tube technology in the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier?

Nuvistor tube technology offers superior audio fidelity. It's a type of vacuum tube that we at MF are passionate about, and it plays a significant role in delivering the high-quality, pure sound of the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier.

Can I customize the inputs on the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier?

Yes, the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier features five customizable inputs. Each can be set for either MM or MC and precise loading. The device will remember these settings for a seamless user experience.

What does 'reference-level phono stage' mean?

A 'reference-level phono stage' means that the device is considered a standard or benchmark in its category. In the case of the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier, it implies superior sound quality and performance.

Does the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier produce any noise or distortion?

The Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier is designed to offer virtually no audible noise or distortion, providing a pure, high-quality listening experience.

What kind of sound quality can I expect from the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier?

The Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier delivers deep bass, holographic imaging, and high-frequency clarity without sibilance. It's designed to convey the artist's intent, emotions, and passion, providing a rich and immersive audio experience.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Musical Fidelity Nu-Vista Vinyl Specifications

MM Input

MM Input

Jump to...
  • Frequency response

    RIAA or RIAA/IEC (selectable) +/-0.2dB

  • Input sensitivity

    2.5mV in for 300mV out (at 1 kHz)

  • Input impedance

    47K Ohm

  • Input capacitance

    50-400pF selectable

  • THD

    at 1 kHz - <:0.01%

  • Overload margin

    31dB

  • Signal to Noise Ratio

    >90dB "A"-wtd

MC Input

Jump to...
  • Frequency response

    RIAA or RIAA/IEC (selectable) +/-0.2dB

  • Input sensitivity

    250micro V in for 300mV out (at 1 kHz)

  • Input impedance

    10 Ohm to 47K Ohm selectable

  • Input capacitance

    470pF fixed

  • THD

    at 1 kHz - <:0.01%

  • Overload margin

    31dB

  • Signal to Noise Ratio

    >88dB "A"-wtd

Outputs (RCA/XLR)

Jump to...
  • Outputs (RCA/XLR)

    1 pair RCA (phono) - left and right 300mV nom 10V max
    1 pair XLR (balanced) - left and right 600mV nom 20V max

Power requirement

Jump to...
  • Mains voltages

    230V/115V Internally set or 100V optional. AC 50/60Hz

  • Consumption

    30 Watts maximum

General

Jump to...
  • Color

    Silver

  • Dimensions (W x H x D)

    19 x 5.11 x 15" (482 x 130 x 385mm)

  • Weight

    32 lbs (14.5kg)

1 Accessories for Musical Fidelity Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier, Silver

  • All Accessories (1)
  • Laptop Stand (1)

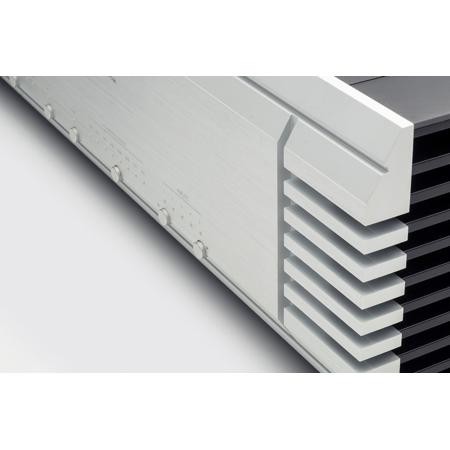

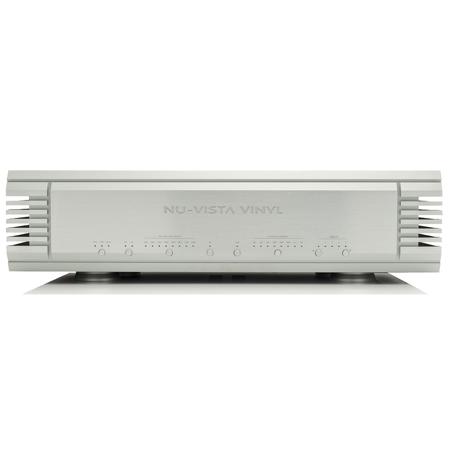

About Musical Fidelity Nu-Vista Vinyl

Bring the pure essence of music to your ears with the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier in Silver. This reference-level phono stage utilizes Nuvistor tubes, a technology we at MF are deeply passionate about. The Nu-Vista Vinyl is not just a product, but a testament to our love for phono and tubes, and our dedication to delivering a superior audio experience.

The design of the Nu-Vista Vinyl is a visual delight, reflecting our commitment to excellence. We've engineered this phono stage to transcend practical limits. Whether you're using single-ended or balanced inputs, you'll find no constraints in the output driving capacity.

This pre-amplifier comes equipped with five inputs, each customizable for either MM or MC and precise loading. The Nu-Vista Vinyl remembers these settings, providing a seamless user experience.

When it comes to sound quality, the Nu-Vista Vinyl is designed to be unnoticeable, serving as a transparent conduit for your music. With virtually no audible noise or distortion, and an input and output that cannot be overloaded, this pre-amplifier ensures that your cartridge is loaded perfectly.

The Nu-Vista Vinyl delivers deep bass, holographic imaging, and high-frequency clarity without sibilance. But beyond these technicalities, its true strength lies in its ability to convey the artist's intent, emotions, and passion. It doesn't just reproduce music; it brings it to life, touching your soul and connecting you to the heart of the music. Experience the transformative power of sound with the Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier.

Musical Fidelity Nu-Vista Vinyl Features

  • Separate PSUs for each channel and each stage
  • Fully balanced PSUs with perfect star grounding
  • All the nuvistor PSUs are passively filtered and regulated
  • Extremely low distortion: less than 0.008% across the band
  • Maximum output is 10V RMS, 20V RMS Balanced

Key Features

  • Experience superior sound quality with this phono preamp's ultra-low noise circuitry.
  • Achieve optimal gain control with selectable impedance for your MM/MC cartridges.
  • Enjoy pristine audio with precise RIAA equalization, bringing vinyl to life.
  • Connect effortlessly with RCA/XLR outputs, ensuring versatile connectivity options.
  • Crafted with exceptional build quality, this preamp delivers lasting performance and value.
  • Fine-tune your listening with adjustable capacitance, optimizing your phono stage's response.

What's in the box:

  • Nu-Vista Vinyl MM/MC Phono Stage Pre-Amplifier (Silver)
  • Power Supply
  • User Manual
  • Musical Fidelity 5 Year Limited Warranty
