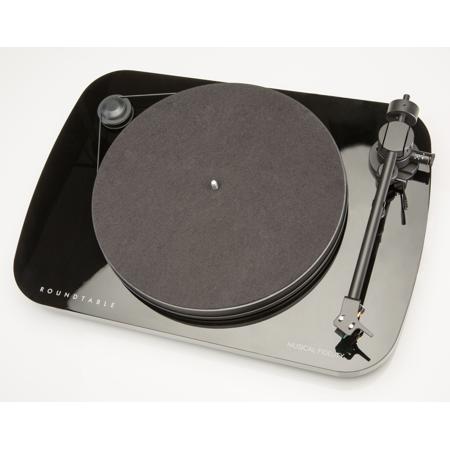

Musical Fidelity Roundtable S Turntable, Black

SKU: MFIROUNDTTBK

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Musical Fidelity Roundtable S Specifications

Performance

Performance

Jump to...
  • Nominal speed

    33/45 rpm, outside belt drive system, manual speed change

  • Speed Variance

    33rpm: +/- 0.30 %, 45rpm: +/- 0.20 %

  • Wow and flutter

    33rpm: +/- 0.10%, 45rpm: +/- 0.09%

  • Signal to Noise Ratio

    Mechanical noise: - 39 dB

  • Electrical noise

    -65dB

  • Downforce range

    0 - 25 mN

  • Tonearm

    9'' straight shape massive aluminum construction
    Supplied counterweights no. 82, weight 114g ( +/- 1g), for cartridges from 5 to 13g

  • Effective tonearm mass

    0.5 oz (14g)

  • Effective tonearm length

    9" (230mm) (tonearm mounting distance 212mm)

  • Overhang

    0.7" (18mm)

  • Power requirement

    15V 0.8A (Adapter supplied)

  • Consumption

    >0.25 Watts standby 5 Watts maximum

  • Adapter mains voltage

    110-240 V 50-60Hz

Supplied Cartridge Ortofon 2M Red

Jump to...
  • Cartridge type

    Moving Magnet

  • Frequency Response

    20 - 20.000 Hz + 3 / - 1 dB

  • Channel Separation

    22 dB at 1 kHz

  • Channel Balance

    1.5 dB

  • Tracking Force

    1.6 - 2.0g (1.8g recommended)

  • Vertical Tracking Angle

    20 Degree

  • Load Impedance

    Recommended: 47,000 ohms

  • Load Capacitance

    Recommended: 150 - 300pF

  • Output Voltage

    5.5 mV (mV at 1 kHz, 5 cm/sec)

  • Stylus Shape

    Elliptical

  • Stylus Construction

    tipped Elliptical diamond

  • Mount

    Half-inch

  • Replacement Stylus

    2M Red (exchangeable with 2M Blue and 2M Silver)

  • Weight

    0.25 oz (7.2g)

General

Jump to...
  • Color

    Black

  • Dimensions (W x H x D)

    23.5 x 4 x 13.5" (542 x 100 x 342mm)

  • Weight

    13.5 lbs (6kg)

About Musical Fidelity Roundtable S

Musical Fidelity's first turntable, the M1, was made in 2003. It was engineered to a very high standard. It was well received in the press.

Musical Fidelity's latest Roundtable S is a new venture into the world of turntables. This is a high quality competitively priced complete solution. It has a high quality low resonance 9" pickup arm (magnetic anti-skating) with steel tipped vertical bearings housed in zirconium with rubber damping, not dissimilar in principle to the Incabloc shock protection system on watches. The horizontal bearings are ABEC7 ball bearings. It is fitted with an Ortofon 2M Red cartridge. A dustcover is optionally available.

Design
Musical Fidelity has a long heritage of designing exceptional turntables and the Roundtable S is no exception:

Top spec components include: a polished high carbon tool steel bearing - for an exceptional long life and friction free performance - an extremely inert chassis and suspension system and a very high quality pick up arm, usually used on products several price categories higher.

The platter is made from finely machined high density MDF and has high mass and low resonance. The plinth is made from similar bulky low resonance material. The feet are also part of the isolation system. The Roundtable S offers a stable low resonance platform for vinyl disc playing.

The very high quality pickup arm is matched with a well regarded cartridge which complements the arm's characteristics exceptionally well. The turntable system itself has excellent isolation properties, low resonance, high stability and consistency. The motor, belt and main platter bearing are all selected for complimentary characteristics.

Musical Fidelity Roundtable S Features

  • Polished high carbon tool steel bearing
  • Very high quality pick up arm
  • Finely machined high density MDF platter
  • Motor, belt and main platter bearing are all selected for complimentary characteristics

Key Features

  • Polished high carbon tool steel bearing
  • Very high quality pick up arm
  • Finely machined high density MDF platter
  • Motor, belt and main platter bearing are all selected for complimentary characteristics

What's in the box:

  • Roundtable S Turntable (Black)
  • 15V DC Power Supply
  • White Cotton Gloves
  • Felt Mat
  • Hex Allen Key (1.5/3mm)
  • Plastic Tool
  • Cinch Cable with Grounding
  • Single Adapter
  • Stylus Pressure Gauge
  • Musical Fidelity 5 Year Limited Warranty
