Moog Matriarch Specifications

  • Edition

    Dark

  • Type

    Semi-Modular Analog Synthesizer

  • Sound Engine

    100% Analog

  • Number of Keys

    49 Full-Size Keys

  • Type Of Keys

    Velocity-sensing with Aftertouch (Velocity and Aftertouch are not hard-wired - available via MIDI, KBD VEL OUT and KB AT OUT jacks)

  • Other Controllers

    Pitch Bend, Mod Wheel, Variable Glide, Expression pedal in to CV out, and Sustain Pedal in

  • Polyphony

    Monophonic, 2-Note Paraphonic, and 4-Note Paraphonic

  • Sound Sources

    4x Analog Oscillators with Selectable Waveforms (Oscillators 2, 3, and 4 support Hard Sync), White Noise Generator, External Input jack.

  • Mixer

    6 input (5 eurorack level and 1 instrument level) DC coupled discrete mixer with asymmetrical clipping behavior

  • Filters

    24dB/Octave Low Pass Filter with Resonance, 24dB/Octave switchable Low Pass/High Pass Filter with Resonance. Configurable in parallel (HP/LP), stereo (LP/LP), and series (HP/LP).

  • MOD Sources

    Analog Modulation Oscillator with selectable and patchable output (Sine, Saw, Ramp, Square, Stepped Triangle, Smoothed Random, Sample and Hold, Noise). Additional LFO (Tri, Square).

  • Envelopes

    2x Four-Stage ADSR with End of Envelope gate outputs

  • Attenuators

    3x Bipolar Voltage Controlled Attenuators with Ring Mod capabilities

  • Mults

    2x4 Parallel-wired Non-buffered Patch Points

  • VCAS

    2x discrete analog VCAs routed in stereo

  • Effects

    Stereo Analog Delay with Ping/Pong, MIDI and CV clock sync, voltage controlled Mix, and independent L/R delay times, feedback, and I/O

  • Arpeggiator / Step Sequencer

    256 Steps with up to 4 notes per step; 12 Sequence locations

  • Patch Points

    90 x 3.5mm front and rear panels, 49 Inputs, 33 Outputs, 2x4 Parallel-wired Mults

  • Pedal Inputs

    1/4" Sustain, 1/4" Expression

  • Audio Input

    1/4" TS jack (Rear Panel)

  • Audio Outputs

    2x 1/4" TS jacks for line level output (Rear Panel), 1/4" Headphone jack with dedicated level knob (rear panel), 2x 3.5mm Eurorack level outputs, 2x 3.5mm Delay outputs

  • MIDI I/O

    5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)

  • Power

    Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz with screw-on barrel connector

  • Dimensions (W x D x H)

    32 x 14.25 x 5.5" (81.28 x 36.19 x 13.97cm)

  • Weight

    24 lbs (10.89kg)

  • UPC Code

    921455861858

3 Accessories for Moog Matriarch 49-Key 4-Note Paraphonic Analog Synthesizer, Dark

  • All Accessories (3)
  • Stands (2)
  • Keyboard Benches (1)

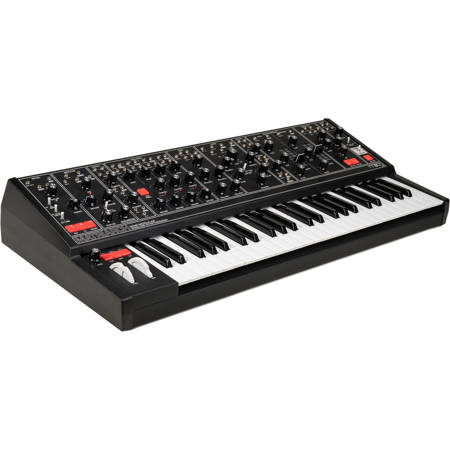

About Moog Matriarch

Matriarch is a patchable 4-note paraphonic analog synthesizer with a built-in Sequencer, Arpeggiator, stereo Ladder Filters, and stereo Analog Delay.

The Pinnacle of Moog's Semi-Modular Family of Analog Synthesizers.
Moog Matriarch is a patchable 4-note paraphonic analog synthesizer with a built-in Sequencer, Arpeggiator, stereo Ladder Filters, and stereo Analog Delay. Create rich evolving chord patterns immediately with "no patching required", then tap into an abundance of inspiring textures, new sounds, and an endless supply of happy accidents through Matriarch's 90 modular patch points. Based on the vintage circuitry of classic Moog synthesizer modules, Matriarch is a catalyst for creative ideas and a medium for multidimensional expression.

Paraphonic Playability
Sequence and perform in mono, duo, and 4-note paraphonic modes.

Stereo Analog Delay
Classic and ping-pong style repeats with lush infinite delay trails.

90 Modular Patch Points
Create, mangle and explore the endless expanse of sound with 90 modular patch points.

Matriarch is an analog synthesizer with an emphasis on imagination. The pinnacle of Moog's semi-modular family of synthesizers, Matriarch's patchable architecture and vintage Moog circuits reward open exploration with endless sonic possibilities and unparalleled analog sound.

Easily create rich harmonic shapes with up to 4 notes of paraphony that can be sequenced, saved, and shifted with Matriarch's intuitive 256 step sequencer, or stack the analog VCOs to play on a massive 4 oscillator mono synth.

With a deep assortment of synthesis modules based on Bob Moog's original circuit designs, Matriarch's 100% analog signal path spans a dynamic sonic vocabulary - from overdriven monophonic bass to gently evolving paraphonic plucks that cycle through waveshapes into a wash of infinite delay trails. Coupling the power of vintage stereo ladder filters, dual Envelope Generators, stereo Analog Delays, and stereo VCAs, Matriarch delivers a multidimensional sound that empowers the sonic exploration of space and time.

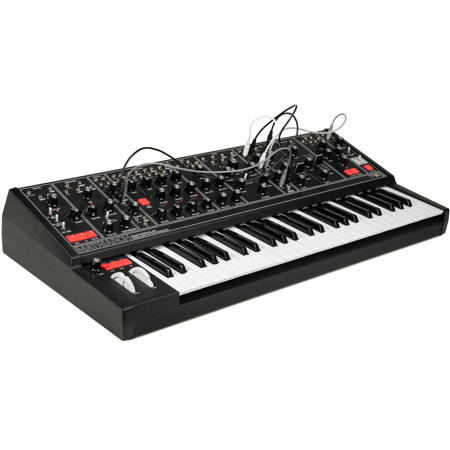

Though Matriarch's semi-modular design requires absolutely no patching, 90 modular patch points are easily accessible throughout the panel via the included 3.5mm patch cables. This powerful electronic instrument is a highly-versatile addition to any stage or studio that can effortlessly transform from a performance keyboard to a fully modular analog synthesizer at a moment's notice.

In addition to its standalone function, Matriarch is also an ideal processor of external sound sources and a powerful keyboard front-end for expanding a DFAM, Mother-32, Grandmother, or Eurorack modular system.

Matriarch: Place / Time / Memory
Exploring the Moog Matriarch synthesizer from their personal home studios, multi-instrumentalist Lisa Bella Donna, Ghostly Intl. electronic producer Max Ravitz (Patricia), Anthem / Call of Duty / Assassins Creed composer Sarah Schachner, and Paris Strother of Grammy-nominated R&B duo We Are KING express four unique sonic perspectives on the new instrument within the context of their own creative environments.

Matriarch: Place / Time / Memory illuminates the interconnectedness between one's sense of place, our perceptions of sound organized in time, and the impressions they leave behind.

Moog Matriarch Features

  • Voice Mode: Mono, duo, and 4-note paraphonic playability
  • Analog Delay: Stereo analog delay w/ up to 700ms of MIDI sync-able stereo or ping/pong style repeats
  • Sequencer: 256 step sequencer w/ up to 4 notes per step and 12 stored patterns. Can be decoupled from Matriarch to independently sequence external gear
  • Arpeggiator: Arpeggiator with selectable modes (Order, Forward/Backward, Random)
  • Semi-Modular Design: Semi-modular analog synthesizer - no patching required
  • Modular Capabilities: 90 modular patch points for endless exploration
  • Keyboard: Expressive 49-note Fatar keyboard w/ patchable velocity and aftertouch
  • Analog Oscillators: 4 analog oscillators w/ selectable waveshape and hard sync per-oscillator
  • LFO: Full-range analog LFO with 6 selectable waveshapes
  • Ladder Filters: Dual analog filters with parallel (HP/LP), stereo (LP/LP), and series (HP/LP) modes available
  • Envelope Generators: Dual analog ADSR envelopes
  • Voltage Controlled Amplifiers: Dual analog VCAs
  • Attenuators: 3x bipolar voltage controlled attenuators with ring mod capability
  • Multiples: 2x4 parallel wired unbuffered mults
  • Second LFO: Additional simple analog LFO useful for adding modulation to delay, filters and VCAs
  • External Processing: 1/4" external audio input for processing guitars, drum machines, and more through Matriarch's analog circuits
  • Outputs: Stereo 1/4" and 3.5mm Eurorack level audio outputs

Key Features

  • Voice Mode: Mono, duo, and 4-note paraphonic playability
  • Analog Delay: Stereo analog delay w/ up to 700ms of MIDI sync-able stereo
  • Arpeggiator: Arpeggiator with selectable modes (Order, Forward/Backward, Random)
  • Semi-Modular Design: Semi-modular analog synthesizer - no patching required
  • Modular Capabilities: 90 modular patch points for endless exploration
  • Keyboard: Expressive 49-note Fatar keyboard w/ patchable velocity and aftertouch

What's in the box:

  • Matriarch 49-Key 4-Note Paraphonic Analog Synthesizer (Dark)
  • Power Supply
  • Patch Cables
  • Patch Book
  • User Manual
  • Moog 1 Year Limited Warranty
