Magma ROBEN-3TS Specifications

  • Backplane

    (3) Full Length/Full Height PCI Express Slots
    3 slots x8 PCIe 2.0 electrical; x16 mechanical

  • Cable Required

    Thunderbolt (Sold Separately)

  • Interconnect Bandwidth

    20 Gbps Bi-directional

  • Material

    Aluminum Chassis

  • System Cooling

    (1) 80mm 33.4 CFM Expansion Card/Backplane Fan
    (1) Variable speed thermistor control option (or full speed)
    Two (2) 40mm 6.37 CFM Drive Bay Fans

  • Power Supply

    520-Watt Fanless

  • AC Input

    100-240 VAC

  • Input Frequency

    50-60Hz

  • Input Current

    8.0A Max

  • DC Output

    540 Watts Max
    +12V 43.0A maximum
    -12V .5A maximum
    +5V 20.0A maximum
    +3.3V 20.0A maximum
    +5Vsb 2.5A maximum
    Total power on +3.3V and 5V must not exceed 100W max

  • Auxiliary power cables

    (5) 4-pin Molex connectors
    (2) 6-pin + 2 PCIe connectors
    (2) PCIe Connectors

  • Ambient Temperature

    0 to 50deg. C / 32 to 122deg. F

  • Storage Temperature

    40 to 125deg. C / -104 to 257deg. F

  • Relative Humidity

    10% to 90% non-condensing

  • Regulatory Compliance

    FCC Class A Verified
    RoHS Compliant
    CE Certified

  • Supported Operating Systems

    Mac Compatibility: Mac OS X 10.9
    PC Compatibility: Windows 7 or Higher

  • Dimensions (W x H x D)

    14.25 x 3.48 x 17" / 361.95 x 88.39 x 431.80mm

  • Weight

    8.5lbs / 3.86kg

  • UPC Code

    748252997609

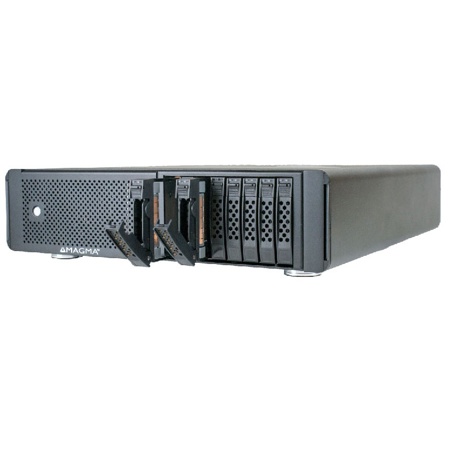

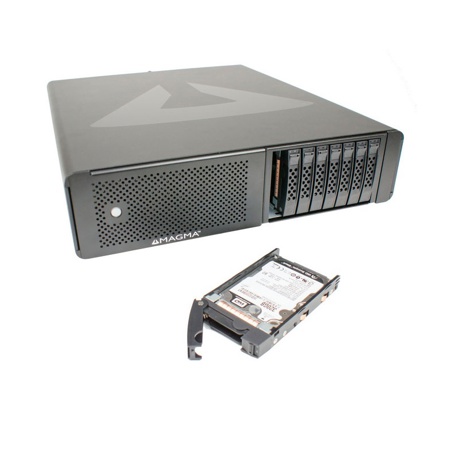

About Magma ROBEN-3TS

The Magma ROBEN-3TS incorporates the best technology from the mission critical defense and aerospace systems. ROBEN-3TS features three (3) full-length, full-height PCIe slots with a robust, high speed backplane. The rack-mountable aluminum chassis was designed for integrated removable storage expansion, with eight (8) 2.5" SATA/SAS HDD or SSD hard drive bays, a fanless 520-watt power supply, auxiliary power and features two (2) 40mm 6.37 CFM Drive Bay Fans. This added power can be channeled through lightning fast Thunderbolt 2 technology at 20Gbps. With 3-Slot PCIe and internal storage expansion, ROBEN-3TS empowers the serious audio, video and design professional to transform their computer into a powerful workstation - a sidekick for the creative hero. With the ROBEN-3TS, you will have the option of using the system in a desktop or rack-mounted configuration, adding higher versatility to your workflow. Also, by simply connecting two or more ROBEN-3TS systems in a series, you can create the performance equivalent of a server, without the cost and complexity. The ROBEN-3TS is the perfect choice for reaching beyond the limits of your creative genius.

The Ultimate Sidekick for All Your Creative Needs
The ROBEN-3TS is the perfect choice for reaching beyond the limits of your creative genius.

• Three (3) available full length/full height expansion slots
• Tool-less cover removal
• White power-on indicator front panel light
• One 80mm 33.4 CFM Expansion Card/Backplane Fan
• Variable speed thermistor control option (or full speed)
• Thunderbolt 2 speeds up to 20Gbps (2.5GBps) Bi-directional

Benefits
• Attach PCIe cards to Thunderbolt 2-enabled computer
• Extension of PCI Express signals outside the computer
• Daisy-chain or end-point device

Features
• Easy Plug and Play installation
• Use any combination of x1, x4, x8 and x16 PCIe cards
• Magma's exclusive quiet cooling control
• Auxiliary power cables
• Fanless 520-watt power supply

Key Features

  • Three (3) available full length/full height expansion slots
  • Tool-less cover removal
  • White power-on indicator front panel light
  • One 80mm 33.4 CFM Expansion Card/Backplane Fan
  • Variable speed thermistor control option (or full speed)
  • Thunderbolt speeds up to 10Gbps (1.25GBps) Bi-directional

What's in the box:

  • Magma 3 Slot Thunderbolt 2 to PCIe Expansion Chassis with 8x 2.5 " Drive Bays
  • U.S. Power Cord
  • Rack Brackets
  • Magma 1 Year Warranty
