Moog MSS-M32DFAM-U Specifications

Mother-32

Mother-32

Jump to...
  • Sound Engine

    Analog

  • Polyphony

    Monophonic

  • Keypad

    13 Note

  • Step Sequencer

    32-Step with 64 Sequence Locations, Keyboard and Step Edit Modes

  • Sequencer Panel Controls

    Tempo, Swing, Run/Stop, Hold, and Reset

  • Sound Sources

    1 Oscillator With Pulse and Saw Waveforms, 1 White Noise Generator, 1 External Audio Input

  • Oscillator Range

    8Hz-8KHz (16KHz max with LFO/CV)

  • Frequency Control

    +/- 1 Octave

  • Voltage Controlled Mixer

    +/- 5V Crossfades Between the Selected Oscillator Wave and External Audio Input (Normalled to White Noise)

  • Filter

    20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter

  • Glide

    Assigned to Pitch (On/Off Per Step)

  • Modulation Sources

    LFO (TriangLe or Square), VCO Mod Input (Normalled to EG)

  • Modulation Destinations

    Pulse Width, Oscillator Frequency, Filter Cutoff ( Modulation Polarity)

  • Lfo Panel Rate

    1Hz to 350Hz (600Hz max)

  • Envelope

    Selectable AD (Multi-Trigger) / ASD (Single-Trigger)

  • Vc Mixer

    Voltage Controlled Crossfade/Mix Circuit for Mixing Two DC Coupled Signals

  • Patchbay

    32x 3.5mm Jacks

  • CV/Gate Inputs

    External Audio, Mix CV, VCA CV, VCF Cutoff, VCF Resonance, VCO 1V/Octave, VCO Linear FM, VCO Modulation, LFO Rate, Mix 1, Mix 2, VC Mix Control, Mult, Gate, Tempo, Run/Stop, Reset and Hold

  • CV/Gate Outputs

    VCA, Noise, VCF, VCO Saw, VCO Pulse, LFO Triangle, LFO Square, VC Mix, Mult , Mult 2, Assign, EG, KB, Gate

  • Assignable Output

    Multipurpose control output for selecting from 16 available functions: Sequencer Accent, Sequencer Clock, Sequencer Clock/2 Sequencer Clock /4, Decimated "Ramp", Decimated "Saw", Decimated "Triangle", Stepped Random, STEP 1, MIDI Note On Velocity, MIDI Channel Aftertouch, MIDI Pitch Bend, MIDI CC1 Mod Wheel, MIDI CC2, MIDI CC4 and MIDI CC7

  • External Audio Input

    3.5mm

  • Audio Output

    1/4" TS Line / 1/4" TRS Headphones (Shared Output Jack)

  • Midi In

    5-Pin DIN input

  • Midi Control

    Note, Gate, Pitch Bend (Mod Wheel, After Pressure, Velocity Available Via Assignable Output)

  • Power Supply

    110-250VAC, 50-60Hz, +12VDC 1A

  • Power Consumption

    2.8W

  • Eurorack Current Draw

    230mA (+12V - from 10-pin header)

  • Eurorack Mounting Dimensions

    60HP (0.69" 26mm Module Depth)

  • Dimensions (W x H x D)

    12.57 x 4.21 x 5.24" (31.9 x 10.7 x 13.3cm) - Height (4.21") with Knobs

  • Weight

    3.5 lbs (1.6kg)

  • Sound Engine

    Analog

  • Analog Sequencer

    8-Steps With Pitch and Velocity Per-Step

  • Sequencer Panel Controls

    Tempo, Run/Stop, Trigger, Advance

  • Sound Sources

    2 Oscillators With Square and Triangle Waveforms, 1 White Noise Generator, 1 External Audio Input

  • Frequency Control

    +/- 5 Octaves (10 Octave Range)

  • Mixer

    Level controls for Oscillator 1, Oscillator 2 and White Noise/External Audio Input

  • Filter

    20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter

  • Envelopes

    VCO EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCF EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCA EG w/ Voltage Controlled Decay and Selectable Fast/Slow Attack Time

  • Patchbay

    24x 3.5mm Jacks

  • Patchbay Inputs

    Trigger, VCA CV, Velocity, VCA Decay, External Audio, VCF Decay, Noise Level, VCO Decay, VCF Mod, VCO 1 CV, 1f'2 FM Amount, VCO 2 CV, Tempo, Run/Stop, Advance/Clock.

  • Patchbay Outputs

    VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, Trigger, Velocity, Pitch.

  • Audio Output

    1/4" TS Line / 1/4" TRS Headphones (Shared Output Jack)

  • Included Power Supply

    100-240VAC; 50-60Hz, +12VDC 1200mA

  • Power Consumption

    3.0W

  • Eurorack Current Draw

    230mA (+12V - from 10-pin header)

  • Eurorack Mounting Dimensions

    60HP (1"/26mm Module Depth)

  • Dimensions (W x H x D)

    12.57 x 4.21 x 5.24" (31.9 x 10.7 x 13.3cm) - Height (4.21") with Knobs

  • Weight

    3.5 lbs (1.6kg)

  • UPC Code

    040232358920

2 Accessories for Moog MSS-M32DFAM-U Moog Sound Studio Semi Modular Bundle, Mother-32 and DFAM

  • All Accessories (2)
  • Stands (1)
  • Keyboard Benches (1)

About Moog MSS-M32DFAM-U

Moog Sound Studio
A complete analog synthesis studio in a box. Everything necessary to start patching today. -All you need is a pair of headphones!

Ready to take the next step in your analog synthesis journey? The Moog Sound Studio has you covered. Moog Sound Studio is an all-inclusive bundle of semi-modular synthesizers and accessories created to provide users with all of the equipment, cables, accessories, and educational tools needed to enter the world of analog synthesis for the first time or to continue to explore sound in an immersive new way. All you need is your own headphones or personal speaker and you're ready to get started!

Moog semi-modular synthesizers are the perfect instruments to focus your artistic direction, empower creative expression, and expand your exploration of experimental modular, professional sound design or electronic production. The Moog Sound Studio journey begins by selecting an instrument combination to complement your musical style or sonic preference: Mother 32 & DFAM or DFAM & Subharmonicon. These instrument pairings are particularly powerful when patched together, vastly expanding the sonic capabilities of each individual synth to produce a whole that is greater than the sum of its parts.

Along with the chosen duo of semi-modular synthesizers, each Moog Sound Studio includes a personal stereo summing mixer with 3-way power distribution to provide flexible signal routing and power your entire system conveniently from a single power supply. Also included are a series of guided exercises, exploration games, experimental patch sheets, imaginative studio art, and more to outfit your studio and take your synthesis skills to the next level.

Moog Sound Studio takes the magical environment and hands-on learning experience of Moog installations found at events around the world and presents them in a way that empowers you to explore synthesis with joy and confidence from the comfort of your own home or studio.

This is an exciting time to be a part of the growing synth community. The Moog Sound Studio is here to provide a meaningful electronic experience that informs, inspires, and nurtures synthesists at any point in the creative journey.

Mother-32
Mother-32 is an intuitive and expandable semi-modular synthesizer that adds raw analog sound, powerful sequencing, and extensive interconnectivity to any creative, electronic, or modular ecosystem. Mother-32 Excels at: Classic analog bass & leads and powerful step-sequencing with pattern memory.

DFAM
DFAM (Drummer From Another Mother) is a semi-modular analog percussion synthesizer that empowers an expressive hands-on approach to percussive pattern creation. DFAM Excels at: Rich electronic drum patches and organic analog sequencing that breathes.

Personal Stereo Summing Mixer and Instrument Cables
This 4-input analog summing mixer (1/4" IN, 1/8" stereo OUT) features selectable mono or stereo configurations for versatile routing options, and the built-in 3-way power distribution hub supplies power throughout your Moog Sound Studio conveniently from a single power supply. The included instrument cables come in lengths and colors to compliment the system and reduce clutter.

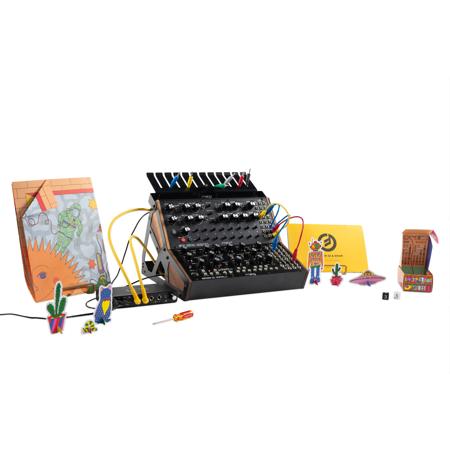

2-Tier Rack Kit
Conveniently stack both synthesizers and the summing mixer together as one connected system to maximize studio space and orient instruments vertically for optimal interconnectivity.

Cable Organizer and Custom Patch Cable Set
The included patch cable organizer connects to the two-tier rack or mounts directly to any wall, keeping patch cables neat and orderly for a hassle-free workflow. A custom set of patch cables has been selected in lengths, colors, and quantities to maximize system patchability.

Guided Exercises, Exploration Games, and Experimental Patch Sheets
Learning synthesis doesn't have to be intimidating! Included games and educational materials allow the player to explore at their own pace while enjoying the journey. Developed with artists who know these instruments best, these detailed and fun exercises are designed to accelerate your synthesis experience by exploring new skills to support your ongoing synthesis practice - A perfect jumping-off-point for beginners or source of inspiration for the seasoned pro.

Studio Art
All original artwork, created by Jim Stoten (M32/DFAM) and Philip Lindeman (SUBH/DFAM), has been thoughtfully designed to aid users in the exploration of new imaginative worlds. The characters, poster, and objects that accompany each Moog Sound Studio come together to transform any space into an immersive creative environment.

Moog MSS-M32DFAM-U Features

  • Professional sound tools for beginner and experienced synthesists alike
  • Truly everything you need to get started with synthesis
  • No electronic musical instrument experience necessary
  • Immersive, hands-on experience that empowers users to learn about how analog synthesizers work
  • Includes artwork exclusively designed for Moog Sound Studio owners to encourage creative expression
  • A perfect in store retail solution to introduce customers to the Moog brand

Key Features

  • Professional sound tools for beginner and experienced synthesists alike
  • Truly everything you need to get started with synthesis
  • No electronic musical instrument experience necessary
  • Immersive, hands-on experience that empowers users to learn about how analog synthesizers work
  • Includes artwork exclusively designed for Moog Sound Studio owners to encourage creative expression
  • A perfect in store retail solution to introduce customers to the Moog brand

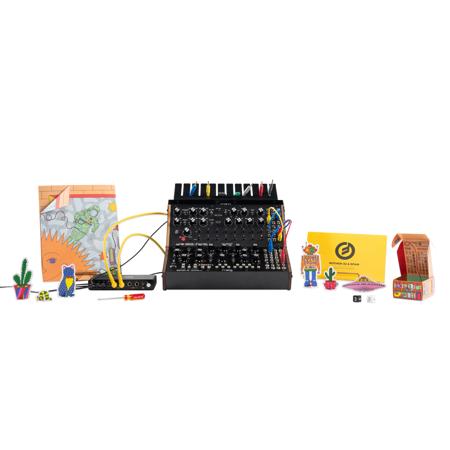

What's in the box:

  • Mother-32 Semi-Modular Analog Synthesizer
  • DFAM Semi-Modular Analog Percussion Synthesizer
  • 4-Channel Summing Mixer
  • 3x Power Supply
  • Calibration Tool
  • 3x Barrel-to-Barrel Power Distribution Cables
  • 2-Tier Rack Tools
  • Patch Cable Organizer
  • 10x Assorted Patch Cables (4x 6"/4x 12"/2x 18")
  • 2x 1/4" Audio Cables
  • Philips Head Screwdriver
  • Educational Patchbook
  • Exploratory Games and Art
  • Moog 1 Year Limited Warranty
