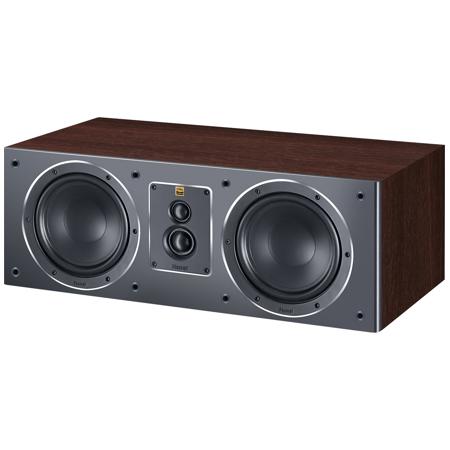

Magnat Signature Center 53 180W 3-Way Bass Reflex Center Speaker, Mocca

SKU: MGTD146232 MFR: D146232NA
Earn VIP Reward Points

Key Features

  • Experience crystal-clear dialogue and vocals with this 3-way center channel speaker, enhancing your home theater.
  • Enjoy immersive sound with a wide frequency response of 32-53000 Hz, capturing every audio detail.
  • Delivers powerful audio with 180W max power handling, perfect for dynamic movie soundtracks and music.
  • Achieve seamless audio integration with 91 dB sensitivity, ensuring your center speaker matches other components.
  • Its elegant Mocca finish and compact design blend beautifully into any living space, enhancing your decor.
  • The bass reflex principle provides deep, resonant bass, adding a new dimension to your audio experience.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2025-06-14T09:24:05

Rated 5 out of 5

One very nice Center channel speaker.

These are built extremely well, the bracing inside the enclosure is substantial...dampening fill Top/Bottom and Sides...Ventilated voice coil Woofers with a substantial motor/magnet assembly. The tweeter/super tweeter assembly is also well designed, letting the tweeter cross over to the super tweeter @17.5K ( Nice chamber on the rear of the tweeter too , with that super tweeter crossed over so high...you could use this as an MTM speaker vertically...it sounds great.) I had an old borescope , so took some shots of the inside through the port.

Michele S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Magnat Signature Center 53 Specifications

  • Cabinet surface

    Front: Anthracite Satin
    Cabinet: Ash Decor Mocca

  • Principle

    3-Way, double bass, bass reflex

  • Drivers

    2 x 6.5" midwoofer
    1.2" dome-tweeter
    0.75" super-tweeter

  • Power Handling (RMS/Max)

    110 / 180 Watts

  • Impedance

    4 - 8 Ohms

  • Frequency Response

    32 - 53000 Hz

  • Crossover Frequencies

    2600 Hz/17500 Hz

  • Recommended Amplifier Output

    >20 Watts

  • Sensitivity

    91 dB

  • Dimensions

    Cabinet: 21.6 x 8 x 11.1" (550 x 205 x 282mm)

  • Weight

    20 lbs (9.1kg)

  • UPC Code

    810072320247

About Magnat Signature Center 53

FEATURED REVIEWS

One very nice Center channel speaker.

By Michele S.

These are built extremely well, the bracing inside the enclosure is substantial...dampening fill Top/Bottom and Sides...Ventilated voice coil Woofers with a substantial motor/magnet assembly. The tweeter/super tweeter assembly is also well designed, letting the tweeter cross over to the super tweeter @17.5K ( Nice chamber on the rear of the tweeter too , with that super tweeter crossed over so high...you could use this as an MTM speaker vertically...it sounds great.) I had an old borescope ,...

View full Review

If you also use the Signature range as part of your home cinema, you will find that the Signature Center 53 is the ideal speaker for the front centre channel. In this case, the hi-res dual tweeter module is flanked by 2 x 170 mm bass-midrange units, as also found in all the other speakers in the range. This guarantees absolutely homogeneous sound, no matter where the director has positioned the action in acoustic terms. With its width of 550 mm, the Center 53 is best positioned under the TV, e.g. in appropriate shelving.

Features

Tweeter & Super-Tweeter
• Front panel with dedicated sound guidance for optimum dispersion properties
• Powerful neodymium ring magnet systems for best dynamics
• Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
• 1.2" dome tweeter with extra-thick surround for low frequency coupling to the midrange
• Newly developed high-res tweeter module with two fmax dome tweeters

Woofer-Midrange
• Solid decorative rings, fixed by six screws
• Solid metal basket with generous ventilation openings
• Coated cellulose cone
• Ventilated voice-coil unit for maximum capacity
• FE-Dynamics woofer-midrange
• Klippel optimised construction

Crossover
• Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components
• Large connection panel with generously dimensioned screw terminals and gold-plated contacts

Cabinet
• Satin lacquered baffle (mocca version)
• Resonance-damping rubber feet included
• Airflex port with rounded reflex opening to minimize annoying resonances
• Solid low-resonance cabinet construction using E1-MDF panels
• Removable cloth grille

Cabinet Surface
Front: Anthracite satin / cabinet: Ash decor mocca

Magnat Signature Center 53 Features

  • Hi-Res certified dual tweeter module with two fmax domes
  • 3-way centre speaker with bass reflex technology
  • Klippel-optimized woofer-midrange unit
  • Ventilated voice-coil unit for maximum resilience and dynamics
  • Optimum sound dispersion for use in a home cinema system

Key Features

  • Experience crystal-clear dialogue and vocals with this 3-way center channel speaker, enhancing your home theater.
  • Enjoy immersive sound with a wide frequency response of 32-53000 Hz, capturing every audio detail.
  • Delivers powerful audio with 180W max power handling, perfect for dynamic movie soundtracks and music.
  • Achieve seamless audio integration with 91 dB sensitivity, ensuring your center speaker matches other components.
  • Its elegant Mocca finish and compact design blend beautifully into any living space, enhancing your decor.
  • The bass reflex principle provides deep, resonant bass, adding a new dimension to your audio experience.

What's in the box:

  • Magnat Signature Center 53 180W 3-Way Bass Reflex Center Speaker (Mocca)
  • Resonance-Damping Rubber Feet
  • Magnat 5 Year Limited Warranty
