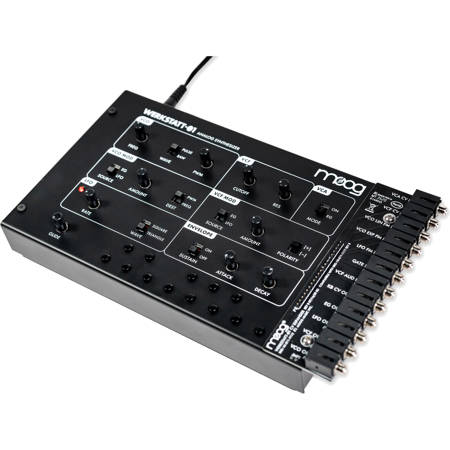

Moog Analog Synthesizer Werkstatt-01 and CV Expander Combo

- Werkstatt-01 -
The Werkstatt-1: Moogfest 2014 Kit is a patchable and compact, one oscillator analog synthesizer. It was originally created as a kit, to be the foundation for exclusive "Engineering VIP" workshops at Moogfest 2014. Due to a number of requests, Moog is offering a no-soldering-required version of the Werkstatt-1: Moogfest 2014 Kit in limited quantities, at select US dealers only. Assembly is extremely simple: Any user can quickly build an analog synthesizer based on classic Moog circuits, and if desired, study the analog circuits. Werkstatt was created to be an educational tool, but it is also a formidable, compact analog synthesizer from Moog.

Oscillator Section
• Single VCO with frequency control (8Hz to 16KHz)
• SLFO Sectionaw and square waveshapes with control for square pulse width
• Envelope or LFO selectable Mod Source that can be assigned to PWM or Pitch with Amount control
• Ability to PWM the square wave

Filter Section
• Classic 4-Pole Moog Ladder Filter with Resonance control (20Hz-20KHz)
• Select between the Envelope generator and LFO as Mod Source
• Polarity switch (+/-) and amount knob for control of filter cutoff modulation

LFO Section
Selectable Square or Triangle waveshape with rate control (2Hz-600Hz)

VCA/AMP Section
Select between the Envelope Generator or ON (Drone)

Envelopes Section
Controls for Attack & Decay time with Sustain On/Off switch

KB Section
One octave low-note priority legato keyboard with glide control

Patchbay
• VCA Input: 0V to +5V in VCA EG Mode, +/-2.5V in VCA ON Mode
• VCF Input: -5V to +5
• VCO Linear FM Input: +/-2.5V - NOTE: this is an inverting control input
• VCO Exponential FM Input: -5V to +5V, 1V/Octave trimmable
• LFO CV Input: 5V to +5V - NOTE: Negative CV slows LFO more than the panel
• VCF AUDIO Input: Unbuffered/Unmixed AC coupled input to VCF
• 2x KB CV Output: 3V/semitone from 1 keyboard - NOTE: Attenuate for 1V/Octave
• 2x TRIG Output: 5 msec pulse, 0 to +5 V signal generated from low-note priority
• 2x GATE Output: 0 to +5V signal generated from low-note priority
• 2x EG Output: 0 to +5V signal, Simple ASD or AD type Envelope Generator
• 2x LFO Output: -2.5 to +2.5V Triangle or Square wave, selected via LFO Switch
• 2x VCF Output: -2V to +2 V signal for audio or CV uses
• 2x VCO Output: 0V to +5V VCO signal, wave selected by VCO Wave Switch

Rear Panel
• Audio Output Nominal +/-1.5V Signal
• Power+12VDC Center Positive with 1.2A Wall transformer
• Power Consumption 1.8 Watt AVG

- Werkstatt CV Expander -
The Werkstatt-01 CV Expander converts Werkstatt's 20pin patchable expansion header to 12 grounded 3.5mm jacks. This allows your Werkstatt to easily interface with external CV-equipped analog gear.
