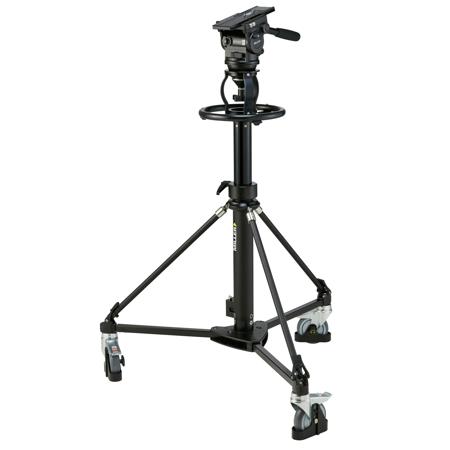

Miller ArrowX 5 Fluid Head with Combo Pedestal System, Includes 2x Telescopic Pan Handle with Clamp

SKU: MI1978 MFR: 1978
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional shots with this Miller fluid head & combo pedestal system.
  • Enjoy versatile height adjustments (35.43 - 49.21") with the robust combo pedestal.
  • Capture stable footage thanks to the fluid head's 2.0 to 21.0kg payload range.
  • Benefit from precise control with 7 selectable fluid drag positions on pan & tilt.
  • Quickly adapt to any shooting scenario using the 100mm ball levelling mounting base.
  • Confidently use this durable system in extreme conditions (-40 to 65 deg. C).
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Miller Arrowx 5 + Combo Pedestal Specifications

Fluid Head

Fluid Head

Jump to...
  • Payload Range

    2.0 to 21.0kg (4.41 to 46.30 lbs)

  • Counterbalance Positions

    16 selectable positions

  • Pan Tilt Drag

    7 selectable fluid drag positions + 0

  • Pan Tilt Locks

    Positive lock calliper brake system

  • Tilt Range

    + 90 deg. / -75 deg.

  • Pan Range

    360 deg.

  • Camera Platform

    Quick release camera plate (Euro)

  • Sliding Range

    120mm (4.72")

  • Mounting Base

    Dia. 100mm (3.94") ball levelling with 3 x M5 holes for flat base mounting

  • Height Above Bowl

    162mm (6.38")

  • Illuminated Controls

    Bubble level, pan-tilt drag controls

  • Pan Handle

    Telescopic 390 - 590mm (15.35 - 23.23")

  • Temperature Range

    -40 to 65 deg. C (-40 to 149 deg. F)

Telescopic Pan Handle

Jump to...
  • Width

    390 - 590mm (15.35 - 23.23")

Combo Pedestal

Jump to...
  • Maximum Payload Capacity

    30kg (66.14 lbs)

  • Height Range

    900 - 1250mm (35.43 - 49.21")

  • Mounting Base

    Dia. 100mm (3.94") ball levelling

  • Column In-Shot Stroke

    350mm (13.78")

  • Steering Wheel Diameter

    Dia. 294mm (11.57")

  • Tracking Width

    1072mm (42.20")

  • Wheel Diameter

    Dia. 125mm (4.92")

General

Jump to...
  • Weight

    Fluid Head: 3.4kg (7.50 lbs)
    Telescopic Pan Handle: 0.38kg (0.84 lbs)
    Combo Pedestal: 11.6kg (25.57 lbs)

About Miller Arrowx 5 + Combo Pedestal

An exceptional blend of durability, versatility, and professional-grade functionality, the ArrowX 5 Fluid Head with Combo Pedestal System is a top-tier choice for both studio operators and on-the-go photographers. This system, designed by the reputable brand Miller, offers lightweight portability without compromising on stability and reliability.

The ArrowX 5 Combo Pedestal employs an air adjustable column system, delivering a 350mm (13.8") stroke and a payload range of 2-21kg (4.4-46.2 lbs). Its sturdy construction ensures maximum stability, making it an ideal choice for those seeking a reliable, high-performing pedestal system.

The ArrowX 5 Fluid Head is a testament to Miller's commitment to innovation and quality. It follows in the footsteps of the world-renowned Arrow series, setting new standards in professional camera support. With a wide payload range, precision fluid drag, and Miller's innovative 16 position CB Plus counterbalance system, the ArrowX 5 Fluid Head offers the flexibility, speed of setup, and shot accuracy that professionals demand.

The CB Plus is an innovative sequential counterbalance design that takes traditional counterbalancing a step forward. It features eight larger counterbalance steps, allowing for quick and efficient setup. The CB Plus "one flick" switch, conveniently located at the front of the head, adds a half step between each of the eight larger steps, enabling fine-tuning of the counterbalance when required.

The system also includes a 2x telescopic pan handle with a clamp, extendable by 200mm (7.9"), compatible with Compass 25, ArrowX 3, 5, and 7. This feature adds convenience and versatility, allowing for a wide range of camera, lens, and accessory use.

The Combo Pedestal offers an air adjustable column system that delivers perfect camera balance with a height range of 900mm (35.4") up to 1250mm (49.2"), providing a precise, smooth, 350mm (13.8") elevation stroke for payloads up to 30kg (66lbs).

In summary, the ArrowX 5 Fluid Head with Combo Pedestal System is a robust, adjustable, and professional-grade solution for all your camera support needs. Its user-friendly features and stress-free setup make it a standout choice in the realm of camera equipment.

Miller Arrowx 5 + Combo Pedestal Features

  • ArrowX 5 Fluid Head:
  • Compact, lightweight and versatile
  • 7 selectable positions of fluid pan and tilt drag + 0
  • 16 position CB Plus counterbalance system
  • Wide payload range 2-21kg (4.4-46.2 lbs)
  • Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions
  • Controls "all in one location" design for fast, easy and practical use
  • Illuminated bubble level and pan-tilt drag controls
  • Precise floating pan-tilt calliper locks ensure bounce free on-off performance
  • Quick release, 120mm sliding camera platform with camera plate (euro)
  • Removable ball level stud allows for flat base mounting with 3/8" screw thread
  • Mitchell base adaptable
  • Robust construction for rugged outdoor shooting conditions
  • Side mounting point for viewfinders and accessories
  • Telescopic Pan Handle with Clamp:
  • Durable hi-strength black alloy tubing
  • Comfortable rubber pan handle grip
  • 200mm telescopic extension
  • Long clamp lever
  • Combo Pedestal:
  • Compact and portable with carry handle for dolly
  • Wide height range 900mm (35.4") up to 1250mm (49.2")
  • Simple and easy to setup and use
  • Air adjustable column system for quick payload balancing
  • Quick action column lock
  • Smooth 350 mm (13.8") stroke
  • Independent 125 mm (4.9") dolly wheel brake system
  • Sturdy adjustable cable guards
  • Steering wheel diameter 294 mm (11.6")
  • Dolly tracking width 920 mm (36.2")

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Achieve smooth, professional shots with this Miller fluid head & combo pedestal system.
  • Enjoy versatile height adjustments (35.43 - 49.21") with the robust combo pedestal.
  • Capture stable footage thanks to the fluid head's 2.0 to 21.0kg payload range.
  • Benefit from precise control with 7 selectable fluid drag positions on pan & tilt.
  • Quickly adapt to any shooting scenario using the 100mm ball levelling mounting base.
  • Confidently use this durable system in extreme conditions (-40 to 65 deg. C).

What's in the box:

  • Miller ArrowX 5 Fluid Head (1074)
  • Removable Ball Level Stud
  • 2x Telescopic Pan Handle with Clamp (696)
  • Combo Pedestal
  • Miller 3 Year Limited Warranty
