Miller ArrowX 3 Specifications

  • Arrowx 3: Payload Range

    1.0-19.0kg (2.2-41.8lbs)

  • Arrowx 3: Counterbalance Positions

    16 selectable positions

  • Arrowx 3: Pan Tilt Drag

    5 selectable fluid drag positions + 0

  • Arrowx 3: Pan Tilt Locks

    Positive lock calliper brake system

  • Arrowx 3: Tilt Range

    +90 Degree/ -75 Degree

  • Arrowx 3: Pan Range

    360 Degree

  • Arrowx 3: Camera Platform

    Quick release camera plate (Euro)

  • Arrowx 3: Sliding Range

    120mm (4.7)

  • Arrowx 3: Mounting Base

    100mm (3.9") ball levelling

  • Arrowx 3: Height Above Bowl

    162mm (6.4")

  • Arrowx 3: Illuminated Controls

    Bubble level, pan-tilt drag controls

  • Arrowx 3: Temperature Range

    -40 Degree to 65 Degree C (-40 Degree to 149 Degree F)

  • Tripod: Maximum Payload Capacity

    45kg (100lbs)

  • Tripod: Height Range

    440-1530mm (17.3-60.4")

  • Tripod: Transport Length

    700mm (27.6")

  • Tripod: Mounting Base

    100mm (3.9") ball levelling

  • Tripod: Leg Extension

    2-stage

  • Tripod: Lock Type

    HS Dual Action

  • Tripod: Leg Material

    Carbon fibre

  • Tripod: Weight

    3.2kg (7.0lbs)

  • Spreader: Transport Length

    320mm (12.5")

  • Spreader: Diameter Range

    600-1000mm (23.6-39.3")

  • Spreader: Weight

    0.79kg (1.74lbs)

  • Rubber Feet: Dimensions

    95 x 55mm (3.7 x 2.1")

  • Rubber Feet: Weight

    0.2kg (0.44lbs)

  • Pan Handle: Width

    390-590mm (15.4-23.2")

  • Pan Handle: Weight

    0.38kg (0.83lbs)

  • Arrow Softcase: Dimensions

    220 x 240 x 930mm (8.6 x 9.4 x 36.6")

  • Arrow Softcase: Weight

    3.0kg (6.6lbs)

  • System: Height Range

    602-1692mm (23.7-66.6")

  • System: Transport Length

    862mm (33.9")

About Miller ArrowX 3

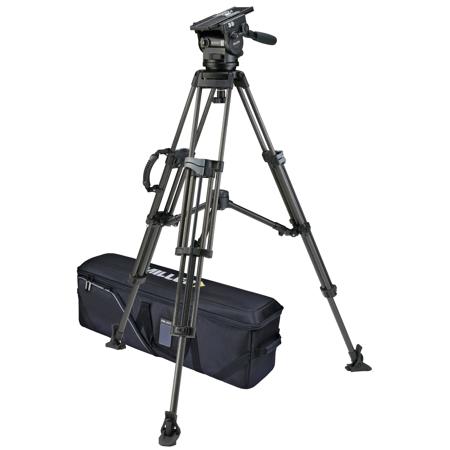

The 3043 Carbon Fibre, Sprinter II, 2-stage Arrowx 3 system, fitted with mid-level spreader is designed for speed of setup, high level of stability in a lightweight package, and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.

Featuring a wide payload range, precision fluid drag and Miller's innovative 16 position CB Plus counterbalance system, Arrowx 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

1-19kg (2.2-41.8lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 3 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.

The Arrowx 3 is matched with the 2 stage Sprinter II (carbon fibre) tripod and mid-level spreader to give incredible speed of set up, ultra light weight, large height range and the versatility to set up on all terrain.

Gone are the days where you have to carry two tripods to use large and small cameras on the same shoot.

Sprinter II 2 Stage Tripod

The 1576 Sprinter II 2-stage, carbon fibre, mid level spreader tripod employs the patented Miller design that enables the leg stages to be adjusted independently via two leg locks conveniently located high above the ground thus eliminating the need for the operator to bend down.

The Sprinter II dual action leg lock system is designed for operators who require speed and convenience of setup without compromise. By placing independent leg lock levers adjacent to each other, both the upper and lower stages they can be operated in unison or independently from one single upper leg location.

The unique intertwined layered construction method of the carbon/basalt fibre gives the tripod tubes incredible stiffness to the leg assembly.

The leg assemblies are integrated with the 100mm die-cast alloy bowl with precision resulting in a highly rigid tripod no matter what height you choose.

Mid level Spreader

The 993 mid-level spreader design offers continuous variable adjustment between maximum and minimum tripod height settings. It enables rapid setup and pull down by keeping the tripod legs at an equal or pre-set distance relative to each other.

Rubber Feet set of 3

Pullover rubber stirrup feet to suit Sprinter and HD tripods. Constructed from composite polymers and fitted with tough, durable rubber soles for extra grip and durability

Pan Handle Telescopic With Clamp

Telescopic pan handle, extendable by 200mm (5"), to suit Compass 25, Arrowx 3, 5 and 7.

Arrow Softcase 2 Stage

The Arrow and Arrowx Softcase for 2-Stage tripods comes with padded carry straps and a head-end cradle to protect the fluid head during transport. The softcase is made from weatherproof cordura and uses heavy duty zippers on bag and all pockets. Weighing only 3.0kg and a transport length of 930mm this softcase is great protection for your tripod system.

Miller ArrowX 3 Features

  • Arrowx 3 Features
  • Compact, lightweight and versatile
  • 5 selectable positions of fluid pan and tilt drag + 0
  • 16 position CB Plus counterbalance system
  • Perfect for payloads to 1-19kg (2.2-41.8lbs)
  • Sprinter II 2 Stage Tripod Features
  • 100mm alloy bowl
  • High speed independent 2-stage dual leg locks
  • Lightweight carbon fibre tubing
  • In-line carry handle
  • Suited for mid-level spreader
  • Integrated stainless steel spikes
  • Stay flat rubber feet (optional)
  • Integrated transport clips
  • Mid-Level Spreader Features
  • Quick action spreader arm latches to attach or release from tripod
  • Safely adjust tripod legs to equal or pre-set distances
  • Adjustable centre hub knob for smaller tripod footprints when required
  • Spreader latch and tripod swivel attachment prevents accidental damage
  • Rubber Feet Features
  • Quick and easy pullover rubber stirrups to secure tripod legs
  • Tough durable composite polymer
  • Rubber foot pad for extra grip
  • Pan Handle Features
  • Durable hi-strength black alloy tubing
  • Comfortable rubber pan handle grip
  • 200mm telescopic extension
  • Long clamp lever
  • Arrow Softcase Features
  • Tough weatherproof construction
  • High density padding for extra protection
  • Padded head cradle for extra protection
  • Heavy duty zippers
  • Padded carry strap

Key Features

  • Compact, lightweight and versatile
  • 5 selectable positions of fluid pan and tilt drag + 0
  • 16 position CB Plus counterbalance system
  • 100mm alloy bowl
  • High speed independent 2-stage dual leg locks
  • Lightweight carbon fibre tubing

What's in the box:

  • ArrowX 3 Fluid Head (1072)
  • Sprinter II 2-Stage Tripod (Carbon Fibre) (1576)
  • Mid-level Spreader (993)
  • Rubber Feet (Set Of 3) (475)
  • Pan Handle (Telescopic With Clamp) (696)
  • Arrow Softcase 2-Stage (872)
  • Miller 3 Year Warranty
