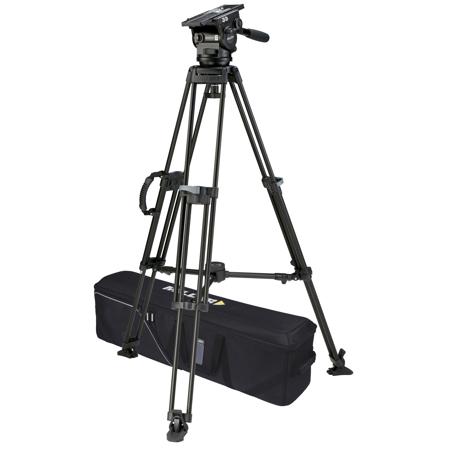

Miller Arrowx 7 Fluid Head with Sprinter II 2-Section Aluminum Alloy Tripod and 993 Mid-Level Spreader

SKU: MI3156 MFR: 3156
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional video with the ArrowX 7 fluid head's precise control.
  • Capture stable footage on any terrain using this tripod's robust alloy construction.
  • Enjoy versatile shooting with a wide 665-1430mm height range for varied perspectives.
  • Confidently support cameras up to 55 lbs with the tripod's impressive weight capacity.
  • Quickly adjust your setup with the 1-stage tripod and secure dual-action leg locks.
  • Easily transport your gear with the included soft case and lightweight design.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Miller ArrowX 7 + Sprinter II Specifications

Fluid Head

Fluid Head

Jump to...
  • Payload Range

    6-25kg (13.23-55.12 lbs)

  • Counterbalance Positions

    16 selectable positions

  • Pan Tilt Drag

    7 selectable fluid drag positions + 0

  • Pan Tilt Locks

    Positive lock caliper brake system

  • Tilt Range

    + 90deg./ -75deg.

  • Pan Range

    360deg.

  • Camera Platform

    Quick release camera plate (Euro)

  • Sliding Range

    120mm (4.72")

  • Mounting Base

    3.9" (9.91cm) (Dia.) ball leveling with 3 x M5 holes for flat base mounting

  • Height Above Bowl

    6.4" (16.26cm)

  • Illuminated Controls

    Bubble level, pan-tilt drag controls

  • Pan Handle

    Telescopic 390 - 590mm (15.35 - 23.23")

  • Temperature Range

    -40 to 65 deg. C (-40 to 149 deg. F)

  • Maximum Payload Capacity

    45kg (99.21 lbs)

  • Height Range

    665 - 1430mm (26.18 - 56.30")

  • Transport Length

    840mm (33.07")

  • Mounting Base

    Dia. 100mm (3.94") ball leveling

  • Leg Extension

    1-stage

  • Lock Type

    HS Dual Action

  • Leg Material

    Alloy

Mid-level Spreader

Jump to...
  • Transport Length

    320mm (12.60")

  • Diameter Range

    600 - 1000mm (23.62 - 39.37")

Telescopic Pan Handle

Jump to...
  • Width

    390 - 590mm (15.35 - 23.23")

General

Jump to...
  • Dimensions

    Rubber Feet: 95 x 55mm (3.74 x 2.17")
    Case: 260 x 320 x 1110mm (10.24 x 12.60 x 43.70")

  • Weight

    Fluid Head: 3.4kg (7.50 lbs)
    Tripod: 3.2kg (7.05 lbs)
    Mid-level Spreader: 0.79kg (1.74 lbs)
    Rubber Feet: 0.2kg (0.44 lbs)
    Telescopic Pan Handle: 0.38kg (0.84 lbs)
    Case: 4.8kg (10.58 lbs)

Models
Miller Arrowx 7 Fluid Head w/Sprinter II 2-Section Al Tripod & 993 Mid Spreader
$9,610.20

Ships from Manufacturer

Usually ships within 2-5 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Miller Arrowx 7 Fluid Head with 2-Section Heavy-Duty Al Tripod, 993 Mid Spreader
$9,813.50

Ships from Manufacturer

Usually ships within 2-5 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Miller Arrowx 5 Fluid Head w/Sprinter II 3-Section CF Tripod & 993 Mid Spreader
$9,853.40

Ships from Manufacturer

Usually ships within 2-5 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

MaterialAluminumAluminumCarbon Fiber
Weight7.1 to 10 lbs10.1 to 15 lbs10.1 to 15 lbs
Closed Length30.1" to 35"35.1" to 40"25.1" to 30"
Maximum Height55.1" to 65"55.1" to 65"55.1" to 65"
Leg Sections223
Maximum Load Capacity50.1 to 70 lbs50.1 to 70 lbs40.1 to 50 lbs
Quick ReleaseIncludes QRIncludes QRIncludes QR
Maximum Extended Height55.1" to 65"55.1" to 65"55.1" to 65"

About Miller ArrowX 7 + Sprinter II

Experience the unparalleled stability and versatility of the Arrowx 7 Fluid Head with Sprinter II 2-Section Aluminum Alloy Tripod and 993 Mid-Level Spreader. This professional-grade camera support system is designed for quick setup, exceptional stability, and flexible payload capacity, making it an ideal choice for Electronic Field Production (EFP), studio work, and Field Outside Broadcasting (OB).

The Arrowx 7 Fluid Head, a proud addition to the globally acclaimed Arrow series, sets new standards in professional camera support. It features a wide payload range of 6-25kg (13.23-55.12 lbs), precision fluid drag, and Miller's innovative 16 position CB Plus counterbalance system. This unique system offers eight larger counterbalance steps and a "one flick" switch for fine-tuning, ensuring rapid, accurate, and repeatable setup.

The Sprinter II 2-Section Aluminum Alloy Tripod complements the Arrowx 7 Fluid Head perfectly. Its patented design allows for high-level leg adjustment, eliminating the need for operators to bend down during setup. The tripod's dual-action leg lock system can be operated in unison or independently, providing speed and convenience without compromise. The black anodized leg assemblies are integrated with a precision-machined 100mm die-cast alloy bowl, ensuring maximum rigidity at any height.

The 993 Mid-Level Spreader offers continuous variable adjustment between maximum and minimum tripod height settings. This design ensures rapid setup and pull down by maintaining the tripod legs at an equal or pre-set distance relative to each other.

The system also includes pull-over rubber stirrup feet for extra grip and durability, a telescopic pan handle extendable by 200mm (7.9"), and a weatherproof ballistic nylon softcase with padded carry straps and a head-end cradle for secure transport.

With a maximum load capacity of 50.1 to 70 lbs, the Arrowx 7 Fluid Head with Sprinter II 2-Section Aluminum Alloy Tripod and 993 Mid-Level Spreader is suitable for a wide range of cameras, lenses, and accessories. Whether you're shooting still photography, film, or video production, this system delivers the flexibility, speed of setup, and accuracy of shot that professionals demand.

Miller ArrowX 7 + Sprinter II Features

  • ArrowX 7 Fluid Head:
  • Compact, lightweight and versatile
  • 7 selectable positions of fluid pan and tilt drag +0
  • 16 position CB Plus counterbalance system
  • Wide payload range 6-25kg (13.23-55.12 lbs)
  • Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions
  • Controls "all in one location" design for fast easy and practical use
  • Illuminated bubble level and pan-tilt drag controls
  • Precise floating pan-tilt caliper locks ensure bounce free on-off performance
  • Quick release, 120mm sliding camera platform with camera plate (euro)
  • Removable ball level stud allows for flat base mounting with 3/8" screw thread
  • Mitchell base adaptable
  • Robust construction for rugged outdoor shooting conditions
  • Optional second pan handle mount
  • Side mounting point for viewfinders and accessories
  • Sprinter II 1 Stage Alloy Tripod:
  • 100mm alloy bowl
  • High speed independent 1-stage dual leg locks
  • Durable black anodized alloy tubing
  • In-line carry handle
  • Suited for mid-level spreader
  • Integrated stainless steel spikes
  • Integrated transport clips
  • Mid-level Spreader:
  • Quick action spreader arm latches to attach or release from tripod
  • Safely adjust tripod legs to equal or pre-set distances
  • Adjustable center hub knob for smaller tripod footprints when required
  • Spreader latch and tripod swivel attachment prevents accidental damage
  • Rubber Feet:
  • Quick and easy pullover rubber stirrups to secure tripod legs
  • Tough durable composite polymer
  • Rubber foot pad for extra grip
  • Telescopic Pan Handle with Clamp:
  • Durable hi-strength black alloy tubing
  • Comfortable rubber pan handle grip
  • 200mm telescopic extension
  • Long clamp lever

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Achieve smooth, professional video with the ArrowX 7 fluid head's precise control.
  • Capture stable footage on any terrain using this tripod's robust alloy construction.
  • Enjoy versatile shooting with a wide 665-1430mm height range for varied perspectives.
  • Confidently support cameras up to 55 lbs with the tripod's impressive weight capacity.
  • Quickly adjust your setup with the 1-stage tripod and secure dual-action leg locks.
  • Easily transport your gear with the included soft case and lightweight design.

What's in the box:

  • Miller ArrowX 7 Fluid Head (1076)
  • Removable Ball Level Stud
  • Sprinter II 1-Stage Aluminum Alloy Tripod (1589)
  • Mid-Level Spreader (993)
  • Telescopic Pan Handle with Clamp (696)
  • Set of 3 Rubber Feet (475)
  • ArrowX Softcase for 1-Stage Tripod (3500)
  • Miller 3 Year Limited Warranty
