Miller Arrowx 1 Combo Live 30 Pedestal

Sturdy Construction, Maximum Stability, Simple To Use.

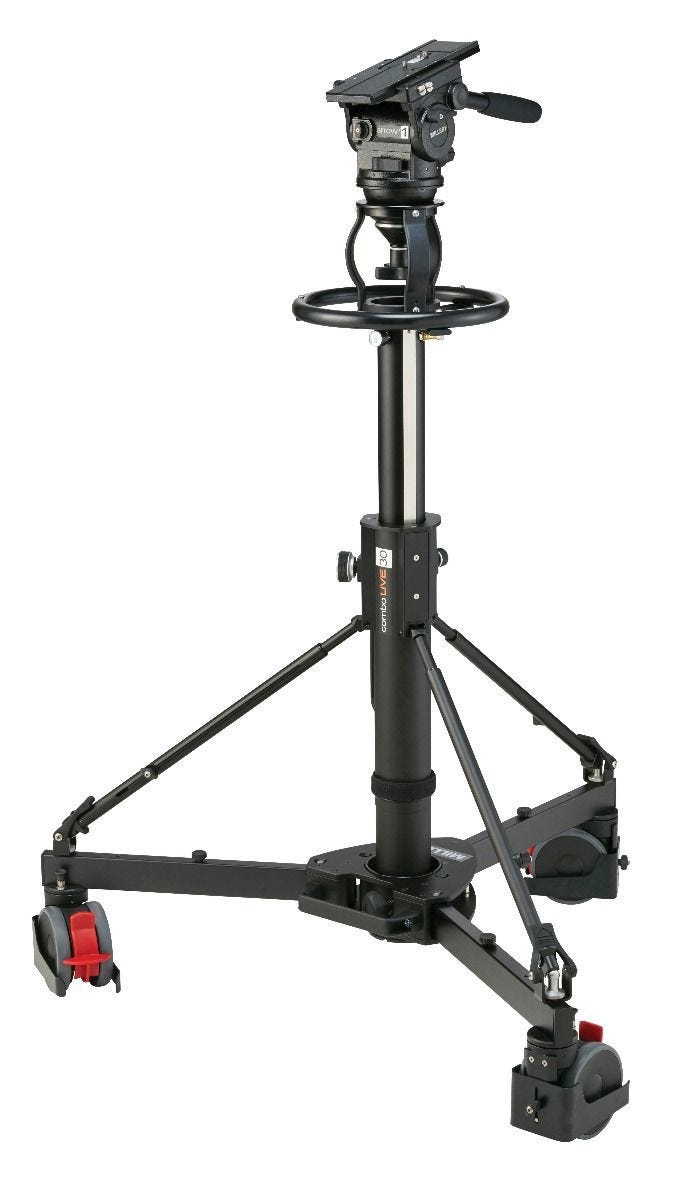

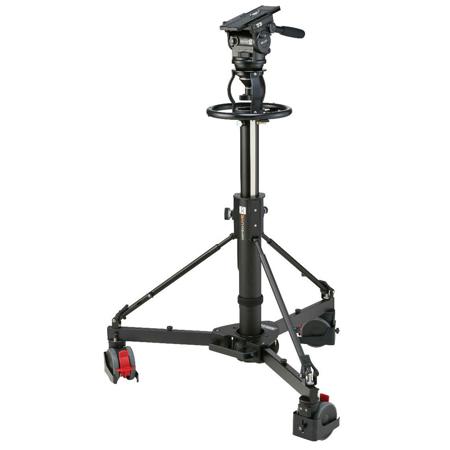

The 3237 Arrow x 1 Combo Live 30 pedestal offers light weight portability employing an air adjustable column system that delivers perfect camera balance with a height range of 972mm 38.2" up to 1537mm 60.5" with precise, smooth, low noise in-shot 450mm 17.7" elevation stroke for payloads 0-16.0kg (0-35.3lbs).

Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth effortless movement, featuring multiple wheel locking positions for linear or radius dolly tracking.

The 3237 comes fitted with Arrow x 1 fluid head which features a wide payload range, precision fluid drag and Miller's innovative 16 position CB Plus counterbalance system, Arrow x 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

This makes the Combo Live 30 Pedestal series a high performer offering perfect option for live broadcast studios looking for a versatile pedestal that punches above its weight.

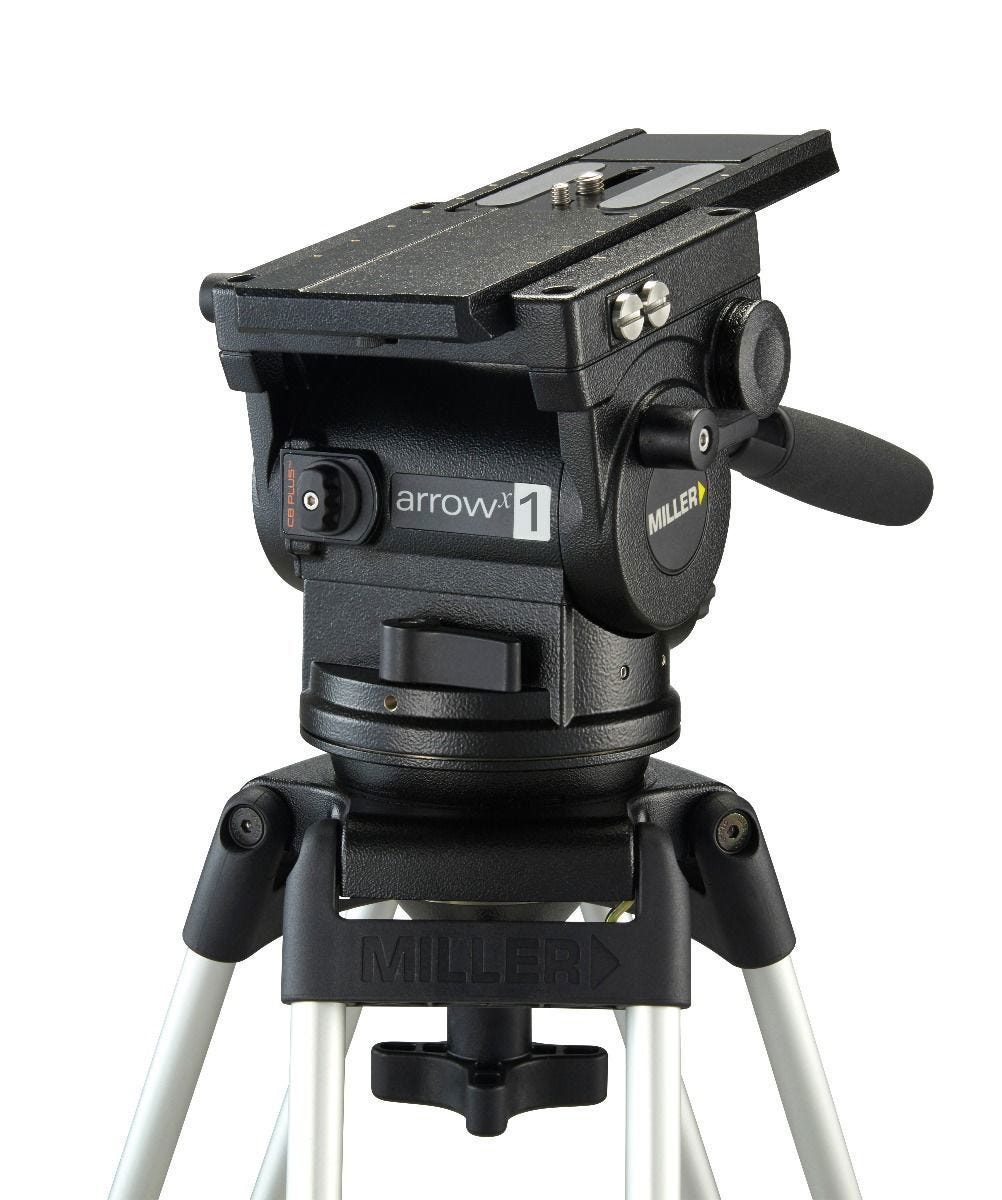

Arrowx 1 Fluid Head.

A key feature of the Arrowx series is Miller's patented 16 CB Plus technology - a unique sequential counterbalance design resulting in accurate and rapid setup. With a payload range of 0-16.0kg (0-35.3lbs) and 5 selectable fluid drag positions + 0, delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

CB Plus is an innovative sequential counterbalance design, taking traditional counter balancing a step forward, resulting in repeatable, accurate and rapid setup. CB Plus features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus one flick" switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

Combo Live 30 Pedestal.

Miller Combo Live pedestal series offers light weight portability with air adjustable column system that provides wide height range 810mm (31.8") up to 1690mm (66.5") with extension (opt.), precise, smooth, low noise in-shot 450mm (17.7") stroke for maximum payloads up to 30kg (66Ibs)

With its sturdy construction it delivers maximum stability with reliable and simple to use features. This makes the Combo Live Pedestal series a high performer offering perfect option for live broadcast studios looking for a versatile pedestal that punches above its weight.

• 5 selectable positions of fluid pan and tilt drag + 0
• 16 position CB Plus counterbalance system
• Perfect for payloads to 0-16.0kg (0-35.3lbs)
• Quick action column lock
• Smooth 350mm (13.8") stroke
• Independent 125mm dolly wheel brake system
• Sturdy adjustable cable guards
• Steering wheel diameter 294mm (11.6")
• Dolly tracking width 920mm (36.2")
