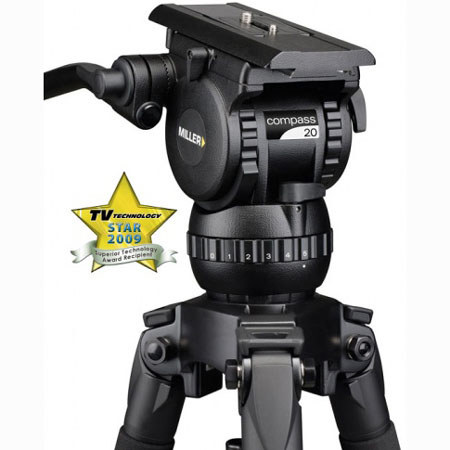

Miller System 1036 Compass 20 Fluid Head, Euro Plate
See all Miller items

Miller Compass 20 Fluid Head with Quick Release Mini Euro Plate, Supports Up to 26.5 lbs

SKU: MIC20
(1)

This item is no longer available.

Recommended Alternatives

Miller Air: Picture 1 regular
Miller Air Fluid Head, 1042
$658.35
Miller Skyline 70 Fluid Head: Picture 1 regular
Miller Skyline 70 Fluid Head
$8,566.00
Miller Arrowx 1: Picture 1 regular
Miller Arrowx 1 100mm Fluid Head
$4,066.95
Miller Arrowx 7: Picture 1 regular
Miller Arrowx7 Fluid Head, 1076
$7,222.85
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2013-02-11T19:00:00

Rated 5 out of 5

Great purchase!

This is a quality tripod. I've been through the cheaper tripods and if you want one that will last and grow with you, this is a great option. I did a lot of research and am extremely happy with my purchase. The only downside is the extra quick release plates are very expensive for a simple piece of aluminum, but there are ways around that.

ROBERT I.

Miller Compass 20 Specifications

  • Sliding Range

    60mm

  • Payload Range

    2-12

  • Payload Capacity

    12.00 kg (26.5 lbs)

  • Camera Platform Type

    Sliding camera platform with quick release Mini Euro plate

  • Camera Plate

    1/4" pin, 1/4" and 3/8" screws

  • Mounting

    75mm ball leveling

  • Tilt Drag

    5 selectable fluid drag positions + 0

  • Tilt Range

    +90/-75°

  • Tilt Lock

    Calliper disc brake system

  • Pan Drag

    5 selectable fluid drag positions + 0

  • Pan Range

    360 °

  • Pan Lock

    Calliper disc brake system

  • Counter balance System

    4 selectable positions

  • Temperature Range

    -40°C to +65°C

  • Pan Handle

    Fixed length

  • Illumination

    Bubble level

  • Height Above Bowl

    179 mm (7 in)

  • Weight

    2.70 kg (6 lbs)

  • Warranty

    Miller System 3 years warranty

About Miller Compass 20

FEATURED REVIEWS

Great purchase!

By ROBERT I.

This is a quality tripod. I've been through the cheaper tripods and if you want one that will last and grow with you, this is a great option. I did a lot of research and am extremely happy with my purchase. The only downside is the extra quick release plates are very expensive for a simple piece of aluminum, but there are ways around that.

The Miller System Compass 20 fluid head with 2-12kg payload range enables a large range of cameras and camera configurations to be used. From HDV/ DVCAM to XDCAM and P2HD cameras the Compass 20 fluid head is one of the most versatile pan/tilt heads available.

The Compass 20 incorporates the best pan and tilt fluid drag range in its class combined with a selectable counterbalance system. A quick release camera mounting system utilizing the Euro mini camera plates allows it to integrate easily into existing camera support inventories.

Miller Compass 20 Features

  • Five selectable positions of high performance drag plus a zero position.
  • Selectable counterbalance system for payloads between 2-12kg
  • Quick release, 60mm sliding camera platform with mini Euro plate mounting
  • Readily accessible controls and illuminated bubble level.
  • Superior pan/tilt locks utilizing disc brakes.
  • Replaceable tilt end rosette

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Five selectable positions of high performance drag plus a zero position
  • Selectable counterbalance system for payloads between 2-12kg
  • Quick release, 60mm sliding camera platform
  • Readily accessible controls & illuminated bubble level
  • Superior pan/tilt locks utilizing disc brakes
  • Replaceable tilt end rosette

What's in the box:

  • Miller 3 Year Warranty
