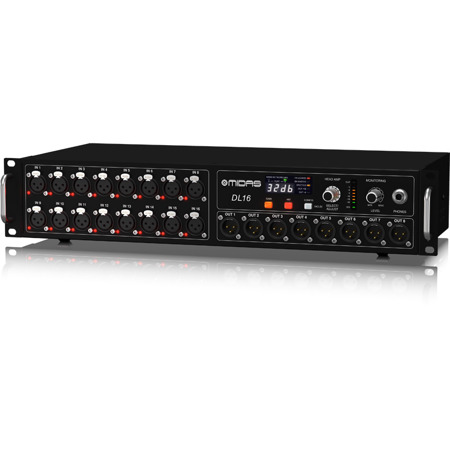

Midas DL16 16 Input and 8 Output Stage Box with 16 Midas Mic Preamps

SKU: MIDL16 MFR: 000-BI302-00010
Earn VIP Reward Points

Key Features

  • Midas DL16 offers 16 high-quality mic preamps for pristine audio capture every time.
  • Enjoy precise EQ control for each of the 16 input channels, shaping your sound perfectly.
  • Use the USB interface for seamless recording and playback, ideal for studio recording mixers.
  • Phantom power ensures compatibility with condenser mics, expanding your microphone options.
  • Low noise design guarantees clean, professional sound, enhancing your live sound experience.
  • Aux sends provide flexible monitoring options, great for personal monitoring systems.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Jason T : I am a dj

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Midas DL16 Specifications

  • Microphone Inputs

    16 XLR male 3-pin, Neutrik +48V phantom powered

  • Outputs (Analog)

    8 XLR female 3-pin, Neutrik Dual ADAT

  • Preamps

    16 Midas PRO

  • MIDI I/O

    For directional communication

  • Monitoring

    Ultranet personal monitoring system

  • Headphones

    1 x 1/4" / 6.3mm TRS

  • Network

    AES ports with Klark Teknik SuperMAC technology

  • Network Cables

    CAT5/5e for up to 328' / 99.98m

  • Power Supply

    Auto-ranging universal switch-mode power supply

  • UPC Code

    4033653070300

27 Accessories for Midas DL16 16 Input and 8 Output Stage Box with 16 Midas Mic Preamps

  • All Accessories (27)
  • Cables & Adapters (22)
  • Headphones (5)

About Midas DL16

After more than 40 years of design experience, the DL16 16 Input and 8 Output Stage Box with 16 Midas Mic Preamps stands as a testament to the renowned MIDAS sound. This stage box features 16 award-winning MIDAS PRO microphone preamplifiers, known for their warmth, depth, and ability to capture a precise sound image. These preamps, the very same found in the highly-acclaimed PRO Series consoles, have inspired generations of live sound engineers worldwide.

The DL16 is equipped with eight electronically balanced low impedance line level outputs, designed by MIDAS engineers to handle both balanced and unbalanced signals. This design eliminates worries about signal degradation, noise, and crosstalk interference. The stage box also boasts dual Cirrus Logic Digital to Analogue converters, which reduce noise floor and lower distortion, and post-DAC filtering to remove wide-band noise.

For in-ear applications, the DL16 offers ULTRANET personal monitoring system connectivity. This feature allows each performer to control their own monitor mix, freeing you to focus on delivering a flawless sonic experience to your audience.

The DL16 also comes with dual ADAT outputs, making it compatible with a wide range of ADAT-compatible outboard devices. This makes it a versatile choice for splitter mode and stand-alone digital multicore applications.

For larger setups, the DL16 features dual AES50 ports, allowing for cascading of multiple units without the need for a merger or router. Up to three DL16s can be daisy-chained to deliver 48 channels in and 24 out to the stage, all over a single shielded (STP) CAT5 cable.

Remote operation is made easy with the DL16's ability to communicate up to 100m via CAT5/5e cable. This stage box also offers programmable settings from front panel controls or console, status indicator LEDs on the front panel, and a headphones output assignable to any of the inputs or outputs for on-stage monitoring.

The DL16 also supports bidirectional communication between the FOH console and on-stage MIDI devices via MIDI In/Out, making scene automation a breeze.

Built for durability, the DL16 is housed in a rugged 2U rackmount chassis, making it ideal for portable applications. It also features Neutrik etherCON AES50 and ULTRANET network ports, ensuring a high-quality signal path from start to finish.

Designed and engineered in England, the DL16 16 Input and 8 Output Stage Box with 16 Midas Mic Preamps is a testament to MIDAS's commitment to delivering superior sound quality and versatility in live sound and recording applications.

Midas DL16 Features

  • 16-input, 8-output stage box equipped with award-winning MIDAS PRO microphone preamplifiers
  • Features ULTRANET personal monitoring system connectivity for in-ear applications
  • Equipped with dual ADAT outputs for compatibility with a range of digital devices
  • Supports remote operation up to 100m via CAT5/5e cable and MIDI In/Out for bidirectional communication
  • Housed in a rugged 2U rackmount chassis, perfect for portable applications
  • Engineered with Neutrik etherCON AES50 and ULTRANET network ports for superior signal quality

Key Features

  • Midas DL16 offers 16 high-quality mic preamps for pristine audio capture every time.
  • Enjoy precise EQ control for each of the 16 input channels, shaping your sound perfectly.
  • Use the USB interface for seamless recording and playback, ideal for studio recording mixers.
  • Phantom power ensures compatibility with condenser mics, expanding your microphone options.
  • Low noise design guarantees clean, professional sound, enhancing your live sound experience.
  • Aux sends provide flexible monitoring options, great for personal monitoring systems.

What's in the box:

  • Midas DL16 16 Input and 8 Output Stage Box with 16 Midas Mic Preamps
  • Midas 3 Year Limited Warranty
