Midas DL231 Specifications

  • XLR Connections

    1 x 5U rack I/O Box Houses: 24 x (XLR) mic/line Inputs (48 mic/line amps)
    24 x (XLR) Line Outputs

  • Resilience

    Dual Redundant Network Cables and Dual Redundant PSUs

  • I/O Box Inputs

    Connector: 3-pin XLR Balanced
    A/D Converter: 24-bit, 96kHz and 128 times Oversampling

  • I/O Box Outputs

    Connector: 3-pin XLR Balanced
    A/D Converter: 24-bit, 96kHz and 128 times Oversampling

  • MIDI: MIDI Connector

    In, Out and through on 5-pin DIN (for use with MIDAS Consoles only)

  • 48kHz I/O Digital System

    System Connector A (X): 1 x AES50 (24 channels of bi-directional digital audio) on EtherCON XLR
    Redundant Connector A (Y): 1 x AES50 (24 channels of bi-directional digital audio) on EtherCON XLR providing redundant backup
    System connector B (X): 1 x AES50 (24 channels of bi-directional digital audio) on EtherCON XLR
    Redundant connector B (Y): 1 x AES50 (24 channels of bi-directional digital audio) on EtherCON XLR providing redundant backup

  • 96kHz I/O Digital System

    System connector A (X): 1 x AES50 (24 channels of bi-directional digital audio) on EtherCON XLR
    Redundant connector A (Y): 1 x AES50 (24 channels of bi-directional digital audio) on EtherCON XLR providing redundant backup
    System connector B (X): 1 x AES50 (24 channels of bi-directional digital audio) on EtherCON XLR
    Redundant connector B (Y): 1 x AES50 (24 channels of bi-directional digital audio) on EtherCON XLR providing redundant backup

  • Analogue Input Characteristics

    Load Z: 10 kOhms
    Gain: -2.5dB to +45 dB
    Max. level: +24 dBu
    Connector: XLR

  • Analogue Output Characteristics

    Source Z: 50 Ohms
    Gain: 0 dB
    Max. level:+21 dBu
    Connector: XLR

  • 48kHz Digital I/O Characteristics

    Type: AES50
    Channels: 24
    Data Length: 24-bit
    I/O: Bi-directional
    Description notes: Conforms to AES50-2011
    Connector: EtherCON XLR

  • 96kHz Digital I/O Characteristics

    Type: AES50
    Channels: 24
    Data Length: 24-bit
    I/O: Bi-directional
    Description notes: Conforms to AES50-2011
    Connector: EtherCON XLR

  • Sampling Frequency

    48kHz / 96kHz

  • Dynamic Range @ 1kHz

    22Hz to 22kHz (at unity gain): > 107 dB

  • Maximum Gain

    45 dB

  • Crosstalk @ 1kHZ

    -90dB Physically Adjacent Input Channels

  • Crosstalk @ 10kHZ

    -90dB Physically Adjacent Input Channels

  • Frequency Response

    Gain:
    0dB (20Hz to 20kHz at +0dB to -1 dB)
    45dB (20Hz to 20kHz at +0dB to -1 dB)

  • Gain error at 1 kHz

    Gain:
    0dB at +1dB to -1 dB)
    45dB at +1dB to -1dB

  • Input CMRR Typical

    Gain:
    0dB (100Hz to 1kHz at 70dB)
    45dB (100Hz to 1kHz at 90dB)

  • Distortion at 0 dBu

    Gain:
    0dB (1kHz to 10kHz at 0.01%)
    45dB (1kHz to 10kHz at 0.03%)

  • Distortion at +20 dBu

    Gain:
    0dB (1kHz to 10kHz at 0.01%)
    45dB (1kHz to 10kHz at 0.03%)

  • Signal path noise 22Hz-22kHz unweighted

    Gain:
    0dB (Output Noise: -86dBu, EIN: -86dBu)
    45dB (Output Noise: -81dBu, EIN: -126 dBu)

  • Dynamic range 22Hz to 22kHz unweighted

    Gain:
    0dB (Maximum level: +21 dBu, Dynamic Range: 107dB)
    45dB (Maximum level: +21 dBu, Dynamic Range: 102dB)

  • Power Requirements

    100 V to 240 V AC +/-10%, 50 to 60Hz

  • Power Consumption

    <150 W

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Storage Temperature Range

    -20 to 60 deg. C / -4 to 140 deg. F

  • Dimensions

    5U x 410mm (16.14") Deep

  • Weight

    15kg / 33.07lbs

  • UPC Code

    696859306143

About Midas DL231

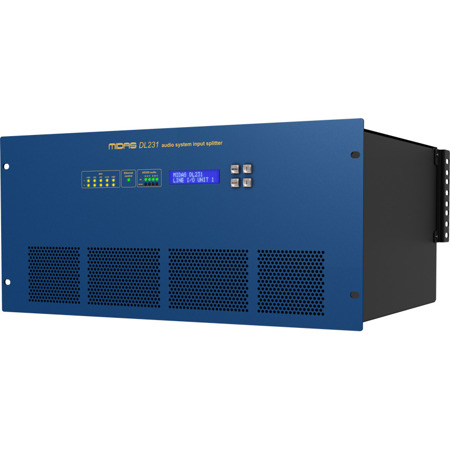

With today's tech-savvy concertgoers demanding more and more from the professional sound engineer, the need to increase fl exibility and functionality has never been greater. That's why the MIDAS Research and Development team have expanded upon the existing Microphone Splitter format to bring you the DL231.

MIDAS - The Legend in Sound Quality
With two independent MIDAS mic preamps per channel, the highest quality of sonic performance is guaranteed. And with dual-redundant network ports and power supplies, peace of mind comes as standard.

Analogue Meets Digital - The Best of Both Worlds
The DL231 combines the warmth and authenticity of analogue circuitry with the precision and agility of state-of-the-art digital techniques. Extreme care has been taken in the planning and execution of the PCB layout to maintain exceptional grounding and analogue/digital separation.

Versatility Without Compromise
As with all MIDAS products versatility without compromise is a priority, that's why the DL231 comes fitted with MIDI (In, Out and Thru) and an Ethernet Control port, plus four AES50 ports to handle the independent dual-redundant digital audio interfaces. The DL231 is capable of being switched between 24-bit 96 kHz and 48 kHz operation. A Mute All Outputs button is provided for convenient onstage re-patching - and the DL231 is powered by dual-redundant PSUs for superb reliability.
Housed in a road-ready, rugged rack-mountable chassis, the DL231 is ideally suited for transport and storage in standard flight cases (not included).

Integration Within the MIDAS Product Range
Styled to match their existing console aesthetic and designed to work with all MIDAS digital consoles, high performance I/O has never been easier to use - or more cost effective.

Additional Features
• 2 award-winning MIDAS microphone preamplifiers per channel with switchable +48 V phantom power
• 2 dual redundant AES50 network ports with independent phase-locked loop synchronization
• 24 electronically balanced output channels can be sourced from microphone preamplifiers or AES50 ports
• Remote operation up to 100 m via CAT5/5e cable
• 24 bit audio operation with 96 kHz sample rate
• All settings programmable from front panel controls or console
• PSU status indicator LEDs and configuration LCD display on front panel
• Features Neutrik etherCON AES50 network ports
• Rugged 5U rackmount chassis for durability in portable applications
• Dual redundant auto-ranging universal switch-mode power supplies
• Designed and engineered in England

What's in the box:

  • Midas DL231 24 Input/Output Active Microphone Splitter
  • Midas 3 Year Warranty
