Midas DL251 48 X 16 Fixed Format I/O Unit, 16 Line Outputs, 3 AES50 Ports, 5U 19" Rackmount

The Midas DL251 48 x 16 Fixed Format I/O Unit comes with forty-eight microphone/line inputs and sixteen line outputs. Limited to analog connections, the unit provides a more cost-effective solution for those not needing the flexibility of MIDAS modular I/O hardware.

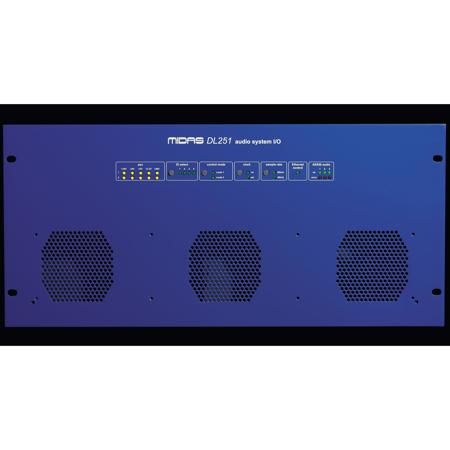

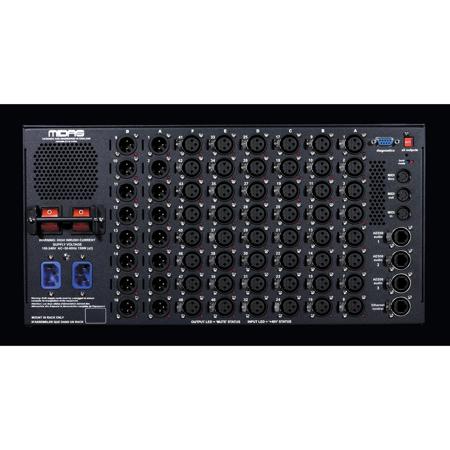

MIDI (In, Out, Thru) connectors and an Ethernet control port are fitted as standard. Three AES50 ports handle the (n+1) redundant digital audio interface. The DL251 is capable of being switched between 96 kHz and 48 kHz via the front panel switch. On the rear panel there is a Mute All Outputs button for onstage re-patching. The unit is also equipped with dual-redundant PSUs.
