Midas DL431 XL8 3-Way Input Splitter Unit

Each input on the Midas DL431 XL8 3-Way Input Splitter Unit feeds three separate preamps, two with separate gain controls and the third being fixed gain. The two variable-gain preamps feed separate ADCs, which then pass 96 kHz digital audio to the AES50 ports. Four discrete AES50 outputs supply dual-redundant digital audio to AES50 networks and allow for easy connection to any AES50 device (e.g. HD recorder, Network Bridge or mixing console).

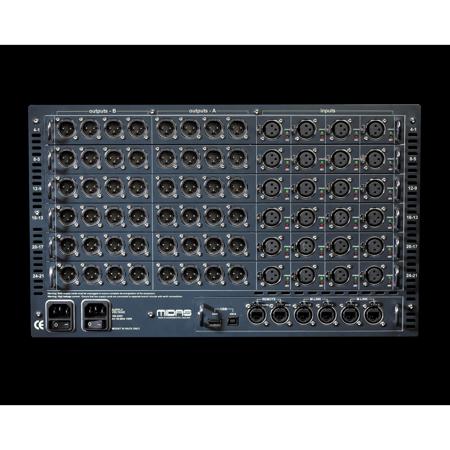

Two balanced analogue splits (sourced post each mic amp) are provided on the rear panel. The third, fixed-gain preamp feeds a transformer-isolated split on the front panel for recording or broadcast applications. The two variable gain preamps are remote controllable from two separate locations, e.g. FoH and Monitor positions. Front panel controls and local monitoring with integral headphone amplifier also make the DL431 usable as a standalone device. Integral dual-redundant power supplies ensure peace-of-mind at all times.
