Miktek MX-4 4-Channel Mixer
See all Miktek items

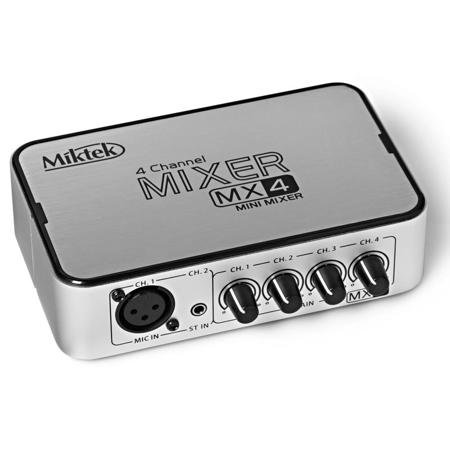

Miktek MX-4 4-Channel Mixer

SKU: MIKMX4
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Miktek MX-4 4-Channel Mixer Specifications

  • Frequency Response

    10Hz to 95KHz

  • Max. Input Level

    +21 dBu

  • Mic Input

    XLR Jack, balanced

  • Line Input

    2x 1/4" Jack

  • Stereo Input

    3.5mm Jack

  • Input Impedance

    1 Meg Ohm

  • Left Output

    1/4" Jack, unbalanced

  • Right Input

    1/4" Jack, unbalanced

  • Output Impedance

    100 Ohm each output

  • S/N Level

    -105dB

  • THD

    <0.005%

  • Power Supply

    18V DC

  • UPC Code

    091037927866

About Miktek MX-4 4-Channel Mixer

The Miktek MX-4 is a 4 channel mini mixer with high-end mixer features. It contains: a balanced mic input with an XLR connector, an included phantom power supply for connecting a condenser microphone, 2 high impedance line inputs and a stereo 1/8" (3.5mm) input, individual volume controls for each channel allowing you to create your own mix by adjusting the gain level one by one, and two 1/4" output connectors which provide both stereo and mono outputs.

• Four Channel mini stereo mixer
• Two 1/4" connectors for high impedance line input with volume control
• Balanced microphone XLR input with Phantom Power and volume control
• Stereo 3.5mm input with volume control
• Two 1/4" connector outputs
• 20 volt AC adapter

When powering up your MX-4, make sure that all wires are connected, and turn your mixer and any other outboard gear on. Then turn on your power amp or powered speakers. When powering down, turn your power amp or power speakers off before your mixer and any outboard gear.

Turn all four Channels GAIN knobs all the way to the left. Connect the supplied AC/DC adapter to the DC input on the rear panel of the MX4, and then plug the adapter into any standard outlet. Connect the MX-4's Left and Right OUTPUTs to your power amp or powered speaker using the 1/4" OUTPUT jack connectors.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Miktek MX-4 4-Channel Mixer
  • 20 Volt AC Adapter
  • Miktek Warranty
