27% Off

Midas M32R-LIVE 40-Channel Digital Console for Live Performance and Studio Recording, Bundle with XS-MIDM32R Flight Road Case

SKU: MIM32RLIVEK MFR: 000-C7S02-00010-K
Earn VIP Reward Points

PACKAGE INCLUDES:

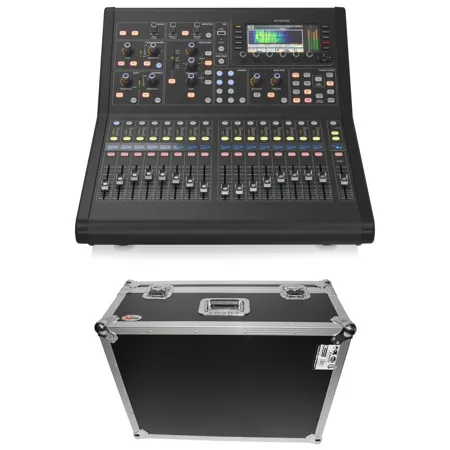

  • Midas M32R-LIVE Digital Console for Live Performance and Studio Recording
    Midas M32R-LIVE Digital Console for Live Performance and Studio Recording
  • +
  • ProX XS-MIDM32R ATA-300 Style Gig Ready Flight Road Case for Midas M32R Mixer
    ProX XS-MIDM32R ATA-300 Style Gig Ready Flight Road Case for Midas M32R Mixer
  • +
  • Show more

Key Features

  • Midas M32R LIVE: 40-channel digital mixer, perfect for live sound and studio recording.
  • Achieve pristine audio quality with Midas Pro Series mic preamps for crystal-clear sound.
  • Seamless USB interface: Effortlessly record and playback multi-track audio directly to your DAW.
  • Take command with precise EQ control, shaping your sound with ease for any venue.
  • Road-ready bundle includes a ProX flight case, ensuring your mixer's durability on tour.
  • Low noise performance: Experience clean, professional mixes free from unwanted interference.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Midas M32R-LIVE Specifications

Processing

Processing

Jump to...
  • Input Processing Channels

    32 Input Channels, 8 Aux Channels, 8 FX Return Channels

  • Output Processing Channels

    8/16

  • 16 aux buses, 6 matrices, main LRC

    100

  • Internal Effects Engines

    8/16 (True Stereo / Mono)

  • Internal Show Automation

    500/100 (structured Cues / Snippets)

  • Internal Total Recall Scenes

    100 (incl. Preamplifiers and Faders)

  • Signal Processing

    40-Bit Floating Point

  • A/D Conversion (8-channel, 96kHz ready)

    24-Bit, 114 dB Dynamic Range, A-weighted

  • D/A Conversion (stereo, 96 kHz ready)

    24-Bit, 120 dB Dynamic Range, A-weighted

  • I/O Latency (Console Input to Output)

    0.8 ms

  • Network Latency

    1.1 ms

Connectors

Jump to...
  • Midas PRO Series

    16, Microphone Preamplifier (XLR)

  • Talkback Microphone Input (XLR)

    1

  • RCA Inputs / Outputs

    2/2

  • XLR Outputs

    8

  • Monitoring Outputs

    2/2 (XLR / 1/4" TRS Balanced)

  • Aux Inputs/Outputs

    6/6 (1/4" TRS Balanced)

  • Phones Output

    (1/4" TRS) 1 (Stereo)

  • AES50 Ports (Klark Teknik SuperMAC)

    2

  • Expansion Card Interface

    32 Channel Audio Input / Output

  • ULTRANET P-16 Connector

    1 (No Power Supplied)

  • MIDI Inputs / Outputs

    1/1

  • USB Type A (Audio & Data Import/Export)

    1

  • USB Type B, Rear panel

    1 (for remote control)

  • Ethernet, RJ45, rear panel

    1 (for remote control)

Mic Input Characteristics

Jump to...
  • Design

    Midas PRO Series

  • THD+N (0 dB gain, 0 dBu output)

    < 0.01% unweighted

  • THD+N (+40dB gain, 0dBu to +20dBu O/P)

    < 0.03% unweighted

  • Input Impedance (Unbalanced / Balanced)

    10 kOhms / 10 kOhms

  • Non-Clip Maximum Input Level

    +23 dBu

  • Phantom Power (Switchable per Input)

    +48 V

  • Equivalent Input Noise

    -125 dBu 22 Hz-22 kHz, unweighted at +45 dB gain (150 Ohms source)

  • CMRR at Unity Gain (Typical)

    > 70 dB

  • CMRR at 40 dB Gain (Typical)

    > 90 dB

Input/Output Characteristics

Jump to...
  • Frequency Response at 48kHz Sample Rate

    0 dB to -1 dB 20 Hz - 20 kHz

  • Dynamic Range, Analogue In-Analogue Out

    106 dB 22 Hz - 22 kHz, unweighted

  • A/D Dynamic Range

    109 dB 22 Hz - 22 kHz, unweighted, Preamplifier and Converter (Typical)

  • D/A Dynamic Range

    109 dB 22 Hz - 22 kHz, unweighted, Converter and Output (Typical)

  • Crosstalk Rejection at 1 kHz

    100 dB (Adjacent Channels)

  • Output level, XLR Connectors

    +4 dBu / +21 dBu (Nominal / Maximum)

  • Output Impedance, XLR Connectors

    50 Ohms / 50 Ohms (Unbalanced / Balanced)

  • Input impedance, TRS Connectors

    20 kOhms / 40 kOhms (Unbalanced / Balanced)

  • Non-Clip Maximum Input Level

    +21 dBu (TRS Connectors)

  • Output Level, TRS (Nominal / Maximum)

    +4 dBu / +21 dBu

  • Output Impedance, TRS

    50 Ohms / 50 Ohms (Unbalanced / Balanced)

  • Phones Output Impedance

    40Ohms / +21 dBu (Stereo) Maximum output Level

  • Residual Noise Level

    -85 dBu 22 Hz-22 kHz, unweighted (Out 1-16 XLR Connectors, Unity Gain)
    -88 dBu 22 Hz-22 kHz, unweighted (Out 1-16 XLR Connectors, Muted)
    -83 dBu 22 Hz-22 kHz, unweighted (TRS and Monitor out XLR Connectors)

Display

Jump to...
  • Main Screen

    5" TFT LCD, 800 x 480 Resolution, 262k Colors

  • Channel LCD Screen

    128 x 64 LCD with RGB Color Backlight

  • Main Meter

    18 Segment (-45 dB to Clip)

  • Switch-Mode Power Supply

    Auto-Ranging 100-240 VAC (50/60 Hz) +/- 10%

  • Power Consumption

    70W

Physical

Jump to...
  • Operating Temperature Range

    5 to 40 deg. C (41 to 104 deg. F)

  • Dimensions

    18.8 x 24.3 x 8.2" (477.52 x 617.22 x 208.28mm)

  • Weight

    31.5 lbs (14.29kg)

  • UPC Codes

    192223242456, 653341305831, 019372407478

Models
Midas M32R-LIVE 40-Channel Digital Console with XS-MIDM32R Flight Road Case
$2,799.00

$3,828.99

Save:$1,029.99 (27%)

In Stock

Kino Flo Diva-Lite 21 LED DMX Fixture with Center Mount & Travel Case, Universal
$2,469.25

$2,905.00

Save:$435.75 (15%)

Special Order

Generally ships in 7-14 days, subject to availability

Behringer WING 48-Channel 28-Bus Digital Mixing Console,w/XS-BWING W Flight Case
$3,299.00

$3,448.99

Save:$149.99 (4%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Number of Channels40-48
CircuitryDigital-Digital
Number of Bus Outs24-28
Power--AC Powered
Kit Stylewith Casewith Casewith Case
Power Source-AC/DC-
Color Temperature-Bi-Color-
Battery Connection-XLR-

About Midas M32R-LIVE

What sets the M32R-LIVE 40-Channel Digital Console apart is its fusion of classic British console designs with cutting-edge technology, redefining the capabilities of a rack-mountable digital desktop mixing console. Inspired by the luxury and high-performance car industry, the M32R-LIVE console boasts a sleek design and high-end construction materials, including carbon fiber, ensuring unparalleled durability and strength.

The M32R-LIVE console is not just about aesthetics; it's about delivering legendary Midas sound quality. With its groundbreaking 192 kHz precision, future-proof floating point audio engine, and ultra-low-latency design, this console offers a revolutionary mid-format live console experience. Its 40 channels and 24 bus outs provide a wide range of options for recording and live performance, making it an ideal choice for professional audio engineers and performing artists.

The console's advanced Midas preamplifier design eliminates typical imbalances of gain-setting stages, improving the common-mode rejection ratio (CMRR) and reducing harmonic distortion to an almost immeasurable level. This results in a transparent, open, and dynamic sound that has become synonymous with the Midas brand.

The M32R-LIVE console is built for the future, with a rock-solid proprietary operating system and a 0.8 ms audio engine that ensures state-of-the-art audio performance for years to come. It also features motorized faders, LCD scribble strips, integrated personal monitor mixing, and high-speed digital audio networking as standard features.

The console comes bundled with the XS-MIDM32R Flight Road Case, providing a safe and secure way to transport your console. The Klark Teknik DN32-LIVE expansion module offers 32-channel bidirectional audio I/O via USB 2.0 for both live performance and studio recording, plus comprehensive remote operation of your DAW via HUI/Mackie Control emulation.

The M32R-LIVE console is more than just a piece of equipment; it's your "mind-to-sound" interface, offering an intuitive user interface and efficient layout that makes mixing a seamless experience. Whether you're recording in a studio or performing live, the M32R-LIVE 40-Channel Digital Console delivers the power of digital in your hands, without compromise.

Midas M32R-LIVE Features

  • Live performance and studio recording digital console with up to 40 simultaneous input channels
  • 16 award-winning Midas PRO microphone preamplifiers
  • 25 time-aligned and phase-coherent mix buses
  • AES50 networking allows up to 96 inputs and 96 outputs
  • 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
  • Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files
  • High-performance aluminum and high-impact steel structure
  • Rack mount brackets included for ultimate flexibility
  • 40 bit floating point digital signal processing
  • 8 DCA and 6 mute groups
  • 8 digital signal processing effects engines
  • 17 Midas PRO motor faders
  • Daylight viewable 5" full color TFT display screen
  • 32 x 32 channel USB 2.0 audio interface
  • DAW remote control emulations of Mackie Control and HUI protocols
  • Auto-ranging universal switch-mode power supply

Key Features

  • Midas M32R LIVE: 40-channel digital mixer, perfect for live sound and studio recording.
  • Achieve pristine audio quality with Midas Pro Series mic preamps for crystal-clear sound.
  • Seamless USB interface: Effortlessly record and playback multi-track audio directly to your DAW.
  • Take command with precise EQ control, shaping your sound with ease for any venue.
  • Road-ready bundle includes a ProX flight case, ensuring your mixer's durability on tour.
  • Low noise performance: Experience clean, professional mixes free from unwanted interference.

What's in the box:

  • Midas M32R-LIVE 40-Channel Digital Console
  • Power Cord
  • Set Rackmount Brackets
  • Midas 10 Year Limited Warranty
  • Bundle Includes:
  • ProX XS-MIDM32R ATA-300 Style Gig Ready Flight Road Case
