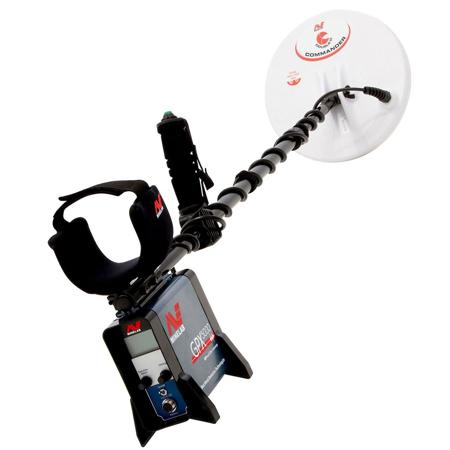

Minelab GPX 5000 Gold Metal Detector with 11" Round Double-D and 15x12" Monoloop Search Coils, Advanced Pulse Induction

SKU: MIN33000420

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Cherise G : Information detailed out in video

Reviews about this item

Review Summary

Minelab GPX 5000 Specifications

  • Application

    Gold Prospecting & Deep Relic

  • Technology

    MPS, DVT & SETA

  • Frequency/Transmission

    Bi-Level, Advanced Pulse Induction

  • Coil (standard)

    11" Round Double-D plus 15 x 12-inch Monoloop

  • Audio Output

    6.35mm (1/4") headphone/speaker jack

  • Headphones Supplied

    Koss 100 ohm headphones

  • Visual Display

    64 x 128 pixels, transflective with white backlight

  • Backlight

    Yes with adjustable automatic 'time-out'

  • Memory

    Setting changes saved automatically and remain until changed or reset. Factory Presets can be restored on start-up

  • Detect Modes

    General, Deep, Hi-Mineral, Patch, Hi-Trash & Pinpoint (all user programmable)

  • Discrimination

    Iron Reject: range 1 to 10 & Off (All Metal)

  • Timings

    Normal, Sensitive Extra, Enhance, Sharp, Sensitive Smooth, Coin/Relic, Salt/Gold & Fine Gold

  • Audio tone

    Variable Control 1 to 100

  • Audio Type

    Quiet, Normal, Deep & Boost

  • Ground Balance

    Automatic Ground Balance, Fixed & Tracking: Slow, Medium & Fast. Quick-Trak button

  • Ground Balance Type

    General, Specific & Ground Balance Off

  • Sensitivity Adjust

    Rx Gain 1 to 20

  • Tune / Noise Cancel

    Automatic & Manual 0 to 255

  • Threshold

    Adjustable turn control

  • Target Volume Adjust

    Target Volume 1 to 20. Volume Limit 1 to 20

  • Battery

    Lithium-ion rechargeable battery 68Wh with in-built amplifier for speaker use. Approx. 12 Hours use. Supplied with mains and vehicle charger

  • Low battery alert

    Audio alert

  • Length

    43.3" (110cm) - 51.2" (130cm)

  • Weight

    Metal Detector: 5.3 lb (2.4kg) (including 11" coil & excluding battery and accessories)
    Battery: 1.7 lb (780g)

  • UPC Code

    811493016351

5 Accessories for Minelab GPX 5000 Gold Metal Detector with 11" Round Double-D and 15x12" Monoloop Search Coils, Advanced Pulse Induction

  • All Accessories (5)
  • Metal Detector Accessories (5)

About Minelab GPX 5000

Superior Gold Detecting!

High performance MPS technology combined with the versatility of many search coil options make the GPX 5000 a favourite for serious prospectors.

More features and functions make the GPX 5000 the second best gold detector in the world!

The GPX 5000 sets a high benchmark in gold detecting technology. Featuring Minelab's exclusive technologies, Multi Period Sensing (MPS), Dual Voltage Technology (DVT) and Smart Electronic Timing Alignment (SETA), the high performance GPX 5000 is extremely capable of finding more gold than other brand detectors. From sub-gram nuggets to the elusive 'retirement nugget' and everything in between, with the GPX 5000, you can find it.

Using unique features, functions and industry leading patented technology ensure the GPX detectors run smooth and quiet in even the most severe ground conditions, whilst still maintaining excellent depth and sensitivity to gold nuggets.

The 8 Timings available on the GPX 5000 change the digital switching and processing of the electronics in the detector. Each Timing has been designed for optimum performance under certain conditions, so it is like having a different detector each time you select a new Timing.

Also great for the specialist relic and jewellery hunter who demands the best, and wants to recover targets deeper than ever before. Easy for the beginner through to the professional - you can switch on and go with six factory preset Search Modes and automatic functions.

Features

MPS, DVT & SETA Technology

8 Timings make the GPX 5000 very versatile. It's like having 8 detectors in 1. In addition to five of the Timings found on the previous model the GPX 5000 introduces three new Timings: Coin/Relic, Salt/Gold and Fine Gold.

Fine Gold Timing gives even more depth and sensitivity than Enhance - bring home more nuggets even from ground thought to be completely worked out!

Salt/Gold Timing is great for all nugget sizes in salty ground - outstanding at the beach!

Coin/Relic Timing is the deepest ever for benign ground conditions.

Improved Enhance Timing for more depth

Improved electronics for increased target sensitivity and ground balance performance

Six preset Search Modes gives you easy switch on and go detecting. In addition to General and Deep search are: Hi-Mineral, Patch, Hi-Trash and Pinpoint. All six Search Modes can be modified to your personal favourite settings. Menu accessible Search Modes can also be renamed.

Increased Rx Gain adjustment allows you more precise sensitivity control for optimum performance.

Automatic Ground balance options make it easy to adjust the detector to suit all ground conditions. e.g. (Fixed, Tracking, Tracking speed, Ground Balance Type, Quick-Trac button).

Audio adjustments to maximize target signals for your personal hearing ability e.g. (Threshold, Tone, Audio Type, Signal Peak, Response, Target Volume, Volume limit, Stabilizer).

Iron Reject adjustable to suit the iron trash level where you are detecting.

Motion control, adjustable to match your sweep speed and optimise target responses.

Tune (also known as Noise Cancel) - Automatic and Manual options to minimize electrical interference.

Backlight so that you can read the LCD menu in any light, allowing you to detect day or night. The back light also has an adjustable timeout to help preserve battery power.

Lightweight Li-ion Battery with inbuilt Speaker Booster capability

Two coils as standard: 11" Double-D coil plus 15 x 12-inch Monoloop coil giving you added versatility and value.

Languages: English, Spanish, Russian & Arabic (manual only)

Minelab GPX 5000 Features

  • 15" large Monoloop and 11" Double-D coils
  • Extra high sensitivity range (1-20)
  • 8 Timings options
  • Superior technology

Key Features

  • 15" large Monoloop and 11" Double-D coils
  • Extra high sensitivity range (1-20)
  • 8 Timings options
  • Superior technology

What's in the box:

  • GPX 5000 11 " Round Double-D & 15x12 " Monoloop Coil Metal Detector
  • Lithium-Ion Battery with Vehicle Charger
  • Koss 100 ohm Headphones
  • Minelab 3 Year Limited Warranty
