23% Off

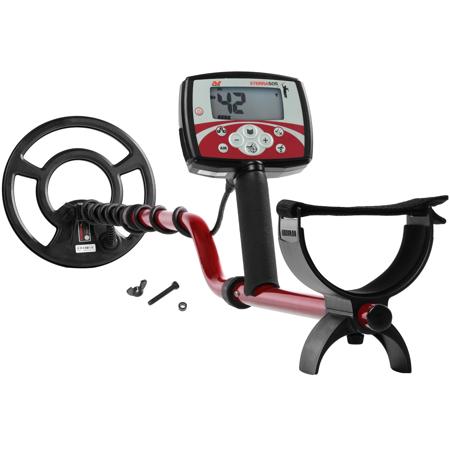

Minelab X-TERRA 505 All Terrain Metal Detector with 9" Concentric Search Coil, 7.5kHz Operating Frequency with Supplied Coil

SKU: MIN37050113 MFR: 3705-0113
Earn VIP Reward Points

Key Features

  • Unearth history with the X-TERRA 505 metal detector, featuring precise discrimination control.
  • Experience superior detection depth with the 9" concentric coil, perfect for varied terrains.
  • Customize your treasure hunts using adjustable frequency control for optimal performance.
  • Pinpointing function accurately locates targets, saving time and maximizing your finds.
  • Built for durability, the Minelab X-TERRA 505 withstands rugged outdoor conditions.
  • Long-lasting battery life ensures extended use, so you can explore without interruption.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Minelab X-TERRA Specifications

  • Application

    Coin, Relic, Jewellery & Beach

  • Technology

    VFLEX

  • Frequency/Transmission

    3, 7.5 & 18.75kHz - change frequency by changing coils

  • Coil (standard)

    9" Concentric lightweight, waterproof 7.5kHz

  • Audio Output

    Internal speaker & 6.35mm (1/4") headphone jack

  • Visual Display

    Large monochrome 76mm x 37mm (3" x 1.75") positive reflective LCD

  • Memory

    Remembers user settings even if batteries are removed

  • Depth Indication

    5 depth indication icons

  • Detect Modes

    (1) Coin & Treasure

  • Discrimination

    Three factory Discrimination patterns that can be personalised & All Metal. 19 segment discrimination scale

  • Audio tone

    1, 2, 3, 4 & Multi

  • Ground Balance

    Manual adjustment 0 to 50

  • Pinpoint

    Audio & visual

  • Sensitivity Adjust

    Adjustable (1 to 20)

  • Tune / Noise Cancel

    5 channels (-2, -1, 0, 1, 2)

  • Threshold

    Adjustable (-5 to 25)

  • Target Volume Adjust

    Adjustable (0 to 30)

  • Battery

    4x AA Alkaline/Carbon/Lithium or NiMH/NiCad (not included)

  • Low battery alert

    Audio & visual alert

  • Length

    48 - 56" (122 - 142cm)

  • Weight

    2.9 lb (1.3kg) (ex. battery)

  • UPC Code

    811493012957

14 Accessories for Minelab X-TERRA 505 All Terrain Metal Detector with 9" Concentric Search Coil, 7.5kHz Operating Frequency with Supplied Coil

  • All Accessories (14)
  • Batteries & Power Supply (2)Required Item
  • Metal Detector Accessories (12)

About Minelab X-TERRA

You can elevate your treasure-hunting adventures with the sophisticated X-TERRA 505 All Terrain Metal Detector, a superior mid-range device in the acclaimed Minelab X-TERRA Series. Building upon the solid foundation of the 305 model, the X-TERRA 505 boasts enhanced capabilities, delivering exceptional depth and precise discrimination for a truly efficient search experience.

The X-TERRA 505 is engineered to be the quintessential all-purpose detector, seamlessly transitioning between coin & treasure and relic hunting thanks to its versatile 3 frequency capability. With Minelab's innovative VFLEX technology, this detector represents a new generation of single frequency detectors, allowing you to modify the operating frequency simply by switching out the search coils. This flexibility is further enhanced by the detector's compatibility with a variety of coils, including low frequency (LF) 3kHz coils for detecting larger, deeper targets, as well as medium 7kHz and high 18.75kHz frequencies to suit a range of conditions and target sizes.

The X-TERRA 505's advanced Ground Balance feature has an extended range of 0-50, empowering you to fine-tune the detector to overcome ground mineralization challenges. With three preset detecting patterns that can be personalized, along with an All Metal mode, you have the freedom to tailor your detecting strategies to your specific needs.

The device offers a broad discrimination range, enabling more nuanced identification of highly conductive targets. Its enhanced Noise Cancel feature now includes five manual settings, providing a wider selection of detecting channels to minimize interference. The Target Volume Adjust range has also been expanded to 0-30, ensuring clearer and more distinct target signals.

Threshold adjustment is another customizable feature, with a range of -5 to 25, allowing you to detect the slightest variations from both small, shallow targets and large, deep ones. The X-TERRA 505's fast recovery Pin-Point function includes a variable tone and graphical indicator, making it easier to pinpoint your finds accurately.

A continuous depth indicator, which remains active even in Pinpoint mode, and a positive reflective LCD display enhance the user interface, making it straightforward and user-friendly. Operating on just 4 x AA batteries and weighing in at a mere 1.3kg, the X-TERRA 505 is designed for comfortable, extended use, ensuring your metal detecting sessions are as enjoyable as they are productive.

Whether you're a seasoned detectorist or new to the hobby, the X-TERRA 505 All Terrain Metal Detector with its 9" Concentric Search Coil and 7.5kHz operating frequency is your reliable companion for uncovering hidden treasures across diverse terrains.

Minelab X-TERRA Features

  • Great for getting started!
  • 19 Target ID discrimination
  • Manual ground balance
  • 9" 7.5 kHz Concentric coil
  • Change Coil = Change Frequency
  • Lightweight
  • Turn on and go pre-sets
  • Depth indication
  • Ground Balance
  • Multi-tone IDs
  • Pinpoint
  • Discrimination
  • Threshold
  • Noise Cancel

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Unearth history with the X-TERRA 505 metal detector, featuring precise discrimination control.
  • Experience superior detection depth with the 9" concentric coil, perfect for varied terrains.
  • Customize your treasure hunts using adjustable frequency control for optimal performance.
  • Pinpointing function accurately locates targets, saving time and maximizing your finds.
  • Built for durability, the Minelab X-TERRA 505 withstands rugged outdoor conditions.
  • Long-lasting battery life ensures extended use, so you can explore without interruption.

What's in the box:

  • X-TERRA 505 Universal 9 " Concentric Coil Metal Detector
  • Minelab 3 Year Limited Warranty
