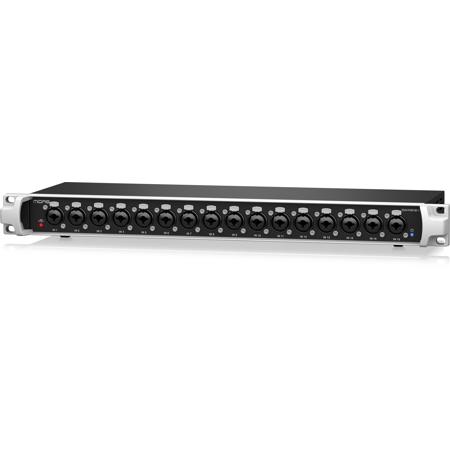

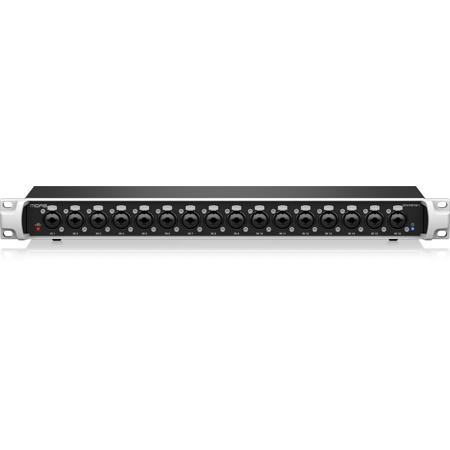

Midas DN4816-I StageConnect Interface with 16 XLR Inputs

SKU: MIP0DW0 MFR: 000-DW002-00010
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with this digital audio interface's 24-bit converters.
  • Achieve ultra-low latency (<=0.05 ms) for seamless real-time audio production and recording.
  • Connect up to 16 XLR inputs, perfect for expanding your studio or live sound setup.
  • Utilize StageConnect for streamlined connectivity, transmitting power and audio over XLR.
  • Enjoy stable driver performance for reliable integration with your favorite DAW software.
  • Remotely power via SLAVE XLR, offering flexible power options for your audio interface.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Midas DN4816-I Specifications

Processing

Processing

Jump to...
  • D/A Conversion

    24-Bit, 48/44.1 kHz, 114 dB

  • StageConnect Bus Capacity

    32 ch, 24-Bit PCM audio

  • I/O Latency

    <=0.05 ms

Connectors

Jump to...
  • Analog Inputs

    16x XLR female jacks, balanced

  • Impedance

    20 Ohm unbalanced / 40 Ohm balanced

  • Input Level

    Max. +21 dBu

  • Ultranet

    2x RJ45

  • Shielded CAT5e Cable Length

    Max. 246.06' (75m)

  • StageConnect

    1 XLR male, 1 XLR female

  • Shielded Bal. 110-Ohm DMX Cable

    Max. 131.23' (40m)

  • USB

    Type B

  • Frequency Response

    20 Hz - 20 kHz +/-0.2 dB

  • Dynamic Range

    106 dB

  • Cross Talk Rejection @1 kHz

    106 dB (adjacent channels)

  • Noise (20 Hz - 20 kHz Bandwidth)

    -106 dBFS

  • Distortion

    0.004% / 1 kHz / 0 dBu in

  • Power Supply

    12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W)

  • Power Consumption

    8.5 W

Physical

Jump to...
  • Standard Operating Temperature Range

    41 Degree - 113 Degree F (5 Degree - 45 Degree C)

  • Dimensions

    1.9 x 19 x 6.7" (49 x 483 x 169mm)

  • Weight

    4.9 lbs (2.2kg)

  • UPC Code

    4033653071710

About Midas DN4816-I

It's time to elevate your audio experience with the DN4816-I StageConnect Interface, a versatile and reliable solution for expanding your line inputs. This high-quality audio interface offers 16 analogue inputs, perfect for connecting wireless receivers or other external audio players to your monitor or FOH console.

The DN4816-I StageConnect Interface is designed to seamlessly integrate with other StageConnect devices. With a single XLR cable, you can achieve multi-channel audio transmission, making it an ideal choice for live performances and recording studios. The scalability of the I/O options ensures easy connectivity, whether you're setting up on stage or in your side rack.

One of the standout features of the DN4816-I StageConnect Interface is its ability to daisy-chain with other devices in the DN48XX Series. This automatic negotiation of channels for respective connectivity simplifies your setup process, allowing you to focus on delivering the best sound quality.

The DN4816-I StageConnect Interface is part of the innovative StageConnect ecosystem, a new interface standard developed by Music Tribe. This ecosystem boasts impressive technical specs, including 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, and latency below 0.05 ms.

Whether you're connecting wireless systems, external effects, or playback systems, the DN4816-I StageConnect Interface can be easily daisy-chained to meet your specific I/O configurations. With a total bandwidth of 32 channels, you can achieve all combinations from 32 inputs over 16 in and outputs in parallel to 32 outputs using different combinations of DN48XX interfaces connected using a simple XLR cable.

The DN4816-I StageConnect Interface also offers power via DC or StageConnect. Each SC Master provides 18W of power that can be used by devices in the chain. This feature, coupled with the StageConnect Calculator (SSC Tool), allows you to check your setup for power consumption, DMX cable lengths, audio routing, and other parameters.

The DN4816-I StageConnect Interface also features 16 balanced line level combo inputs, ideal for carrying signals from external hardware like wireless microphones. This feature not only saves local inputs but also reduces setup time and increases reliability.

The DN4816-I StageConnect Interface is also compatible with the well-established Ultranet technology, which transmits up to 16 independent channels of 24-bit digital audio via a single CAT5 cable between compatible digital devices. This seamless integration allows you to connect with over 1 million Ultranet products in the market, such as the P16 monitoring system, AIR mixers, and Turbosound speakers.

In summary, the DN4816-I StageConnect Interface is a durable, user-friendly, and high-quality audio interface that offers versatile connectivity options and advanced features for professional musicians, producers, and engineers.

Midas DN4816-I Features

  • Breakout box with 16 balanced XLR line inputs for StageConnect and Behringer Ultranet systems
  • Can be used as analogue input box for other StageConnect devices, Turbosound iQ speakers or Behringer WING and Ultranet receivers such as P16 personal monitoring mixers
  • StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
  • Two units can be cascaded for a total of 32 low-latency analogue line inputs feeding the StageConnect bus
  • Flexible connectivity on stage and between side racks using any balanced microphone cable
  • Supports bi-directional audio configurations, with control data and 12 VDC / 18 W remote power
  • Master mode allows exchanging multichannel audio with a chain of other StageConnect devices
  • Slave mode for use with StageConnect-enabled mixing consoles, stageboxes and hubs
  • Dual Ultranet outputs for feeding Behringer P16 personal monitoring and Turbosound iQ speaker systems directly from StageConnect bus and from analogue inputs
  • External power supply for standalone use and offering remote power on the StageConnect Master output

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with this digital audio interface's 24-bit converters.
  • Achieve ultra-low latency (<=0.05 ms) for seamless real-time audio production and recording.
  • Connect up to 16 XLR inputs, perfect for expanding your studio or live sound setup.
  • Utilize StageConnect for streamlined connectivity, transmitting power and audio over XLR.
  • Enjoy stable driver performance for reliable integration with your favorite DAW software.
  • Remotely power via SLAVE XLR, offering flexible power options for your audio interface.

What's in the box:

  • Midas DN4816-I StageConnect Interface with 16 XLR Inputs
  • Power Adapter
  • Midas 3 Year Limited Warranty
