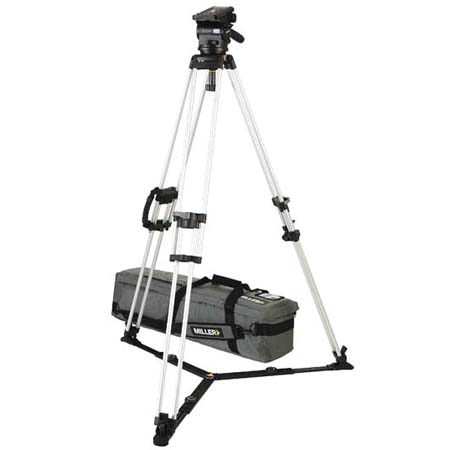

Miller 2-section Aluminum Tripod with Arrow 25 Fluid Head
See all Miller items

Miller Arrow 25 Fluid Head with Sprinter II Single Stage Alloy Tripod and Sprinter II Ground Spreader, Supports Up to 30 lbs

SKU: MISA251589GS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Miller 25 1589 GS Specifications

  • Fluid Head Payload Range

    3.5 to 14 kg (7-30 lbs)

  • Fluid Head Camera Plate

    1/4"+pin, 1/4"+3/8"

  • Fluid Head Mounting

    100mm ball leveling

  • Fluid Head Tilt Drag

    5 selectable fluid drag positions + 0

  • Fluid Head Pan Rotation

    360°

  • Fluid Head Pan Lock

    Calliper disc brake system

  • Fluid Head Temperature Range

    -40°C to +65°C

  • Fluid Head Pan Handle

    Fixed length

  • Payload Capacity

    Fluid Head: 14 kg (30.8 lb)
    Tripod: 45 kg (99 lb)

  • Fluid Head Height Above Bowl

    162 mm (6.4 in)

  • Fluid Head Camera Platform Type

    Quick release and sliding platform

  • Fluid Head Tilt Lock

    Calliper disc brake system

  • Fluid Head Tilt Range

    +/-90°

  • Fluid Head Pan Drag

    5 selectable fluid drag positions + 0

  • Fluid Head Counterbalance

    4 selectable positions

  • Fluid Head Illumination

    Bubble level and pan/tilt indicators

  • Tripod Bowl Diameter

    100 mm (3.9 in)

  • Tripod Lock Type

    Sprint-Loks

  • Tripod Maximum Height

    1430 mm (56.3 in)

  • Tripod Minimum Height

    635 mm (25 in)

  • Tripod Transport Length

    840 mm (33.1 in)

  • Tripod Tube Type

    Alloy

  • Tripod Construction

    Single Stage

  • System Transport length

    1002 mm (39.4 in)

  • System Height range

    797-1587 mm (31.4-62.5 in)

  • Weight

    Fluid Head: 3 kg (6.6 lb)
    Tripod: 3.1 kg (6.8 lb)
    System: 10.45 kg (23.0 lb)

  • Warranty

    Miller 3 year warranty

About Miller 25 1589 GS

The Arrow 25 is a new 100 mm fluid head designed to support the latest generation in acquisition from the film-ready HDV alternatives to the lightweight ENG camcorders providing outstanding fluid drag performance.

Arrow 25 features 5+5 selectable pan/tilt drag (plus '0') to provide repeatable light to heavy drag settings. Selectable 4 position counterbalance and 70mm sliding camera platform to balance a wide range of camera loads from 3.5-14 kg. It makes the Arrow 25 one of the most versatile camera support platforms available.

The new Sprinter II ENG tripod range features Miller Sprint-Locks, side-action leg locks. Miller's designers have updated the streamline design of the levers to bring you a more ergonomic feel to the lever-lock action. Single Stage Sprinters feature a singular Sprint-Lock side-action lever for single stage control.

Miller 25 1589 GS Features

  • Fluid Head 25 Features:
  • Payload range from 3.5-14kg
  • 5 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • Sprinter II Single Stage Alloy Tripod
  • Easily accessible, high speed dual action locks
  • Lightweight and rigid tripod construction
  • Inline carry handle
  • Tripod model suits stable Ground Spreader
  • Rapid action transport clips

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Fluid Head 25 Features:
  • Payload range from 3.5-14kg
  • 5 (plus zero) positions of fluid pan & tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling

What's in the box:

  • Miller Arrow 25 Fluid Head (1022)
  • Sprinter II Single Stage Alloy Tripod (1589G)
  • Sprinter II Ground Spreader (470)
  • Camera Plate (860)
  • Pan Handle with Handle Carrier (679)
  • Arrow Softcase (870)
  • Miller 3 Year Warranty
