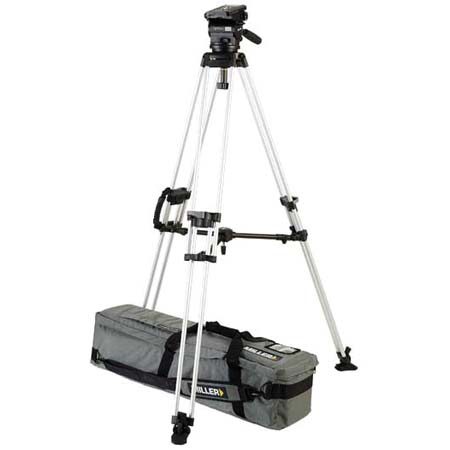

Miller 2-section Aluminum Tripod with Arrow 25 Fluid Head
See all Miller items

Miller Arrow 25 Fluid Head with Sprinter II Single Stage Alloy Tripod and Sprinter/HD Mid Spreader, Supports Up to 30 lbs

SKU: MISA251589MS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Miller 25 1589 MS Specifications

  • Fluid Head Payload Range

    3.5 to 14 kg (7-30 lbs)

  • Fluid Head Camera Plate

    1/4"+pin, 1/4"+3/8"

  • Fluid Head Mounting

    100mm ball leveling

  • Fluid Head Tilt Drag

    5 selectable fluid drag positions + 0

  • Fluid Head Pan Rotation

    360°

  • Fluid Head Pan Lock

    Calliper disc brake system

  • Fluid Head Temperature Range

    -40°C to +65°C

  • Fluid Head Pan Handle

    Fixed length

  • Fluid Head Payload Capacity

    14 kg (30.8 lb)

  • Fluid Head Height Above Bowl

    162 mm (6.4 in)

  • Fluid Head Camera Platform Type

    Quick release and sliding platform

  • Fluid Head Tilt Lock

    Calliper disc brake system

  • Fluid Head Tilt Range

    +/-90°

  • Fluid Head Pan Drag

    5 selectable fluid drag positions + 0

  • Fluid Head Counterbalance

    4 selectable positions

  • Fluid Head Illumination

    Bubble level and pan/tilt indicators

  • Tripod Tube configuration

    1 Stage

  • Tripod Tube Material

    Alloy

  • Tripod Maximum Load

    45kg (100 lb)

  • Tripod Max Height

    1430 mm (56.3 in)

  • Tripod Min Height

    635 mm (25.0 in)

  • Tripod Transport length

    840 mm (33.1 in)

  • System Transport length

    1002 mm (39.4 in)

  • System Height range

    832-1592 mm (32.8-62.8 in)

  • Weight

    Fluid Head: 3 kg (6.6 lb)
    Tripod: 3.1 kg (6.8 lb)
    System: 10.55 kg (23.2 lb)

  • Warranty

    Miller 3 year warranty

About Miller 25 1589 MS

The Arrow 25 is a new 100 mm fluid head designed to support the latest generation in acquisition from the film-ready HDV alternatives to the lightweight ENG camcorders providing outstanding fluid drag performance.

Arrow 25 features 5+5 selectable pan/tilt drag (plus '0') to provide repeatable light to heavy drag settings. Selectable 4 position counterbalance and 70mm sliding camera platform to balance a wide range of camera loads from 3.5-14 kg. It makes the Arrow 25 one of the most versatile camera support platforms available.

The new Sprinter II ENG tripod range features Miller Sprint-Locks, side-action leg locks. Miller's designers have updated the streamline design of the levers to bring you a more ergonomic feel to the lever-lock action. Single Stage Sprinters feature a singular Sprint-Lock side-action lever for single stage control.

Miller 25 1589 MS Features

  • Fluid Head 25 Features:
  • Payload range from 3.5-14kg
  • 5 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • Sprinter II Single Stage Alloy Tripod
  • Easily accessible, high speed dual action locks
  • Lightweight and rigid tripod construction
  • Tripod suits fine height adjustable mid level spreader
  • Inline carry handle
  • Forever-flat rubber foot design
  • Rapid action transport clips

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Fluid Head 25 Features:
  • Payload range from 3.5-14kg
  • 5 (plus zero) positions of fluid pan & tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling

What's in the box:

  • Miller Arrow 25 Fluid Head (1022)
  • Sprinter II Single Stage Alloy Tripod (1589)
  • Sprinter/HD Middle Spreader (990)
  • Camera Plate (860)
  • Sprinter/HD Tripod Rubber Feet (475)
  • Pan Handle with Handle Carrier (679)
  • Arrow Softcase (870)
  • Miller 3 Year Warranty
