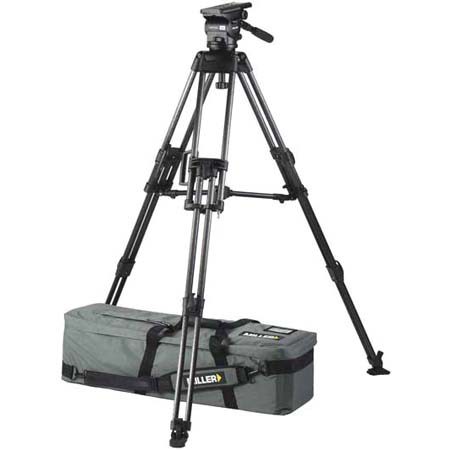

Miller 2-section Aluminum Tripod with Arrow 55 Fluid Head
See all Miller items

Miller Arrow 55 Fluid Head with Heavy Duty 2 Stage Carbon Fibre Tripod and Sprinter/HD Mid Spreader, Supports Up to 55 lbs

SKU: MISA55925MS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Miller 55 925 MS Specifications

  • Fluid Head Payload Range

    10-25 kg (22-55 lb)

  • Fluid Head Camera Plate

    1/4"+3/8"

  • Fluid Head Pan Drag

    7 selectable fluid drag positions + 0

  • Fluid Head Pan Rotation

    360°

  • Fluid Head Pan Lock

    Calliper disc brake system

  • Fluid Head Tilt Drag

    7 selectable fluid drag positions + 0

  • Fluid Head Tilt Angle

    +/- 90°

  • Fluid Head Tilt Lock

    Calliper disc brake system

  • Fluid Head Counterbalance

    4 selectable positions

  • Fluid Head Camera Platform

    Quick release camera plate with 1/4" & 3/8" screws

  • Fluid Head Sliding Range

    100 mm (+/- 50 mm)

  • Fluid Head Height Above Bowl

    162 mm

  • Fluid Head Mounting Base

    100 mm ball leveling

  • Fluid Head Illuminated Controls

    Bubble level & pan/tilt indicators

  • Fluid Head Temperature Range

    -40°C to +65°C

  • Fluid Head Pan Handle

    Telescopic

  • Tripod Type

    2 Stage

  • Tripod Material

    Carbon

  • Tripod Bowl Diameter

    100 mm

  • Tripod Payload capacity

    95 kg (210 lb)

  • Tripod Max Height

    1590 mm (62.6 in)

  • Tripod Min Height

    480 mm (18.9 in)

  • Tripod Transport Length

    750 mm (29.5 in)

  • System Transport length

    912 mm (35.9 in)

  • System Height range

    642-1752 mm (25.3-69.0 in)

  • Weight

    Fluid Head: 3.2 kg (7.1 lb)
    Tripod: 4.5 kg (9.9 lb)
    System: 12.95 kg (28.5 lb)

  • Warranty

    Miller 3 year warranty

About Miller 55 925 MS

Heavy duty performance for ENG/EFP. The Arrow 55 fluid head provides higher load capacity to suit documentary, lifestyle, HD productions and is particularly suited to long-lens applications or Studio EFP configurations. Also featuring 7 positions of pan and tilt drag; the Arrow 55 is the heavy duty performer.

HD tripods are built with the strength and torsion rigidity to take the full ENG/EFP workload - extreme climates and temperatures to -40°C. It sports rock-solid stability for telephoto lens shooting with optimum payload security when supporting studio camera configurations. Heavy Duty ENG carbon fiber tripod features extended 2-stage height range for ENG.

Miller 55 925 MS Features

  • Fluid Head 55 Features:
  • Payload ranges from 10-25kg
  • 7 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 100mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • Heavy Duty 2 Stage Carbon Fibre Tripod
  • Extended 2-stage height range for ENG
  • Tripod model suits adjustable mid level spreader
  • Split inline carry handle for balance
  • High strength 25mm cross-linked carbon fibre tubing
  • Quick set-up and easy maintenance flip locks
  • Reinforced 100mm bowl design

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Fluid Head 55 Features:
  • Payload ranges from 10-25kg
  • 7 (plus zero) positions of fluid pan & tilt drag
  • 4 position of counterbalance
  • 100mm Quick release sliding platform
  • 100 mm ball leveling

What's in the box:

  • Miller Arrow 55 Fluid Head (1028)
  • Heavy Duty 2 Stage Carbon Fibre Tripod (925)
  • Sprinter/HD Middle Spreader (990)
  • Camera Plate (860)
  • Sprinter/HD Tripod Rubber Feet (475)
  • Pan Handle with Handle Carrier (694)
  • HD Softcase (974)
  • Miller 3 Year Warranty
