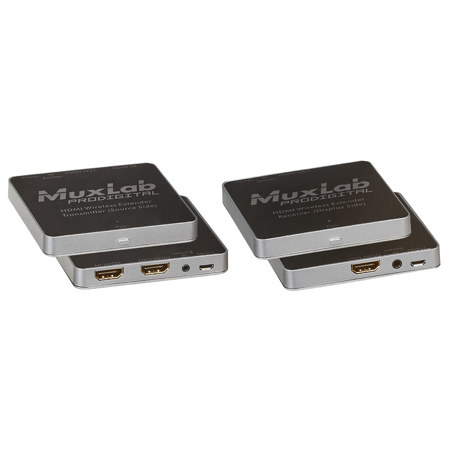

Muxlab HDMI Wireless Extender Kit, 100' Range
See all Muxlab items
New Arrival

Muxlab HDMI Wireless Extender Kit, 100' Range

SKU: ML100503 MFR: 100503
Be the first to review this itemAsk a Question
$315.00
OR
$53/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience seamless HDMI 1.3a video transmission up to 100 feet with this wireless extender kit.
  • Effortlessly connect your HDMI devices like PCs, laptops, and projectors for versatile use.
  • Enjoy reliable, high-quality video and audio with robust wireless HDMI signal performance.
  • Simplify your setup with easy pairing and a user-friendly design for quick installation.
  • Achieve flexible video distribution with point-to-point and up to 1x4 point-to-multipoint support.
  • Benefit from broad compatibility, supporting HDMI 1.3a and HDCP protocols for diverse applications.
See More Product Details
New Item?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Muxlab 100503 Specifications

  • Environment

    HDMI 1.3a (Supports the 3D feature of HDMI 1.4)

  • Devices

    HDMI DVD, plasma, projectors, monitors, TV, PC, laptops, servers.

  • Transmission

    Supports 1x1 point-to-point and up to 1x4 point-to-multipoint. Transparent to the user.

  • Bandwidth

    165 MHz

  • Signals

    HDMI 1.3a protocol, HDCP

  • Connectors

    Two (2) HDMI receptacle (for TX unit)
    One (1) HDMI receptacle (for RX unit)
    One (1) 3.5mm jack for IR sensor (for RX unit)
    One (1) 2.5mm jack for IR emitter (for TX unit)
    One (1) Mini USB Power Connector

  • Switch

    Push button for pairing

  • Latency

    Less than 500msec

  • Compression

    H.264

  • Bandwidth

    Up to 15Mbps

  • Max Transmission Distance

    1080p:
    100' (30.5m)

  • IR Frequency

    Wideband 30KHz to 60KHz

  • Power Supply

    One (1) 110-240V to 5VDC, 1A Micro USB power supply with interchangeable blades per HDMI Wireless Extender unit.

  • Power Consumption

    Transmitter: 4.5 Watt(Max)
    Receiver: 3.5 Watt (Max)

  • Temperature

    Operating: (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Plastic

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Country of Origin

    Taiwan

  • Dimensions

    3.3 x 3.3 x 0.5" (84 x 84 x 13mm)

  • Weight

    1 lbs (453.5g)

  • UPC Code

    627699505038

About Muxlab 100503

The HDMI Wireless Extender Kit (100503) allows HDMI equipment to be connected wirelessly up to 100ft (30.5m) max. with line of sight between TX & RX, at up to 1080p in a point-to-point configuration. In addition up to four Receivers may be paired with one Transmitter for point-to multipoint applications (Receivers may be purchased separately). Transmission through walls is possible with reduced distance performance depending on wall construction. The Transmitter and Receiver form a private wireless network between both units, and do not require a customer's router based wireless network to operate. The kit comes with one (1) Transmitter and one (1) Receiver as well as an IR Emitter and an IR Sensor for remote control applications.

Applications:
• Commercial and residential AV systems
• Classroom projector systems
• Digital signage
• Boardroom systems
• Home Theatre & Showroom
• Connectivity in hard to reach locations

Muxlab 100503 Features

  • Supports up to 1080p & 3D resolutions
  • HDMI 1.3a (supports the 3D feature of HDMI 1.4)
  • H.264 video compression with <500ms latency
  • Up to 100ft (30.5m), line of sight between TX & RX
  • HDMI loop-out on Transmitter
  • Forms a private wireless network from TX to RX
  • Pairing button for quick and easy setup
  • Pair up to four Receivers per Transmitter
  • Supports IR transmissions
  • LED diagnostic

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience seamless HDMI 1.3a video transmission up to 100 feet with this wireless extender kit.
  • Effortlessly connect your HDMI devices like PCs, laptops, and projectors for versatile use.
  • Enjoy reliable, high-quality video and audio with robust wireless HDMI signal performance.
  • Simplify your setup with easy pairing and a user-friendly design for quick installation.
  • Achieve flexible video distribution with point-to-point and up to 1x4 point-to-multipoint support.
  • Benefit from broad compatibility, supporting HDMI 1.3a and HDCP protocols for diverse applications.

What's in the box:

  • Transmitter
  • Receiver
  • 2x Power Adapter
  • IR Sensor Extension Cable
  • IR Emitter Extension Cable
  • Muxlab 2 Year Limited Warranty
