Muxlab 4K Ultra HD HDMI 2.0 Video Extender Kit, 164' Range
See all Muxlab items
New Arrival

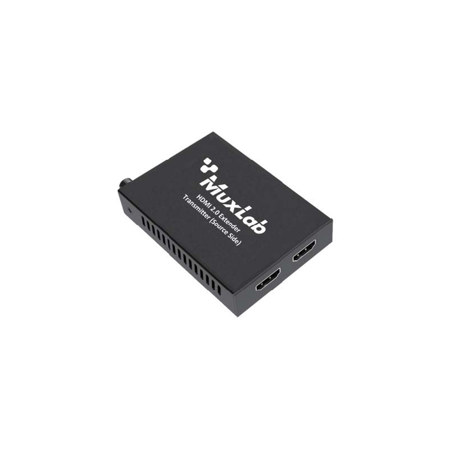

Muxlab 4K Ultra HD HDMI 2.0 Video Extender Kit, 164' Range

SKU: ML100504V2 MFR: 100504-V2
Be the first to review this itemAsk a Question
$150.00
Earn VIP Reward Points

Key Features

  • Experience stunning 4K Ultra HD resolution at 60Hz for crystal-clear video quality.
  • Extend your HDMI signal up to 164 feet, perfect for larger home or office setups.
  • Enjoy broad compatibility with HDMI 2.0 and HDCP 2.2/1.4 for seamless integration.
  • Benefit from robust ESD protection, ensuring reliable and durable performance.
  • Easily connect and manage devices with versatile input and output options for convenience.
  • Achieve superior audio with support for LPCM, Dolby, and DTS formats.
See More Product Details
New Item?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$14.99
2-Year Adorama Protect$24.99
3-Year Adorama Protect$34.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab 100504-V2 Specifications

  • Color

    Black

  • HDMI Compliance

    HDMI 2.0

  • HDCP Compliance

    HDCP 2.2 / HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolution

    Up to 4K/60Hz 4:4:4

  • Color Space

    RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4

  • Color Depth

    8/10/12-bit (1080P/60Hz, 4K/30Hz, 4K/60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K/60Hz 4:4:4)

  • HDMI Audio Formats

    LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

  • ESD Protection

    Human body model - +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

  • Transmitter

    Inputs: 1 x HDMI Type A [19-pinfe male]
    1 x SERVICE [Micro USB, Update port]
    Outputs: 1 x HDMI Type A [19-pin female]
    1 x IR OUT [3.5mm Stereo Mini-jack]
    1 x CAT OUT [RJ45, 8-pin female]

  • Receiver

    Inputs: 1 x IR IN [3.5mm Stereo Mini-jack]
    1 x CAT IN [RJ45, 8-pin female]
    1 x SERVICE [Micro USB, Update port]

    Outputs: 1 x HDMI Type A [19-pin female]

  • Housing

    Metal Enclosure

  • Power Supply

    Input: 100 - 240VAC 50/60Hz
    Output: 12VDC/1A

  • Power Consumption

    3.84W

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no condensation)

  • Country of Origin

    China

  • Dimensions

    Transmitter / Receiver: 3.5 x 2.4 x 0.7" (88 x 61 x 18mm)

  • Weight

    Transmitter: 5.6 oz (160g)
    Receiver: 5.5 oz (155g)

  • UPC Code

    627699515044

About Muxlab 100504-V2

The HDMI 2.0 Extender Kit, 50m (Model: 100504-V2) allows extend a high-definition video/audio signals and one-way IR commands up to 164ft/50m between the transmitter and receiver over a single Cat5e/6 cable. This extender supports up to 4K/60Hz 4:4:4 video resolution, 18Gbps bandwidth, HDCP 2.2., HDMI Loop-out on the Transmitter, and one-way IR pass-through enabling source control.

The extender includes one Transmitter unit and Receiver unit. The Transmitter unit is responsible for capturing HDMI input signal and carries the signal via one Cat5e/6 cable, and emitting IR control signals. The Receiver unit is responsible for receiving the HDMI signal and capturing IR control signals.

Applications
• Commercial AV Systems
• Residential AV Systems
• Collaborative PC Systems
• Digital Signage
• Educational Institutions
• Boardroom Systems

Muxlab 100504-V2 Features

  • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
  • Supports 18Gbps bandwidth
  • Supports input and output video resolution up to 4K/60Hz 4:4:4, extends distance up to 164ft /50m
  • Supports one HDMI loop output
  • Supports one-way IR pass-through
  • Supports HDR function
  • Supports PoC (Power over Cable) function, it means that either transmitter or receiver is powered supply by 12VDC/1A power adapter, the other doesn't need power supply
  • Supports automatic copy EDID function
  • Compact design for easy and flexible installation

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience stunning 4K Ultra HD resolution at 60Hz for crystal-clear video quality.
  • Extend your HDMI signal up to 164 feet, perfect for larger home or office setups.
  • Enjoy broad compatibility with HDMI 2.0 and HDCP 2.2/1.4 for seamless integration.
  • Benefit from robust ESD protection, ensuring reliable and durable performance.
  • Easily connect and manage devices with versatile input and output options for convenience.
  • Achieve superior audio with support for LPCM, Dolby, and DTS formats.

What's in the box:

  • Transmitter
  • Receiver
  • 4.9' IR Blaster Cable
  • 4.9' IR Receiver Cable
  • Power Adapter (12 VDC)
  • 4x Mounting Ear
  • Muxlab 2 Year Limited Warranty
