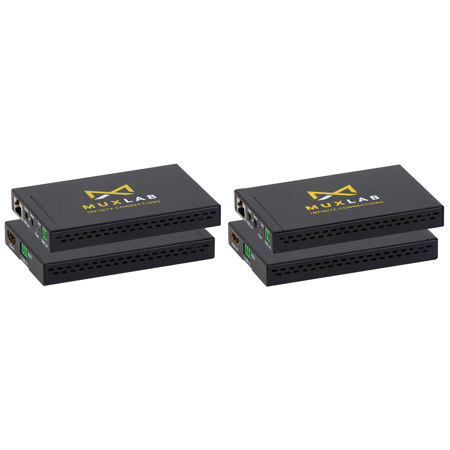

Muxlab 4K Ultra HD HDMI Over HDBaseT Extender Kit, 131' Range
See all Muxlab items
New Arrival

Muxlab 4K Ultra HD HDMI Over HDBaseT Extender Kit, 131' Range

SKU: ML100509 MFR: 100509
Be the first to review this itemAsk a Question
$274.00
OR
$46/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your 4K Ultra HD HDMI signals up to 131 feet with this reliable HDBaseT extender kit.
  • Experience superior video quality with 4K/60 (4:2:0) resolution, perfect for home theaters and presentations.
  • Enjoy seamless connectivity for DVD players, projectors, and monitors with transparent transmission.
  • Benefit from robust durability with a metal enclosure, ensuring long-lasting performance for your setup.
  • Simplify your installation with this easy-to-use kit, requiring just one Cat 5e/6 cable for the link.
  • Achieve optimal signal integrity with a 340MHz bandwidth, supporting HDMI 1.4a protocol and 3D pass-through.
See More Product Details
New Item?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Muxlab 100509 Specifications

  • Environment

    HDMI 1.4a (3D)

  • HDMI Devices

    DVD players, Blu-ray players, Media players, projectors, monitors, TVs, PCs, laptops, servers

  • Transmission

    Transparent to the user

  • Bandwidth

    Up to 340MHz

  • Signals

    HDMI 1.4a protocol.

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair
    Two (2) 3.5mm sockets for IR Sensor & Emitter

  • Cables

    One (1) Cat 5e/6 or better twisted pair cable required for link connection
    Two (2) HDMI cables required for source and sink device connections

  • Max. Distance

    4K/30 (4:4:4) and 4K/60 (4:2:0): 131' (40m) via Cat 5e/6
    1080p/60 with Deep Color and 3D pass-through: 230' (70m) via Cat 5e/6

  • RJ45 Pin Configuration

    RJ45

  • Power Supply

    One (1) 110-240VAC @ 50-60Hz, to 12VDC @ 2A power supply with interchangeable blades

  • Power Consumption

    Transmitter: 1.8 Watt
    Receiver: 3.6 Watt

  • Temperature

    Operating: 0 Degree to 40 Degree C. Storage:-20 Degree to 85 Degree C. Humidity: up to 90% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS, UL, cUL, TUV

  • Country of Origin

    China

  • Dimensions

    4.45 x 2.83 x 0.59" (11.3 x 7.2 x 1.5cm)

  • UPC Code

    627699505090

About Muxlab 100509

The HDMI Extender Kit 70m, HDBT, UHD-4K (100509) allows HDMI equipment to be connected up to 131ft (40m) @ 4K/30 (4:4:4) or 4K/60 (4:2:0) resolution, or up to 230ft (70m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. Pass-through of bi-directional IR and RS232 along with CEC is supported for control of end devices.

The HDMI Extender Kit 70m, HDBT, UHD-4K supports PoC, allowing one unit to power the other. The kit comes with one (1) transmitter, one (1) receiver, two (2) IR Emitters, and two (2) IR sensors, two (2) phoenix plugs for RS232 and one (1) 12VDC @ 2A power supply.

Applications:
• Digital signage
• Commercial AV systems
• Classroom projector systems
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Muxlab 100509 Features

  • Supports 4K/30 (4:4:4) and 4K/60 (4:2:0) at up to 131ft (40m) over Cat5e/6 UTP
  • Supports 1080p/60 with 3D pass-through at up to 230ft (70m) over Cat5e/6 UTP
  • HDCP 1.4 & 2,2 compliant
  • Supports bi-directional IR and RS232 pass-through, along with CEC to control end devices
  • Supports pass-through of all digital audio modes
  • Includes IR emitters and IR sensors (carrier-wave)
  • Supports PoC, allowing one unit to power the other

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your 4K Ultra HD HDMI signals up to 131 feet with this reliable HDBaseT extender kit.
  • Experience superior video quality with 4K/60 (4:2:0) resolution, perfect for home theaters and presentations.
  • Enjoy seamless connectivity for DVD players, projectors, and monitors with transparent transmission.
  • Benefit from robust durability with a metal enclosure, ensuring long-lasting performance for your setup.
  • Simplify your installation with this easy-to-use kit, requiring just one Cat 5e/6 cable for the link.
  • Achieve optimal signal integrity with a 340MHz bandwidth, supporting HDMI 1.4a protocol and 3D pass-through.

What's in the box:

  • Transmitter
  • Receiver
  • 2x IR Emitter
  • 2x IR Sensor
  • 2x RS-232 Euroblock Plug
  • 12 VDC 2A Power Supply
  • Muxlab 2 Year Limited Warranty
