Muxlab Video Capture and Recorder V2, Black
See all Muxlab items
New Arrival

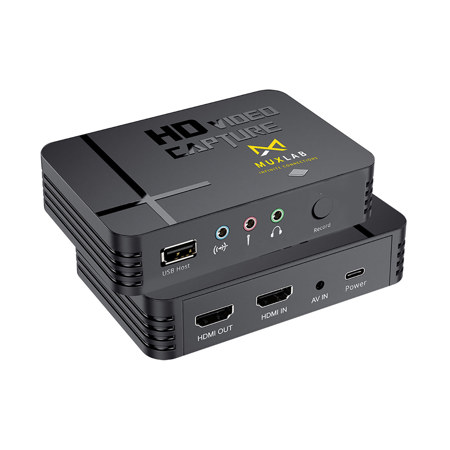

Muxlab Video Capture and Recorder V2, Black

SKU: ML100512V2 MFR: 100512-V2
Be the first to review this itemAsk a Question
$171.00
Earn VIP Reward Points

Key Features

  • Effortlessly capture high-quality video content from HDMI sources with superior resolution.
  • Record gameplay or presentations directly to a USB drive, enhancing your content creation.
  • Enjoy broad compatibility with computers, game consoles, and set-top boxes for versatile use.
  • Experience seamless recording with low latency, ensuring your captures are always in sync.
  • Easily connect microphones and headphones for crystal-clear audio integration in your videos.
  • Portable and user-friendly, this video capture device is perfect for on-the-go recording needs.
See More Product Details
New Item?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Muxlab 100512-V2 Specifications

  • Color

    Black

  • Environment

    HDMI 1.3

  • Devices

    Computers, Game Consoles, TV Set Top Boxes and other HDMI sources

  • Transmission

    Transparent to the user

  • Bandwidth

    148 MHz

  • Signals

    HDMI 1.3 protocol and HDCP 1.4

  • Connectors

    Two (2) HDMI receptacles
    One (1) USB Type A Connector
    Two (2) 3.5mm jacks for Microphone and Headphone

  • Supported HDMI Resolution

    720x480p(60), 720x576p(50), 1280x720p(50), 1280x720p(60), 1920x1080i(50),1920x1080i(60), 1920x1080p(24), 1920x1080p(25),1920x1080p(30), 1920x1080p(50), 1920x1080p(60)

  • Recording Resolution

    720x480p(60), 720x576p(50), 1280x720p(50), 1280x720p(60), 1920x1080i(50), 1920x1080i(60), 1920x1080p(24), 1920x1080p(25), 1920x1080p(30)

  • Audio Signal

    Up to16bit 48KHz dual channel (via HDMI input interface) and 3.5mm analog audio input

  • Recording Format

    Video: MP4, Audio: AAC Stereo

  • Coding Format

    H.264 (Video) and AAC (Audio)

  • Recording Quality

    Highest: 16Mbps@1080p/30

  • Maximum Storage Capacity

    USB Flash Drive (<=64G), Mobile Hard Disk (<=2TB)

  • Power Supply

    One (1) 110-240V/12VDC power supplies

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage:-4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS Flammability: 94V0

  • Country of Origin

    Taiwan

  • Dimensions

    4.8 x 2.9 x 0.6" (12.20 x 7.37 x 1.5cm)

  • Weight

    9.6 oz (272.1g)

  • UPC Code

    627699515129

About Muxlab 100512-V2

The Video Capture and Recorder allows the user to record from HDMI video sources to a USB Flash Drive or Removable Hard Drive. High definition video recording does not require a computer and can be recorded from a variety of HDMI source equipment like Computers, Game Consoles, TV Set Top Boxes, and other sources.

The maximum input resolution supported is 1080p/60 and the maximum recording resolution is 1080p/30. The unit supports microphone mixing, recording and a headphone output.

Operation is as easy as placing the device between an HDMI source and an optional display and simply pressing a button to start recording.

Applications:
• Home video recording
• Video game capture
• Security and traffic video recording
• Education/classroom systems
• Medical systems

Muxlab 100512-V2 Features

  • Capture video at up to 1080p/60 and record at up to 1080p/30
  • HDCP compliant
  • Record to external USB Flash Drives and Removeable Hard Drives for flexible storage
  • Easy setup and one button operation
  • Mic input supporting mic & source audio mixing
  • Headphone audio output
  • Record from HDMI sources such as PCs, Game Consoles, TV set Top Boxes, etc

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Effortlessly capture high-quality video content from HDMI sources with superior resolution.
  • Record gameplay or presentations directly to a USB drive, enhancing your content creation.
  • Enjoy broad compatibility with computers, game consoles, and set-top boxes for versatile use.
  • Experience seamless recording with low latency, ensuring your captures are always in sync.
  • Easily connect microphones and headphones for crystal-clear audio integration in your videos.
  • Portable and user-friendly, this video capture device is perfect for on-the-go recording needs.

What's in the box:

  • Muxlab Video Capture and Recorder V2 (Black)
  • USB-C Power Cable
  • Composite Adapter Cable
  • RCA Adapter
  • Muxlab 2 Year Limited Warranty
