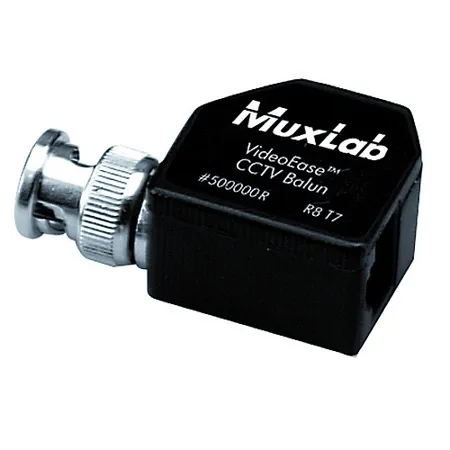

Muxlab BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun
See all Muxlab items
34% Off

Muxlab BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun

SKU: ML500000R MFR: 500000R
Be the first to review this itemAsk a Question
$23.00
$35.00
Save: $12 (34%)
Earn VIP Reward Points

Key Features

  • Extend your CCTV camera range up to 2500ft with this BNC to RJ45 balun for reliable surveillance.
  • Enjoy clear video signals with our balun, featuring less than 2dB insertion loss for optimal CCTV clarity.
  • This CCTV modular balun supports various devices, including DVRs, monitors, and IP camera servers.
  • Get superior common mode rejection (greater than 40dB at 8 MHz) for cleaner CCTV video signals.
  • Our balun is compatible with Cat 3, Cat 5, and Cat 6 cables, offering versatile CCTV connectivity options.
  • Trust in the durability of our ABS fire retardant plastic enclosure for long-lasting CCTV performance.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.39

2 Year

$3.99

3 Year

$5.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun Specifications

  • Environment

    Close-Circuit TV (CCTV) equipment for security and surveillance

  • Devices

    CCTV cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs), IP camera servers and other CCTV equipment

  • Transmission

    Transparent to the user

  • Bandwidth

    Video: DC - 8 MHz

  • Maximum Input

    1.1Vp-p

  • Insertion Loss

    Less than 2 dB per pair over the frequency range from DC - 8 MHz

  • Return Loss

    Greater than 15 dB over the frequency range from DC - 8 MHz

  • Common Mode Rejection

    Greater than 40 dB at 8 MHz

  • Maximum Distance

    Color: Cat 3 - 1200' (366 m), Cat 5 or higher - 2200' (671 m)
    (Less distance may result with DVR equipment. Typical: 1,000' (305 m) - 1,500' (457 m) via Cat5)
    B/W: Cat 3 - 1500' (457 m), Cat 5/6 - 2500' (762 m)

  • Cable Requirements

    UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305 m) at 1 MHz

    BNC: Impedance - 75 ohms at 1 MHz (RG59/U)

  • Connectors

    RJ45 Pins R8 T7 (pin compatible with 500022, 500024, 500130, 500131, 500133)

  • Impedance

    Input: 75 ohms (BNC)
    Output: 100 ohms (RJ45)

  • Temperature

    Operating: 32 - 131 deg.F (0 - 55 deg.C)
    Storage: -4 - +185 deg.F (-20 - +85 deg.C)
    Humidity: Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Regulatory

    FCC Class A, CE, RoHS

  • Dimensions

    1.75 x 0.75 x 1" / 4.45 x 1.91 x 2.54cm

  • Weight

    1.5oz / 42.52g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun

Let the BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun revolutionize your security and surveillance system. This innovative device allows the transmission of a single composite CCTV video signal via a single unshielded twisted pair (UTP), offering a more flexible and efficient cabling solution.

When used in pairs, this CCTV Modular Balun eliminates the need for costly and bulky coax cable, enabling seamless connection of CCTV equipment to any modular outlet. This feature makes it an ideal choice for CCTV installers, end users, and resellers who are looking to optimize their security systems while reducing clutter and cost.

Moreover, the BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun can be used in conjunction with Muxlab's CCTV-Audio/Video Hub (500200) for distribution to multiple monitors. This compatibility further enhances its versatility, making it a valuable addition to any CCTV setup.

In essence, the BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun is not just a product, but a solution that simplifies and streamlines your security and surveillance infrastructure.

Muxlab BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun Features

  • Up to 2500 feet (760m) in B&W via Cat 5 twisted pair
  • Up to 2200 feet (670m) in color via Cat 5 twisted pair
  • BNC coax to RJ45 modular
  • Compact design
  • Weather resistant

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your CCTV camera range up to 2500ft with this BNC to RJ45 balun for reliable surveillance.
  • Enjoy clear video signals with our balun, featuring less than 2dB insertion loss for optimal CCTV clarity.
  • This CCTV modular balun supports various devices, including DVRs, monitors, and IP camera servers.
  • Get superior common mode rejection (greater than 40dB at 8 MHz) for cleaner CCTV video signals.
  • Our balun is compatible with Cat 3, Cat 5, and Cat 6 cables, offering versatile CCTV connectivity options.
  • Trust in the durability of our ABS fire retardant plastic enclosure for long-lasting CCTV performance.

What's in the box:

  • Muxlab BNC Coax to RJ45 Pins R8 T7 CCTV Modular Balun
  • Muxlab Lifetime Warranty
