Muxlab PTZ Balun
See all Muxlab items
35% Off

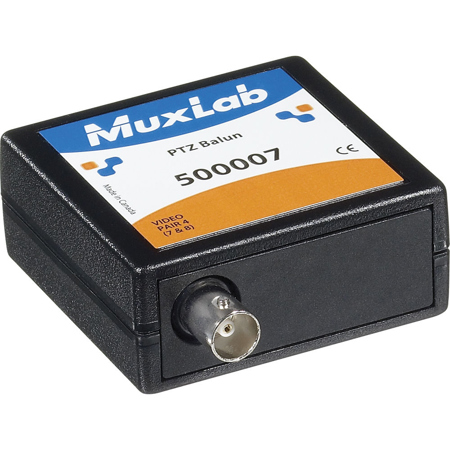

Muxlab PTZ Balun

SKU: ML500007 MFR: 500007
Be the first to review this itemAsk a Question
$42.50
$65.00
Save: $22.5 (35%)
Earn VIP Reward Points

Key Features

  • Extend your CCTV camera reach with this Muxlab PTZ Balun, up to 1400ft via Cat5e/6!
  • Enjoy seamless Pan, Tilt, Zoom control using Pelco Coaxitron & other coax systems.
  • This PTZ balun supports clear video up to 8 MHz, ensuring high-quality surveillance.
  • Easy setup with BNC and RJ45 connectors; includes a 6" coax lead for convenience.
  • Transparent transmission means this PTZ balun is simple to use with your CCTV setup.
  • Compact & lightweight PTZ balun design; easily mount with included Velcro strips.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$4.99

3 Year

$7.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab PTZ Balun Specifications

  • Environment

    CCTV equipment for security and surveillance
    NTSC,PAL, SECAM, Coaxitron

  • Devices

    CCTV cameras and Pan, Tilt, Zoom controllers supporting one video and one PTZ signal over the same coaxial cable
    Works with Pelco Coaxitron, Vicon Vicoax, Videoalarm Coaxlynx, Panasonic and other digital coax pan, tilt, and zoom control systems

  • Compatible with these Models

    Pelco Coaxitron 2000, Pelco MPT9000-PZ/ MPT9500, Pelco Spectra SD5AC

  • Transmission

    Transparent to the user

  • Bandwidth

    Video: DC to 8 MHz

  • Maximum Input

    1.1Vp-p

  • Insertion Loss

    Less than 2 dB per pair over the frequency range from DC to 8 MHz

  • Return Loss

    Greater than 15 dB over the frequency range from DC to 8 MHz

  • Common Mode Rejection

    Greater than 40 dB at 8 MHz

  • Maximum Distance Color

    Cat 3: 875' (267 m), Cat5e/6: 1250' (381 m)

  • Maximum Distance Black & White

    Cat 3: 980' (299 m), Cat5e/6: 1400' (427 m)

  • Cable - UTP

    24 gauge or lower solid copper UTP
    Impedance: 100 ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' (305 m) at 1 MHz

  • Cable - BNC

    Impedance: 75 ohms at 1 MHz (RG59/U)
    Maximum 25' (7.7 m) of coax allowed per end to end link

  • Pin Configurations

    RJ45 Pins 7 & 8 Reverse polarity sensitive.

  • Connectors

    One (1) BNC-Female and one (1) RJ45 Female
    Comes with one 6" (0.15 m) coax lead

  • Impedance

    Input: 75 ohms (BNC)
    Output: 100 ohms (RJ45)

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    Fire retardant plastic

  • Mounting Option

    Velcro

  • Dimensions

    2.40 x 2.25 x 1.00" / 6.10 x 5.72 x 2.54cm

  • Weight

    3oz / 85.05g

About Muxlab PTZ Balun

Where security and surveillance are paramount, the Muxlab PTZ Balun stands out as an innovative and high-quality solution. This durable device is designed to transmit CCTV video and up-the-coax Pan, Tilt, Zoom (PTZ) control signals over long distances using a single unshielded twisted pair (UTP) cable. This compact, user-friendly device offers a more versatile cabling solution, allowing for the integration of CCTV security and surveillance equipment into structured cabling systems.

The PTZ Balun's unique design enables CCTV PTZ devices to be relocated to any convenient modular wall outlet, extending the range and flexibility of your surveillance system. By utilizing standard UTP cabling techniques, the PTZ Balun seamlessly connects digital coax PTZ and video via a single unshielded twisted pair, enhancing the efficiency and effectiveness of your surveillance operations.

With the Muxlab PTZ Balun, you can monitor larger areas with ease, making it an essential tool for those seeking to optimize their CCTV and surveillance systems. This product is a testament to Muxlab's reputation for producing innovative, high-quality audio and video equipment.

Muxlab PTZ Balun Features

  • Steady video image while PTZ is idle
  • Up to 1400 feet via Cat 5 UTP
  • Compact design
  • Neater installation via Velcro mounting strip
  • Low return loss

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your CCTV camera reach with this Muxlab PTZ Balun, up to 1400ft via Cat5e/6!
  • Enjoy seamless Pan, Tilt, Zoom control using Pelco Coaxitron & other coax systems.
  • This PTZ balun supports clear video up to 8 MHz, ensuring high-quality surveillance.
  • Easy setup with BNC and RJ45 connectors; includes a 6" coax lead for convenience.
  • Transparent transmission means this PTZ balun is simple to use with your CCTV setup.
  • Compact & lightweight PTZ balun design; easily mount with included Velcro strips.

What's in the box:

  • Muxlab PTZ Balun
  • Muxlab Lifetime Warranty
