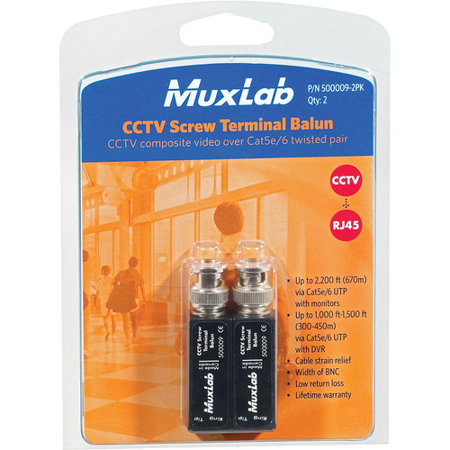

Hikvision Muxlab CCTV Screw Terminal Balun, 2 Pack
Hikvision Muxlab CCTV Screw Terminal Bal...: Picture 1 thumbnail
Hikvision Muxlab CCTV Screw Terminal Bal...: Picture 2 thumbnail
See all Hikvision items
38% Off

Hikvision CCTV Screw Terminal Balun, 2 Pack

SKU: ML5000092PK MFR: 500009-2PK
Be the first to review this itemAsk a Question
$29.95
$48.00
Save: $18.05 (38%)
Earn VIP Reward Points

Key Features

  • Ensure reliable CCTV signal transmission with these Hikvision baluns, 2-pack.
  • Extend your surveillance camera range up to 2200ft with Cat5/6 cable balun.
  • These CCTV baluns support various security setups, DVRs, and IP cameras.
  • Enjoy easy installation with screw terminals for quick CCTV cable connections.
  • Durable ABS housing protects these baluns, ensuring long-lasting CCTV use.
  • These baluns offer broad compatibility for seamless integration with CCTV systems.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.09

2 Year

$5.49

3 Year

$8.49

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hikvision Muxlab CCTV Screw Terminal Balun, 2 Pack Specifications

  • Environment

    Close-Circuit TV (CCTV) equipment for security and surveillance

  • Devices

    CCTV cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs), IP camera servers and other CCTV equipment

  • Transmission

    Transparent to the user

  • Bandwidth

    Video: DC to 8 MHz

  • Maximum Input

    1.1Vp-p

  • Insertion Loss

    Less than 2 dB per pair over the frequency range from DC to 8 MHz

  • Return Loss

    Greater than 15 dB over the frequency range from DC to 8 MHz

  • Common Mode Rejection

    Greater than 40 dB at 8 MHz

  • Maximum Distance

    Color: Cat 3 - 1200' (365m); Cat 5 or higher - 2200' (670m)

    Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)

    B/W: Cat 3 -1500' (457m); Cat 5/6 - 2500' (762m)

  • Cable Requirements

    UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHzBNC: Impedance: 75 ohms at 1 MHz (RG59/U)

  • Connectors

    Two (2) screw terminals

  • Impedance

    Input: 75 ohms (BNC)
    Output: 100 ohms (RJ45)

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Regulatory

    FCC Class A, CE, RoHS

  • Package Quantity

    2 Pack

  • Dimensions

    Each: 2.30 x 0.62 x 0.62" (5.8 x 1.57 x 1.57cm)

  • Weight

    Each: 1.5 oz (42.5g)

  • UPC Code

    627699900093

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Hikvision Muxlab CCTV Screw Terminal Balun, 2 Pack

The CCTV Screw Terminal Balun allows a single composite CCTV video signal to be transmitted via a single unshielded twisted pair (UTP) cable for more versatile security and surveillance cabling. Used in pairs, the CCTV Balun eliminates costly and bulky coax cable, allowing CCTV equipment to be connected via cost-effective twisted pair. The CCTV Balun may also be used in conjunction with Muxlab's CCTV-Audio/Video Hub(500200) for video distribution to multiple monitors.

Hikvision Muxlab CCTV Screw Terminal Balun, 2 Pack Features

  • Up to 2500 feet (760m) in B&W via Cat 5 twisted pair
  • Up to 2200 feet (670m) in color via Cat 5 twisted pair
  • Small enough to fit side-by-side on any video multiplexer
  • BNC coax to screw terminals
  • Polarity identification label
  • Cable strain relief
  • Weather resistant

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure reliable CCTV signal transmission with these Hikvision baluns, 2-pack.
  • Extend your surveillance camera range up to 2200ft with Cat5/6 cable balun.
  • These CCTV baluns support various security setups, DVRs, and IP cameras.
  • Enjoy easy installation with screw terminals for quick CCTV cable connections.
  • Durable ABS housing protects these baluns, ensuring long-lasting CCTV use.
  • These baluns offer broad compatibility for seamless integration with CCTV systems.

What's in the box:

  • Muxlab 2x CCTV Screw Terminal Balun
  • Muxlab Lifetime Warranty
